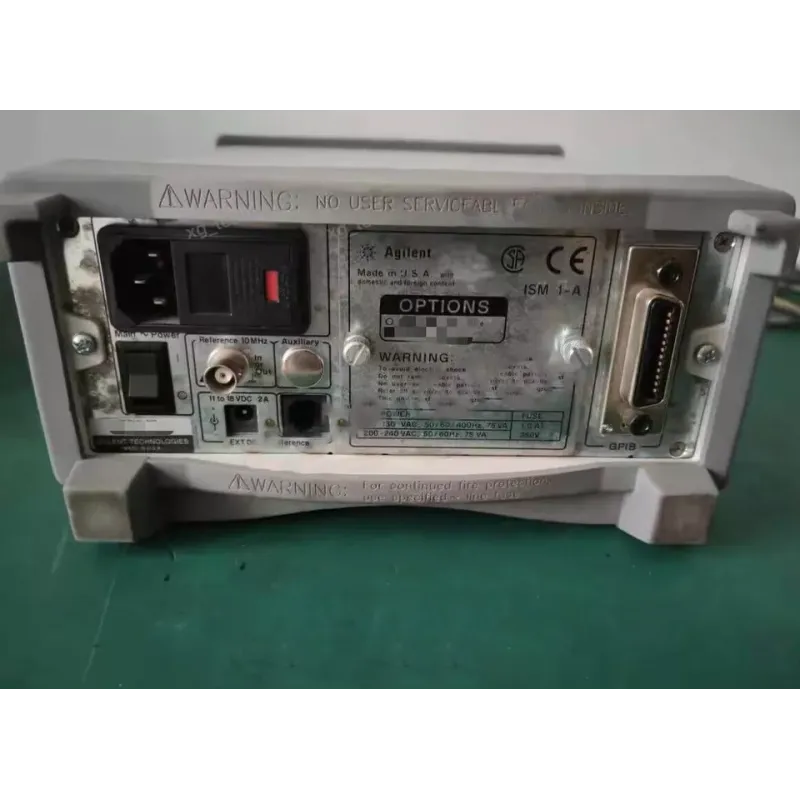

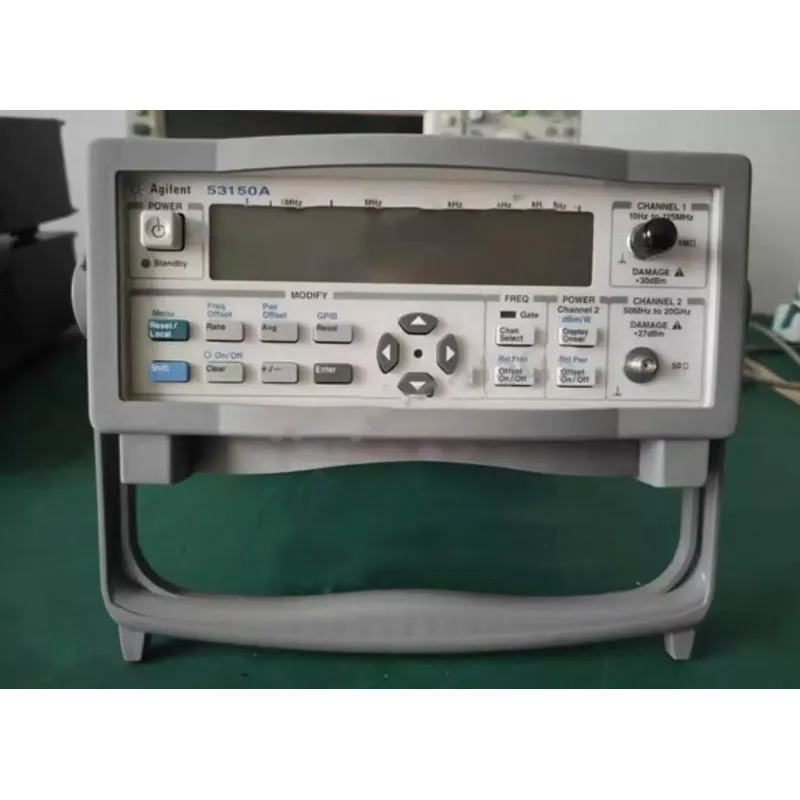

Description of Agilent 53150A Microwave Frequency Counter

The Agilent 53150A is a microwave frequency counter designed for precise frequency measurement in the range of 50 MHz to 20 GHz. It is portable and robust, making it convenient for use in both laboratory and field environments.

Main Features:

• Frequency Range: 50 MHz – 20 GHz
• Resolution: 1 Hz
• Measurement Time: 200 ms
• Input Impedance: 50 Ohms
• Input Signal Level:
  • Minimum: -27 dBm
  • Maximum: +21 dBm
• Measurement Accuracy: ±(residual frequency × measurement time)
• Display: Built-in LCD with backlight
• Interfaces: GPIB, RS-232
• Power Supply: Built-in battery or AC adapter
• Dimensions: 212 mm × 88 mm × 348 mm
• Weight: Approximately 3.6 kg

Additional Information:

The device supports various measurement modes, including single, continuous, and averaged measurements, making it adaptable for different tasks. Additionally, the GPIB and RS-232 interfaces provide easy integration with other devices and automation systems.

With these features, the Agilent 53150A is suitable for telecommunications, RF device development and testing, as well as scientific research requiring high-precision microwave frequency measurements.
