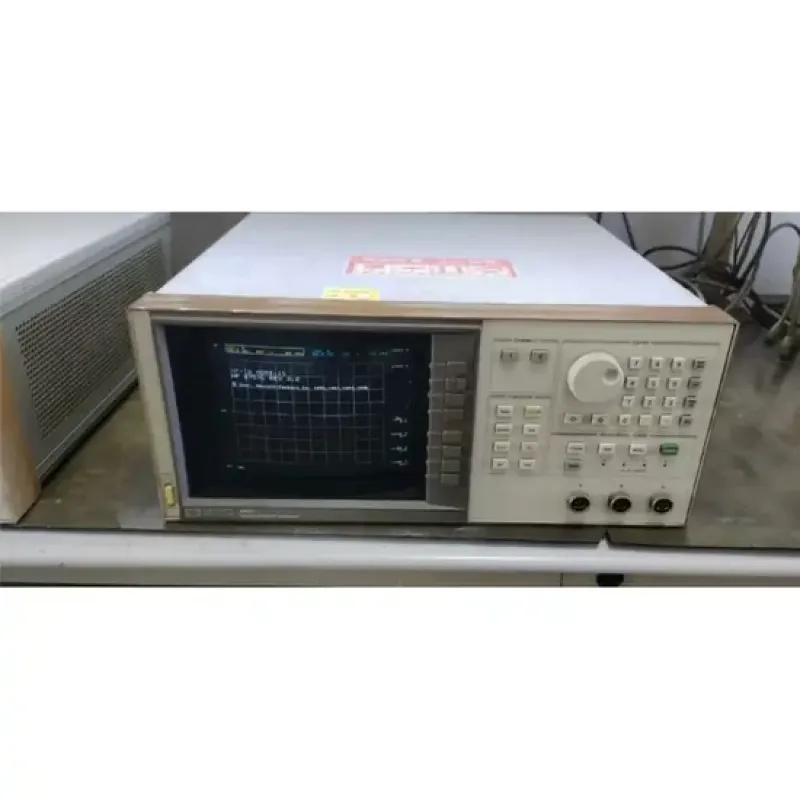

Agilent 8757C - Scalar Network Analyzer

The Agilent 8757C is a scalar network analyzer designed for precise and efficient measurement of transmission and reflection characteristics of RF components across a frequency range from 10 MHz to 110 GHz.

Key Features:

• Frequency Range: 10 MHz to 110 GHz, enabling comprehensive analysis of various RF and microwave devices.
• Dynamic Range: Offers a dynamic range of up to 76 dB, facilitating accurate measurements of both high and low signal levels.
• Measurement Capabilities: Capable of measuring insertion loss, gain, return loss, standing wave ratio (SWR), and power swiftly and accurately.
• Display: Equipped with a precision color display that supports various display modes, including log magnitude, linear magnitude, SWR, and power, enhancing data visualization.
• Detector Inputs: Standard configuration includes three detector inputs, with an optional fourth detector input available (Option 001), providing flexibility in measurement setups.
• Power Calibration: Supports accurate swept power measurements, essential for characterizing the performance of amplifiers and other active devices.
• Interfaces: Features a system interface for seamless integration with compatible signal sources and peripherals, enabling automated measurement sequences and data collection.



The Agilent 8757C, when combined with high-performance detectors, directional bridges, and compatible signal sources, forms a comprehensive measurement system suitable for applications in R&D, manufacturing, and quality assurance of RF and microwave components.
