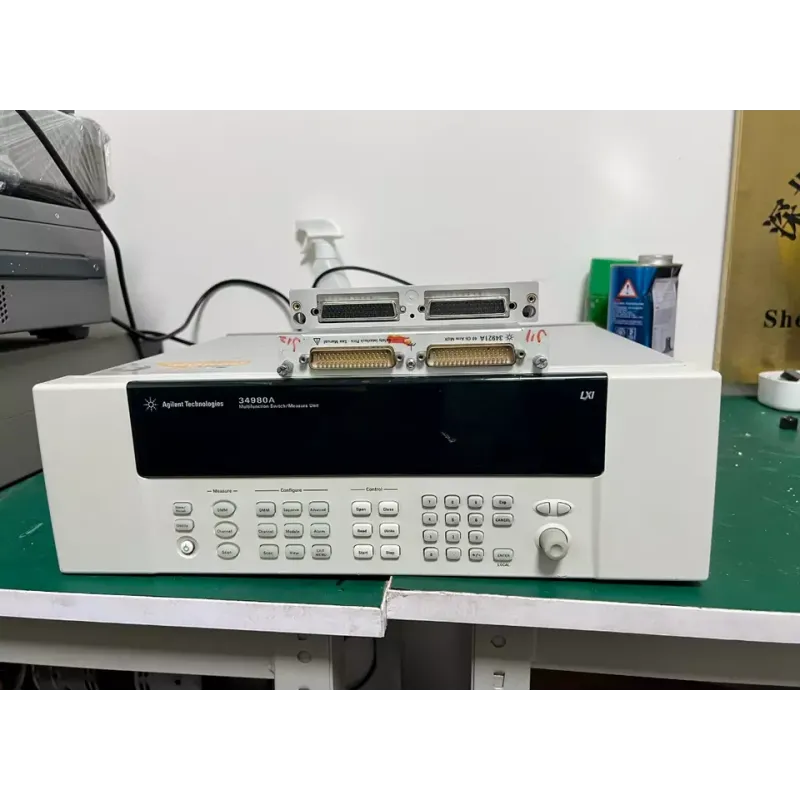

Agilent Technologies LXI 34980A Multifunction Switch/Measure Unit

The Agilent (Keysight) 34980A is a multifunction switch/measure unit designed for automation in test systems. It combines various measurement and switching functions in one device, greatly simplifying and speeding up the testing process.

Main Specifications

• Instrument Type: Multifunction Switch/Measure Unit
• Connectivity: Supports LXI, GPIB, USB, and RS-232 interfaces
• Modular Design: Configurable with various modules for both measurement and switching functions
• Number of Channels: Depends on the configuration (can be configured for dozens of channels)
• Software: Includes tools for test automation and remote control via Ethernet
• Application: Used in automated test systems for signal switching and real-time measurements

Key Features

• High versatility: Combines measurement and switching functions in a single unit
• Supports remote control and integration into automated test systems
• Flexible configuration: Various modules can be selected to meet specific testing requirements
• Intuitive interface with advanced programming options for creating automated test scenarios

Applications

• Automating laboratory tests and component evaluations
• Industrial testing and quality control
• Calibration and diagnostics of electronic equipment
• Research and development projects

The Agilent 34980A Multifunction Switch/Measure Unit is a versatile and flexible instrument that provides reliable switching and accurate measurements in automated test systems. Its modular design and support for multiple interfaces make it an excellent choice for professionals involved in testing, calibration, and automation.
