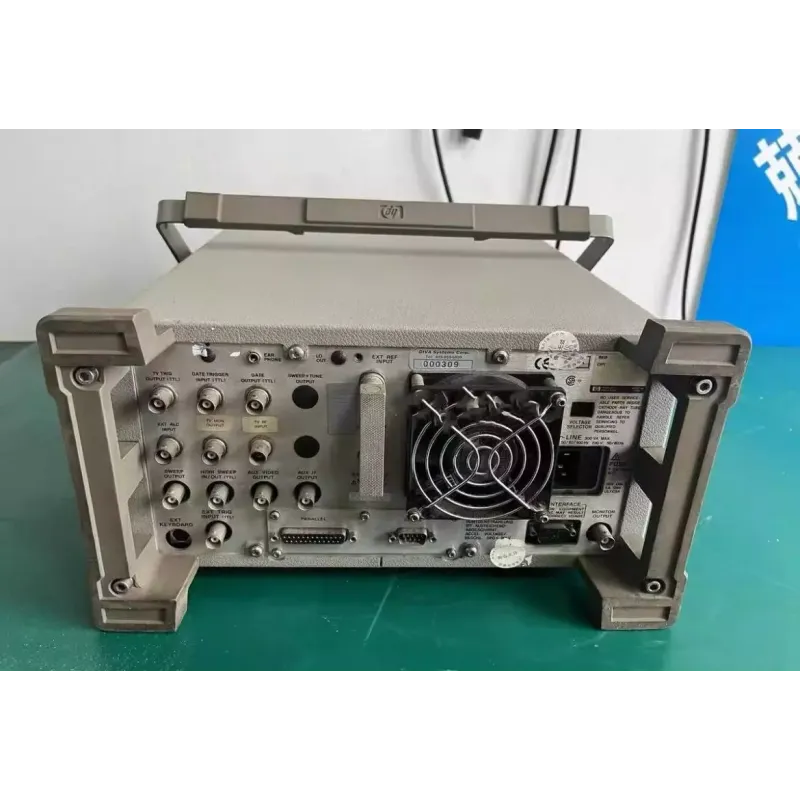

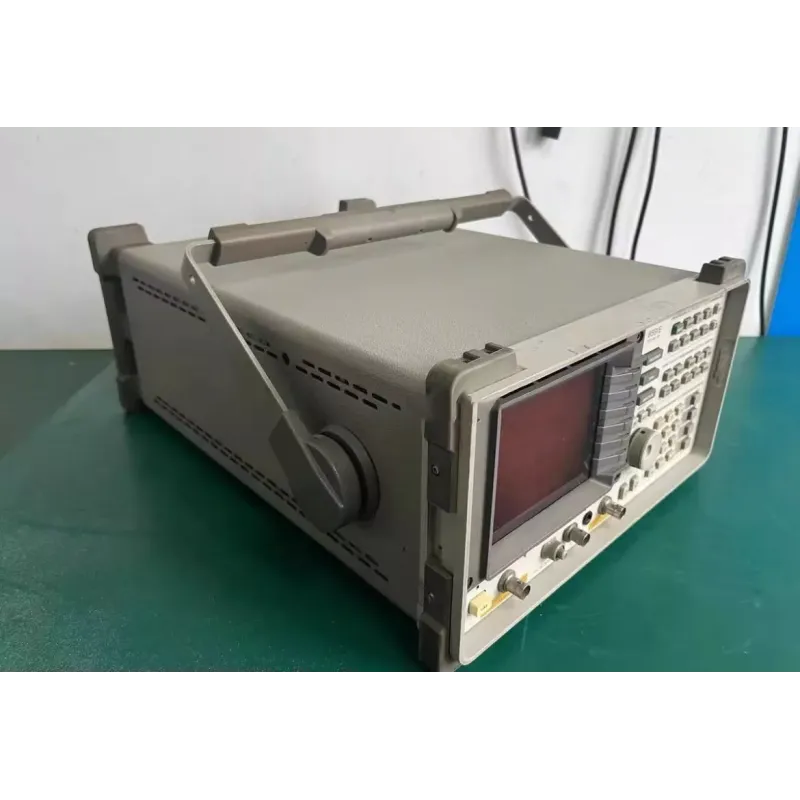

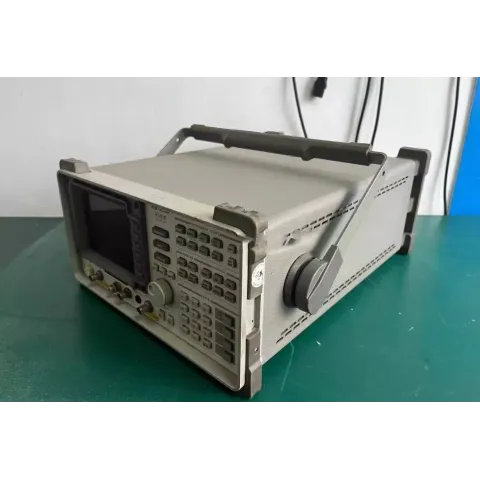

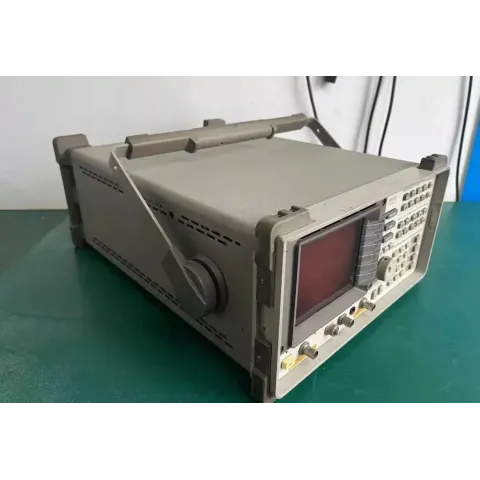

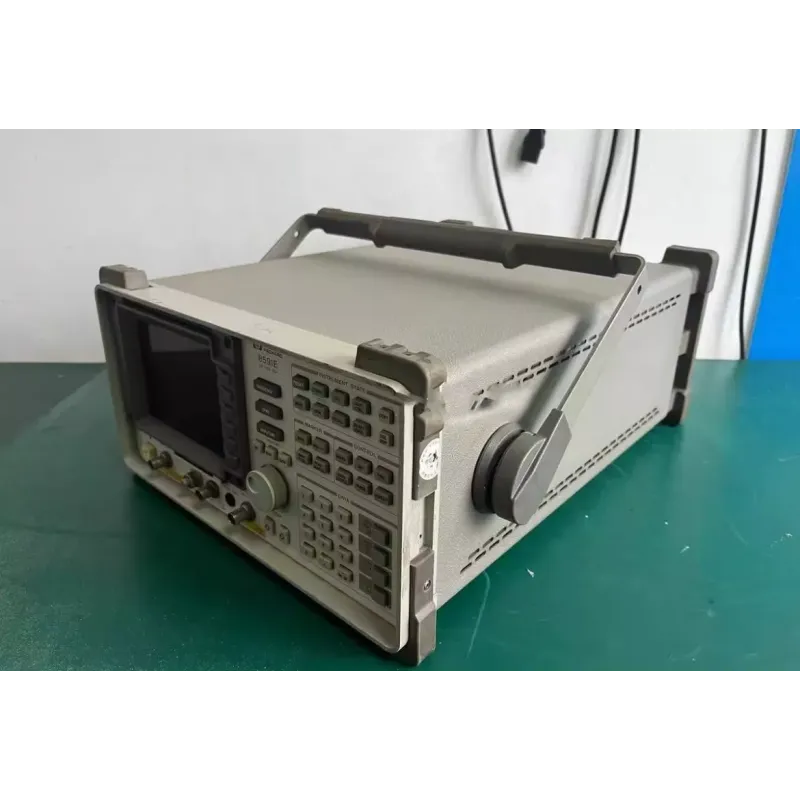

HP/Agilent 8591E Spectrum Analyzer with Tracking Generator

The HP/Agilent 8591E spectrum analyzer with a tracking generator is a portable instrument designed for measuring and analyzing signals in the frequency range from 9 kHz to 1.8 GHz. It is widely used in various fields, including cable television, broadcasting, component testing, electromagnetic compatibility, and wireless communications.

Main Specifications:

• Frequency Range: 9 kHz – 1.8 GHz
• Tracking Generator: The built-in tracking generator simplifies the measurement of component and system parameters, allowing for amplitude-frequency characteristic analysis.
• Resolution Bandwidth (RBW): From 1 kHz to 3 MHz with step increments of 1, 3, 10
• Video Bandwidth (VBW): From 30 Hz to 1 MHz
• Noise Floor: From –130 dBm to –115 dBm depending on frequency and settings
• Connectivity Interfaces: USB, GPIB, LAN, parallel interface, and XGA output for integration into various measurement systems
