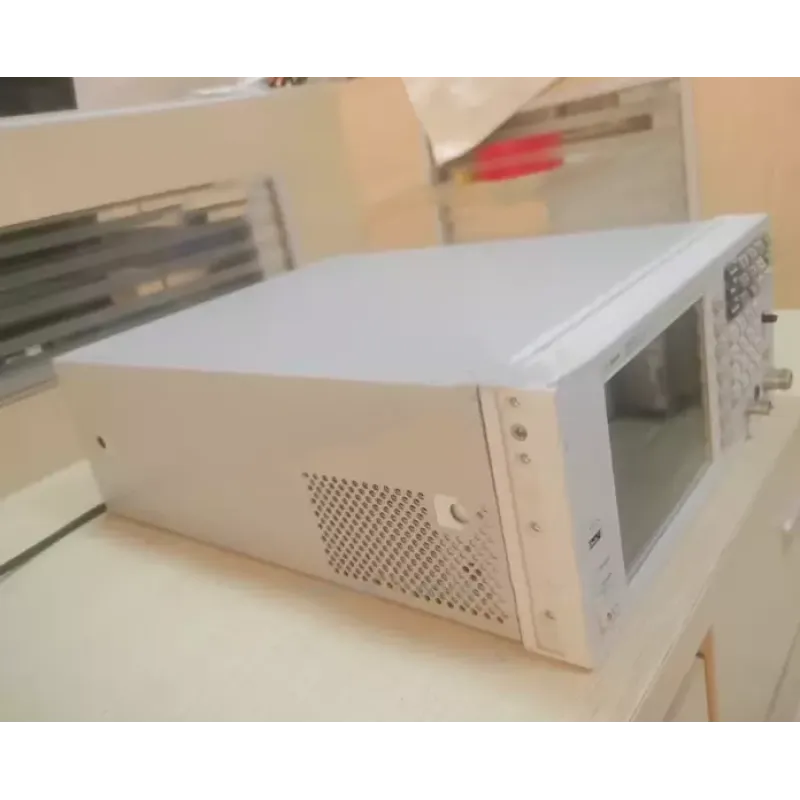

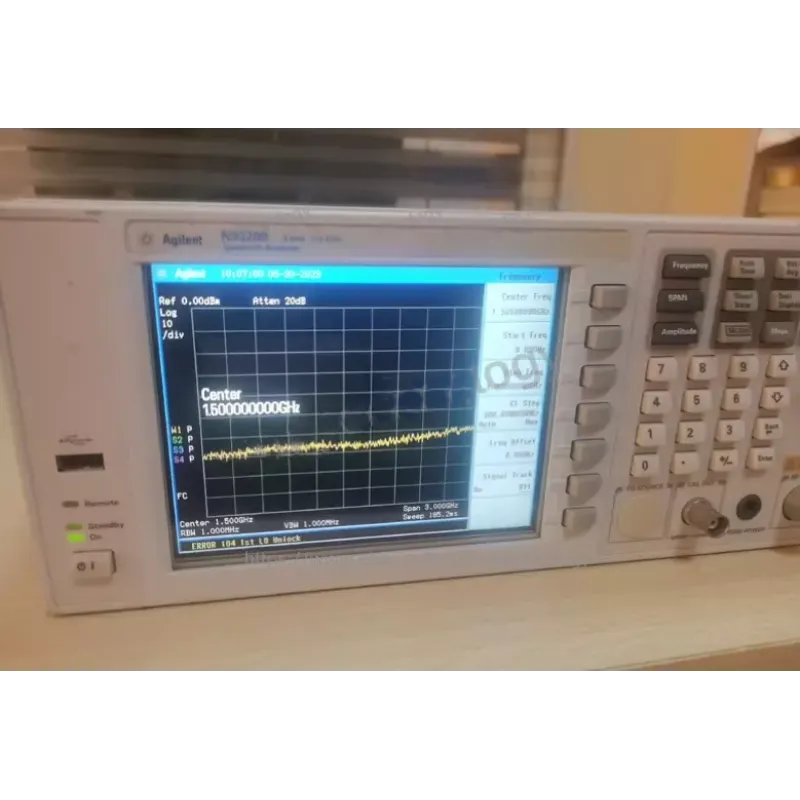

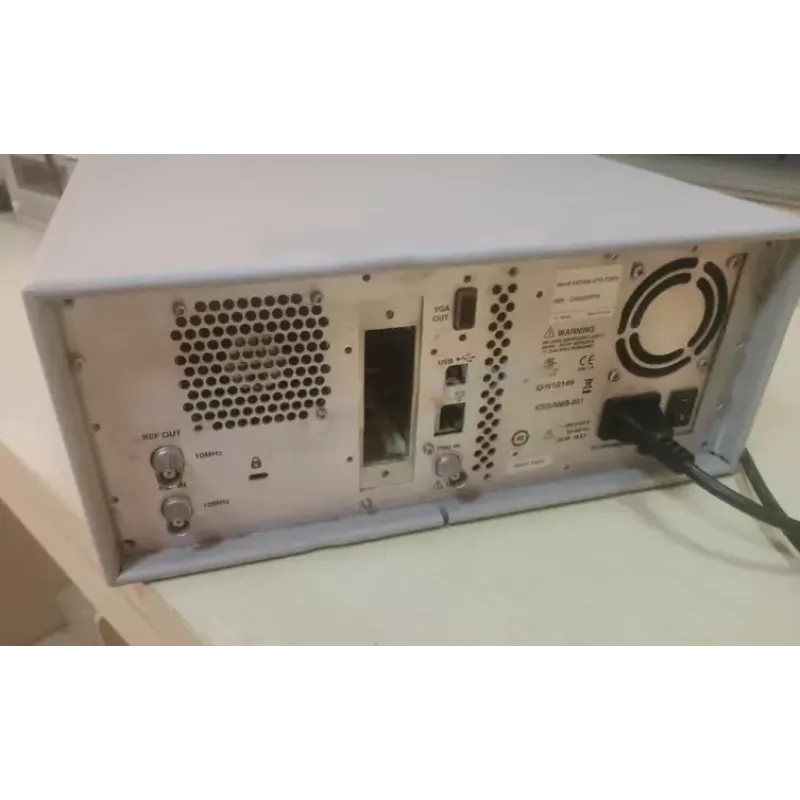

HP/Agilent/Keysight N9320B Spectrum Analyzer

The HP/Agilent/Keysight N9320B Spectrum Analyzer is a basic instrument designed for measuring and analyzing the spectral characteristics of signals in the frequency range from 9 kHz to 3 GHz. It balances performance and ease of use, making it suitable for various applications in the development, testing, and manufacturing of electronic equipment.

Key Specifications:

• Frequency Range: 9 kHz to 3 GHz.
• Resolution Bandwidth (RBW): 10 Hz to 1 MHz.
• Displayed Average Noise Level (DANL): Up to -130 dBm, depending on settings.
• Phase Noise: -88 dBc/Hz at 10 kHz offset from a 1 GHz carrier.
• Signal Level Accuracy: ±1.5 dB.
• Input Attenuator: 0 to 70 dB in 1 dB steps.
• Maximum Input Signal Level: +30 dBm (1 W) for frequencies above 10 MHz.

Features:

• High Measurement Speed: Capable of performing up to 100 measurements per second in manual mode.
• Digital Filters: Provide faster sweeps compared to analog filters.
• RMS Detector: Enables stable and reproducible results, even when analyzing complex modulated signals.
• Expansion Options: Includes the option to add a tracking generator (TG3) for transmission and reflection measurements, and a preamplifier (PA3) to enhance sensitivity.

Applications:

The N9320B is suitable for a wide range of tasks, including:

• Testing and tuning RF devices.
• Signal spectrum analysis in laboratory conditions.
• Component and system testing in production processes.
• Educational purposes in academic institutions.
