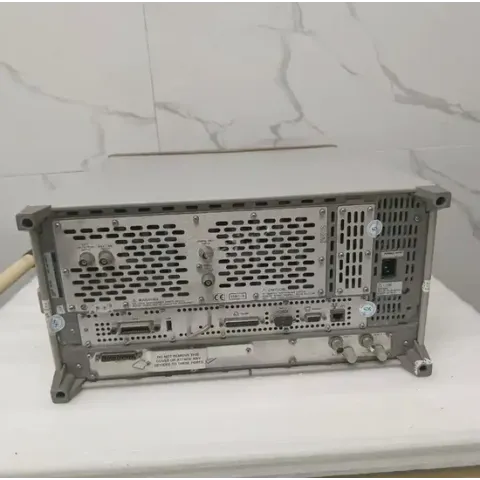

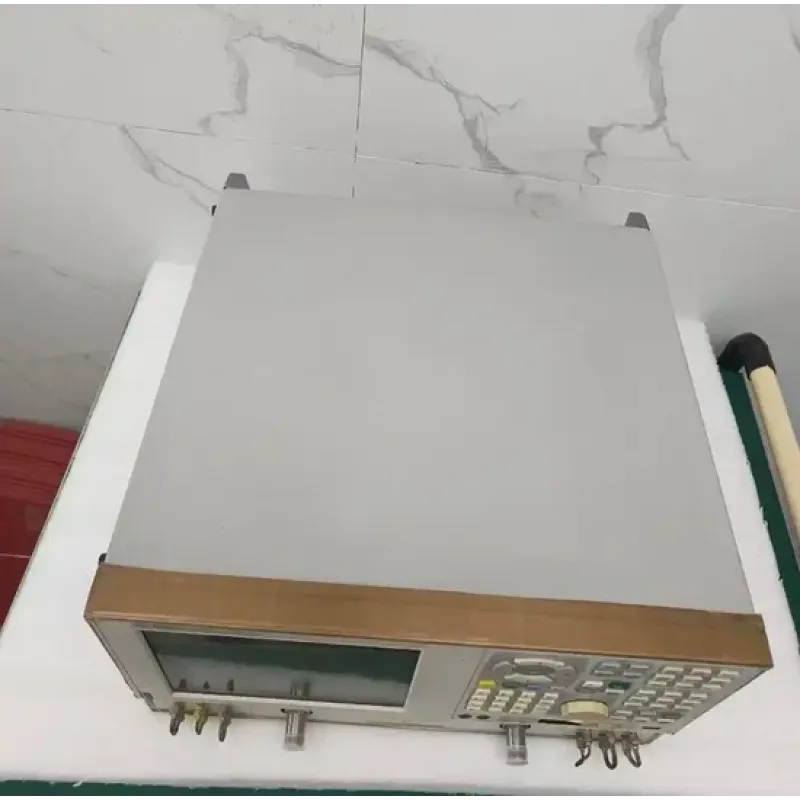

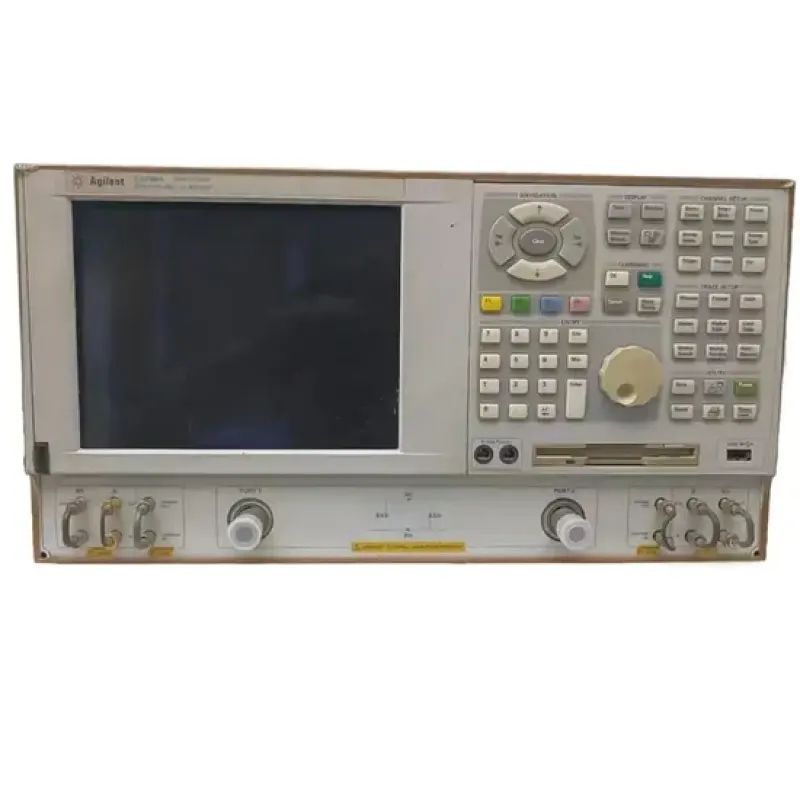

Agilent E8358A - Network Analyzer 300 kHz - 9 GHz

Agilent E8358A is a high-performance vector network analyzer from the PNA series designed for precise measurements of RF components and devices in the frequency range from 300 kHz to 9 GHz.

Main Features:

• Frequency Range: 300 kHz – 9 GHz.
• Dynamic Range: 128 dB at the test port; up to 143 dB with direct receiver access.
• Sweep Speed: 35 µs/point.
• Built-in Features: Standard source attenuators, built-in bias-tees for active device testing, direct receiver access.
• Calibration: Supports TRL/LRM calibration for in-fixture or on-wafer measurements.
• Programming: Supports COM/DCOM and SCPI commands for automation.
• Operating System: Windows 2000™, compatible with various software applications.



Applications:

The E8358A is ideal for testing various RF components, including:

• Filters
• Amplifiers
• Antennas
• Cables



Its high performance and accuracy make it popular in research labs and production environments.
