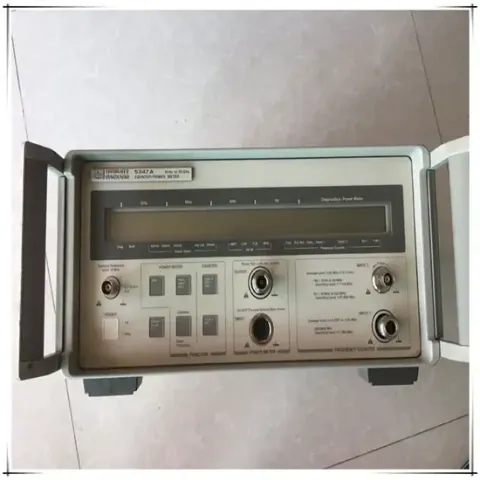

Agilent 5347A: Frequency and Power Meter

The Agilent 5347A is a high-precision microwave frequency counter and power meter capable of measuring frequencies from 10 Hz to 20 GHz and power from -70 dBm to +20 dBm, depending on the sensor used.

This device combines the functions of a frequency counter and power meter, making it a versatile tool for various applications in RF and microwave measurements. It ensures high accuracy and resolution comparable to standalone instruments.

The device has two inputs:

• Input 1: Frequency range from 500 MHz to 20 GHz, sensitivity -32 dBm (typically -35 dBm) for 500 MHz – 12.4 GHz and -27 dBm (typically -32 dBm) for 12.4 GHz – 20 GHz.
• Input 2: Frequency range from 10 Hz to 525 MHz, sensitivity 25 mV RMS (typically 15 mV RMS).



The frequency counter resolution can be set to 1 Hz or 10 kHz, allowing the instrument to be adapted to specific measurement requirements. Additionally, the 5347A supports automatic averaging selection for the chosen range, enhancing measurement accuracy.

With its robust and lightweight construction, as well as an optional internal battery providing up to two hours of operation, the Agilent 5347A is an excellent choice for portable measurements.
