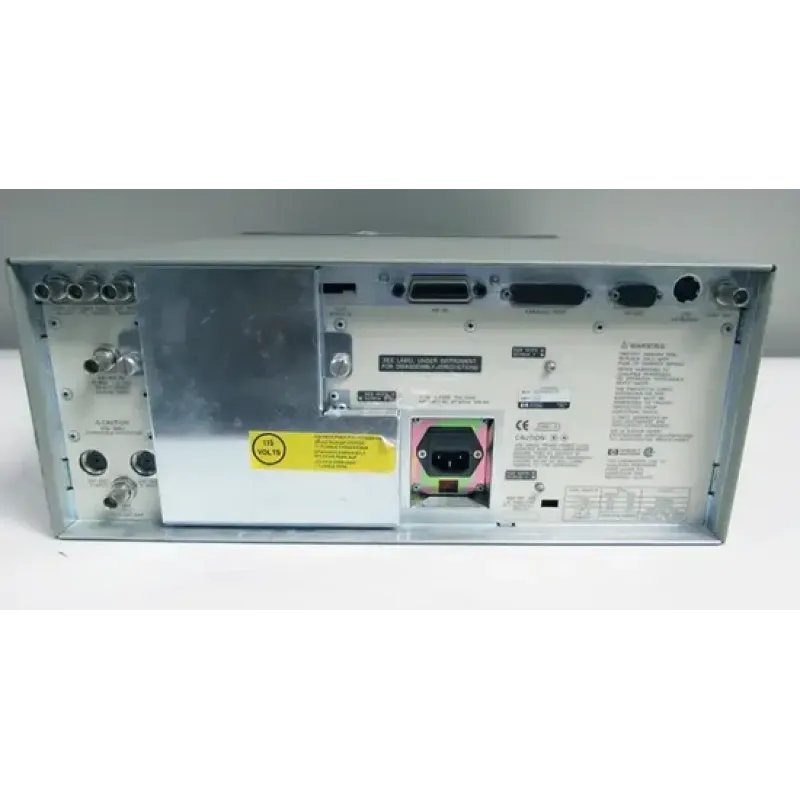

Agilent 8713B - Network Analyzer

Agilent 8713B Network Analyzer is designed for fast and accurate testing of RF components in the frequency range of 300 kHz to 3 GHz.

Main Features:

• Frequency Range: 300 kHz – 3 GHz.
• Dynamic Range: 100 dB.
• Sweep Speed: 50 ms/sweep.
• Source Resolution: 1 Hz.
• Built-in Test Set: Transmission/Reflection.
• Internal Disk Drive: 3.5-inch (LIF/DOS).



Features:

• Measurement of transmission and reflection parameters, including transmission coefficients, return loss, VSWR, and power.
• Capability to display two independent measurements, such as reflection and transmission, on two channels.
• Support for narrowband and wideband detection for testing both linear and nonlinear components.
