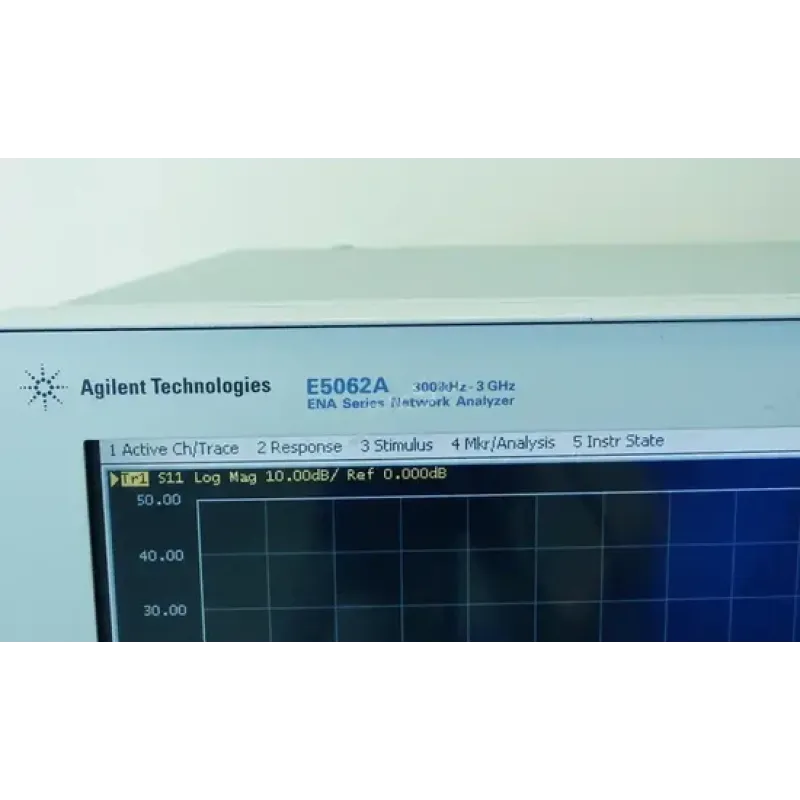

Agilent E5062A - Vector Network Analyzer

Agilent E5062A is a vector network analyzer designed for measuring S-parameters in the frequency range from 300 kHz to 3 GHz.

Main Features:

• Frequency Range: 300 kHz – 3 GHz.
• Dynamic Range: 120 dB.
• Test Set Types:
  • T/R Test Set: Provides basic transmission and reflection coefficient measurements.
  • S-Parameter Test Set: Enables accurate two-port measurements with full calibration.
• Port Impedance: 50 Ω or 75 Ω, depending on the selected option.
• Trace Noise: 0.005 dB RMS, ensuring high measurement accuracy.
• Built-in Support for Visual Basic for Applications (VBA): Allows for automated measurements and data processing.



Agilent E5062A is suitable for use in research and manufacturing environments, providing reliable and accurate S-parameter measurements.
