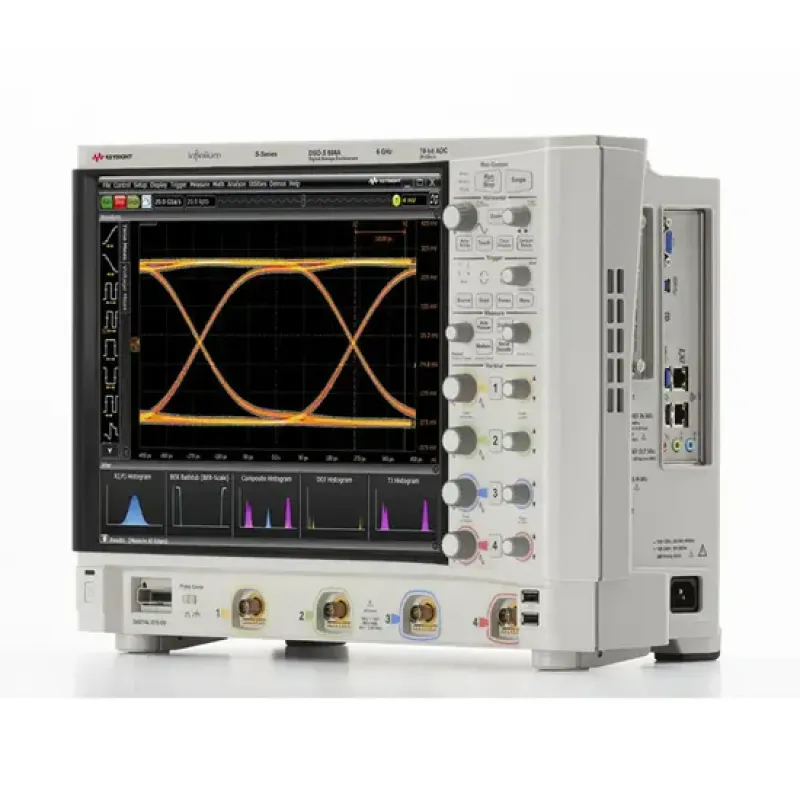

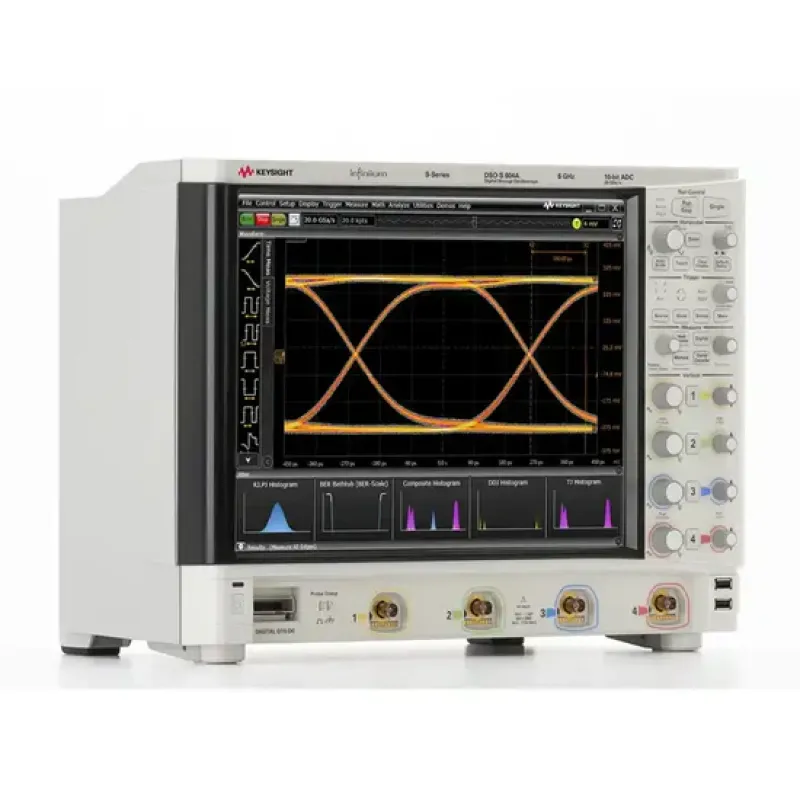

Keysight DSOS604A - Digital Oscilloscope

Keysight DSOS604A is a digital oscilloscope from the Infiniium S series, designed for high-precision analysis and debugging of digital systems.

Main Features:

• Bandwidth: 6 GHz (expandable).
• Number of Analog Channels: 4.
• Maximum Sampling Rate: 20 GS/s when using half the channels; 10 GS/s when using all channels.
• Memory Depth: 100 Mpts per channel.
• ADC Resolution: 10 bits.
• Effective Number of Bits (ENOB): more than 8 bits.

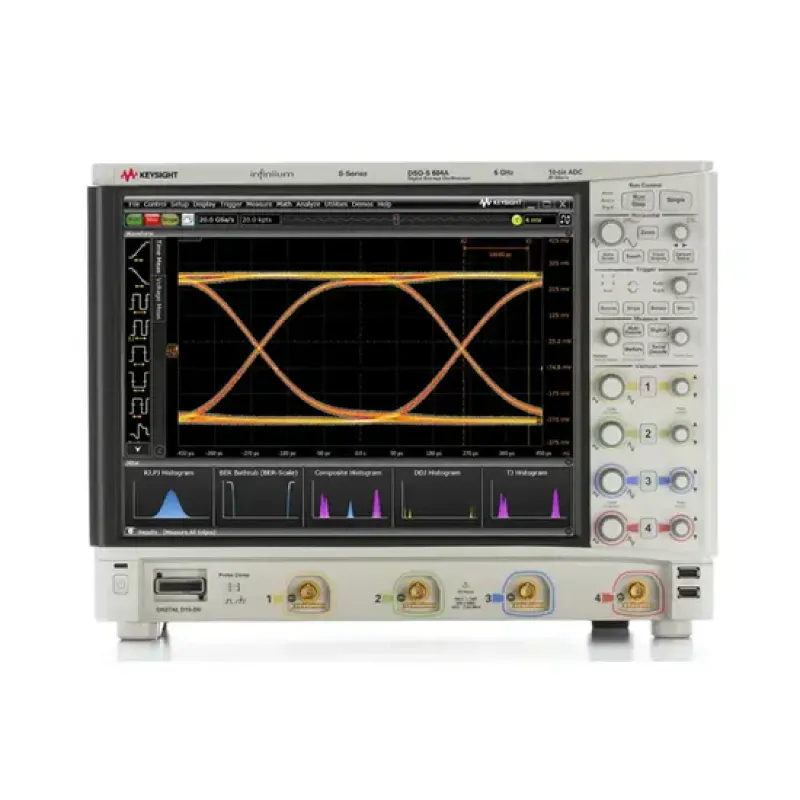

• Display: 15-inch capacitive touchscreen with multitouch support.
• Interfaces: USB 3.0 and Ethernet for fast data transfer.



Additional Features:

• Low-noise input stages: ensure high measurement accuracy.
• Solid-state drive: enables fast boot and reliable system operation.

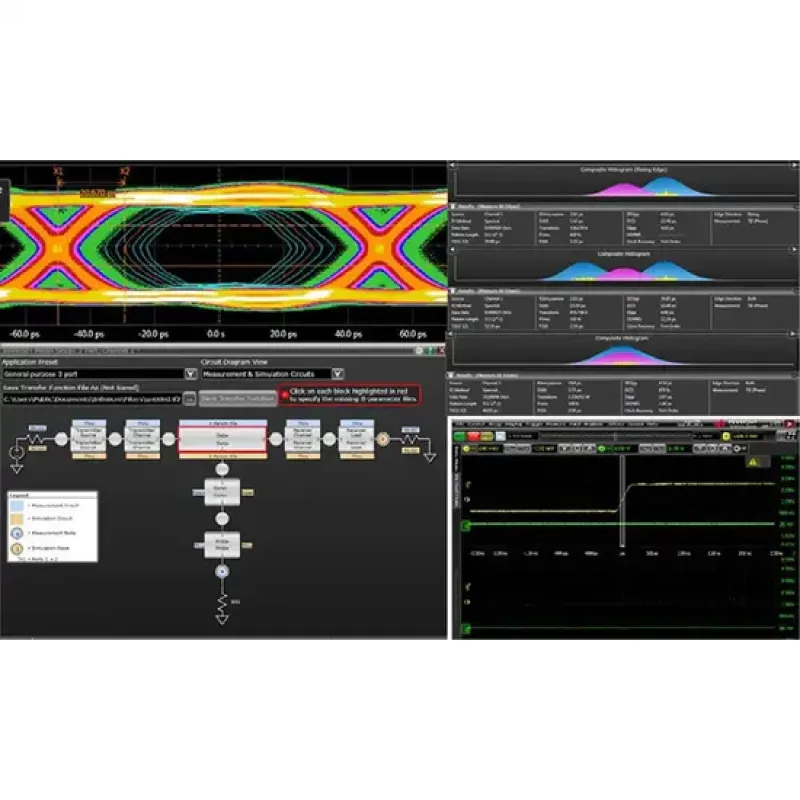

• Wide range of options: for protocol decoding, compliance testing, and signal analysis.
• Supports various probe types: voltage, current, differential, single-ended, active, and passive probes.



Package Includes:

• Four N2873A passive probes with a 500 MHz bandwidth.
• Probe accessory kit.
• Keysight I/O Libraries Suite software.
• Localized power cord and front panel protective cover.
• 8 GHz BNC calibration cable.
• Keyboard and mouse.
• User manual and programmer's guide.
