Keysight DSOV134A - Digital Oscilloscope

Keysight DSOV134A is a digital oscilloscope from the Infiniium V series, designed for high-precision analysis and debugging of high-speed digital systems.

Main Features:

• Bandwidth: 13 GHz (expandable).
• Number of Analog Channels: 4.
• Maximum Sampling Rate: 80 GS/s when using 2 channels; 40 GS/s when using all 4 channels.
• Memory Depth: 50 Mpts standard, expandable up to 2 Gpts.
• ADC Resolution: 8 bits, expandable to 12 bits in high-resolution mode or with averaging.
• Noise Level: 0.27 mV RMS at 5 mV/div.
• Jitter Measurement Threshold: 100 fs.
• Effective Number of Bits (ENOB): more than 5.5 bits.

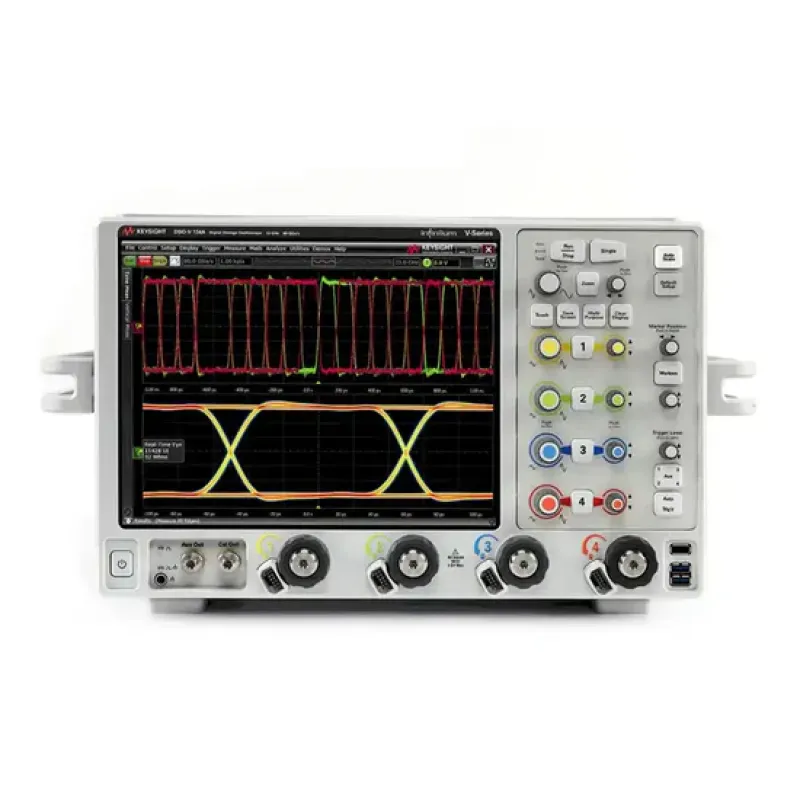

• Display: 15-inch capacitive touchscreen with multitouch support.
• Interfaces: USB 3.0 and Ethernet for fast data transfer.



Additional Features:

• Low-noise input stages: ensure high measurement accuracy.
• Hardware serial trigger: supports data rates up to 12.5 Gbps with sequence lengths up to 160 bits.
• Wide range of options: for protocol decoding, compliance testing, and signal analysis.
• Supports various probe types: voltage, current, differential, single-ended, active, and passive probes.



Package Includes:

• Four passive probes with 500 MHz bandwidth.
• Probe accessory kit.
• Keysight I/O Libraries Suite software.
• Localized power cord and front panel protective cover.
• BNC calibration cable.
• Keyboard and mouse.
• User manual and programmer's guide.
