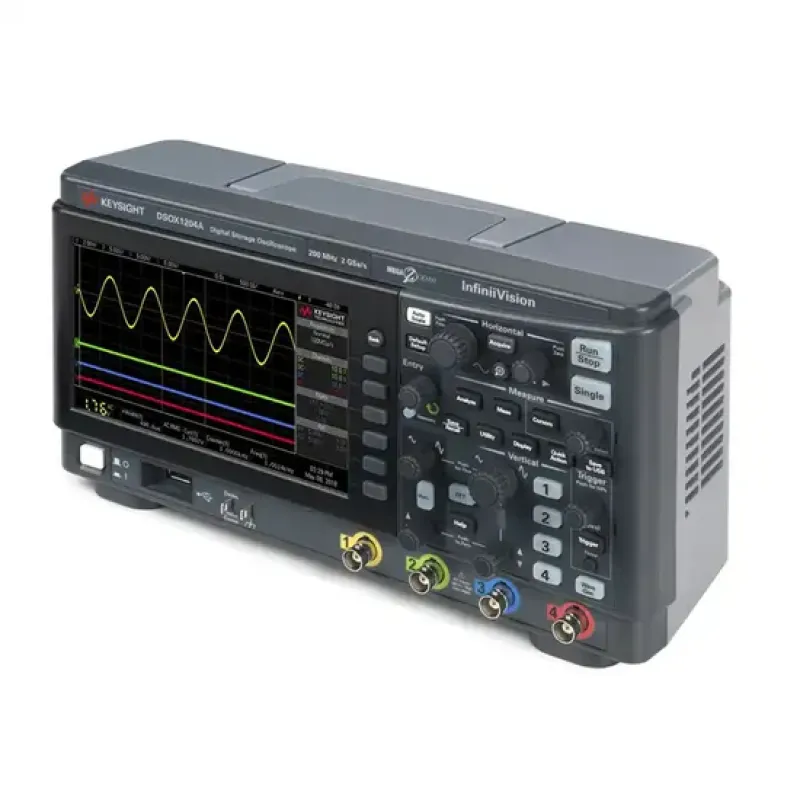

Keysight DSOX1204A - Digital Oscilloscope

Keysight DSOX1204A is a digital oscilloscope from the InfiniiVision 1000 X-Series, designed for a wide range of measurement tasks.

Main Features:

• Bandwidth: 70 MHz, with software upgrade options to 100 MHz or 200 MHz.
• Number of Analog Channels: 4.
• Maximum Sampling Rate: 2 GS/s.
• Memory Depth: 2 Mpts.
• Waveform Update Rate: up to 200,000 waveforms per second.
• Display: 7-inch WVGA (800x480) TFT LCD.



Additional Features:

• Trigger Types: edge, pulse width, video, pattern, rise/fall time, and setup/hold.
• Serial Protocol Decoding and Triggering: supports I²C, SPI, UART/RS232, CAN, and LIN (requires additional options).
• Math Functions and FFT: for frequency domain signal analysis.
• Mask Testing: for quick signal analysis and parameter validation.
• Built-in Digital Voltmeter (3 digits) and Frequency Counter (5 digits): for additional measurements.



Interfaces:

• Ports: USB and LAN for convenient data transfer and remote control.



Package Includes:

• Four N2140A passive probes with 200 MHz bandwidth and 10:1/1:1 attenuation ratio.
• Built-in multilingual help system.
• Localized power cord.
• Standard 3-year warranty.
