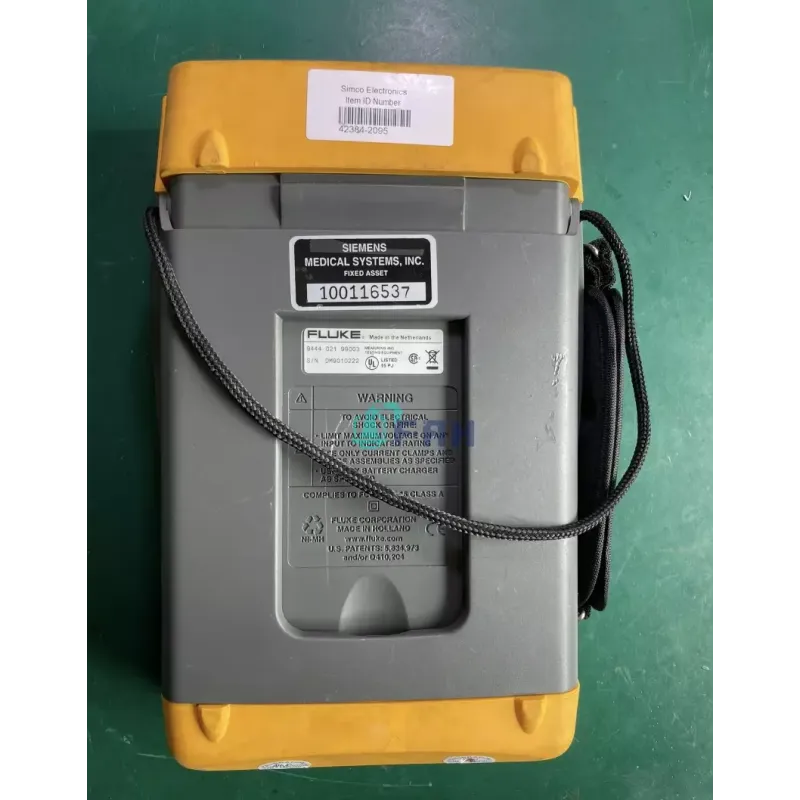

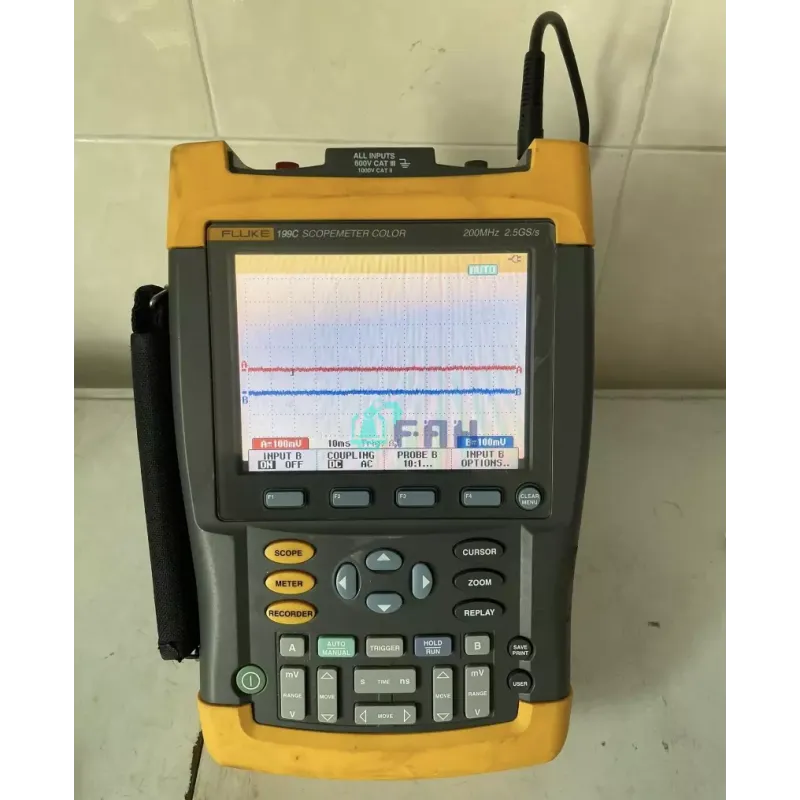

Fluke 199C Digital Oscilloscope Scopemeter Multimeter

The Fluke 199C is a portable oscilloscope-multimeter (ScopeMeter) with a bandwidth of 200 MHz and a sampling rate of up to 2.5 GS/s per channel. It combines the functions of a digital oscilloscope, multimeter, and dual-channel recorder, making it a versatile tool for diagnosing and servicing electronic systems.

Main Specifications:

• Number of channels: 2 oscilloscope inputs plus an isolated multimeter input.
• Bandwidth: 200 MHz.
• Sampling rate: up to 2.5 GS/s per channel.
• Maximum recording length: 27,500 points per channel.
• Display: 144 mm full-color LCD display.
• Measurements: automatic and cursor measurements (24 parameters), including peak detection (50 ns), averaging, accumulation, and afterglow.
• Recording modes: ScopeRecord and TrendPlot with the ability to save up to 100 records in each memory area.
• Interfaces: optically isolated USB port for PC connection and data transfer.

Features:

• Isolated channels: Three isolated channels (2 oscilloscope and 1 multimeter) ensure safety and measurement accuracy.
• Multifunctionality: Combines the functions of an oscilloscope, multimeter, and recorder, allowing a wide range of diagnostic tasks with a single device.
• Portability: Compact and robust design suitable for field use.
• Support for various TV standards: TV line selection for NTSC, PAL, PAL+, and SECAM standards.
