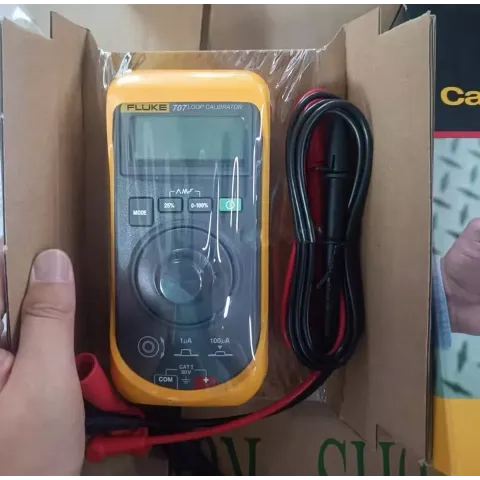

Fluke 707 Loop Calibrator

The Fluke 707 Loop Calibrator is a high-performance device designed for calibration, repair, and maintenance of current loops. It features a large display and a simple interface with a "Quick Click" rotary dial, enabling easy one-handed operation.

Key Specifications:

• Current Measurement Range: 0–24 mA
• Resolution: 0.001 mA
• Accuracy: 0.015% of reading + 2 least significant digits
• Functions: current sourcing, simulation, and measurement
• Loop Power: built-in 24 V source
• Voltage Measurement: 0–28 V DC
• Dimensions: 152 x 70 x 41 mm
• Weight: 224 g (340 g with protective case)
• Power Supply: one 9-volt battery
• Warranty: 3 years

Features:

• Simultaneous display of mA and % of range for quick interpretation of readings.
• Selectable step or ramp output signal.
• Loop voltage measurement up to 28 V DC.
• Removable battery compartment for quick battery replacement.
• Compact design with a protective case.

The Fluke 707 provides high accuracy and ease of use, making it an ideal choice for professionals working with current loops in various industrial applications.
