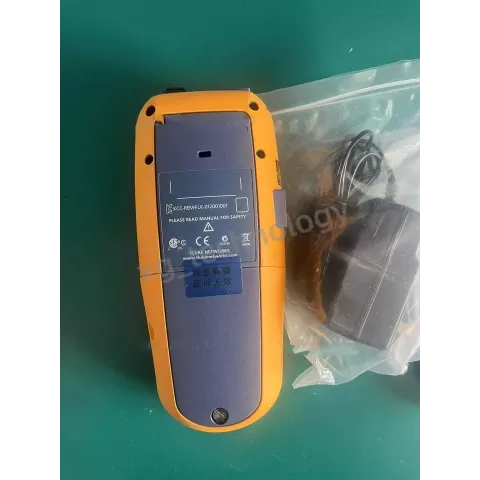

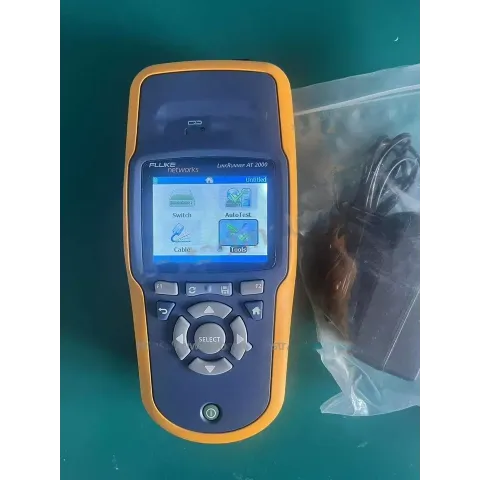

Fluke Networks LinkRunner AT 2000 Network Tester

The Fluke Networks LinkRunner AT 2000 is an automated network tester designed for quick verification and troubleshooting of Ethernet networks, supporting both copper and fiber connections. It features the AutoTest function, which starts within three seconds and performs a series of connectivity tests, allowing you to accurately and quickly identify and resolve network issues.

Key Features:

• Support for Various Connection Types: The tester supports copper connections via RJ-45 (10BASE-T, 100BASE-TX, 1000BASE-T) and fiber connections via an SFP port compatible with 100BASE-FX and 1000BASE-LX/SX/ZX modules.
• Power-over-Ethernet (PoE) Testing: The LinkRunner AT 2000 can test PoE up to the 802.3at standard (25.5 W) using TruePower™ technology, which measures actual power under load.
• Cable Diagnostics: Provides a graphical wire map, identifies shorts, opens, split pairs, and measures cable length and distance to faults.
• Switch Information Detection: Displays the nearest switch name, port number, VLAN, and other information using CDP/LLDP/EDP protocols.
• IPv4/IPv6 Support: Compatible with both protocols for modern networks.
• Reflector Function: Operates in loopback mode on layers 2 and 3 for network performance testing.

Technical Specifications:

• Display: 2.8-inch color LCD with a resolution of 320 x 240 pixels.
• Power Supply: Removable, rechargeable lithium-ion battery (18.5 W·h); external AC adapter (90-264 V input, 15 V DC output at 1.2 A).
• Dimensions and Weight: 8.9 x 19.8 x 4.8 cm; weight 0.5 kg.
• Interfaces: RJ-45 port for copper connections; SFP port for fiber modules; mini-B USB port for PC connectivity.

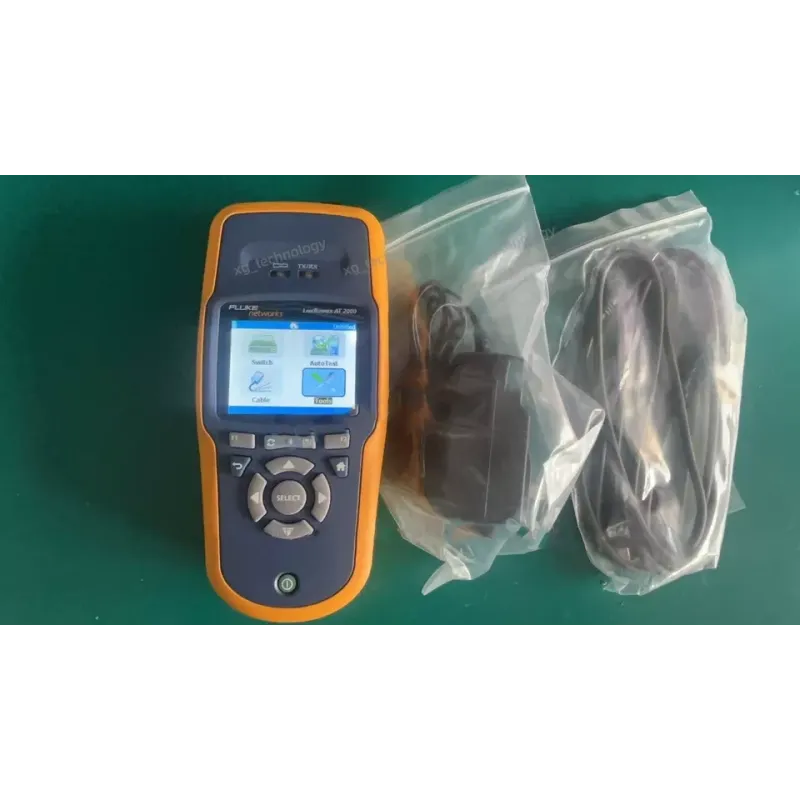

Package Contents:

• LinkRunner AT 2000 Tester.
• Lithium-ion battery.
• Charger.
• Wireview ID #1.
• USB cable.
• RJ45/11 modular adapter.
• Quick start guide.

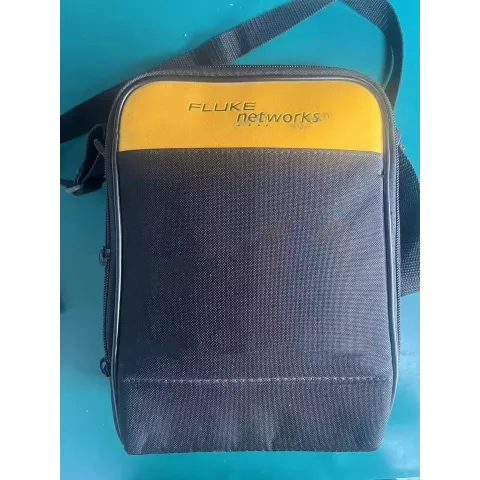

• Soft carrying case.
