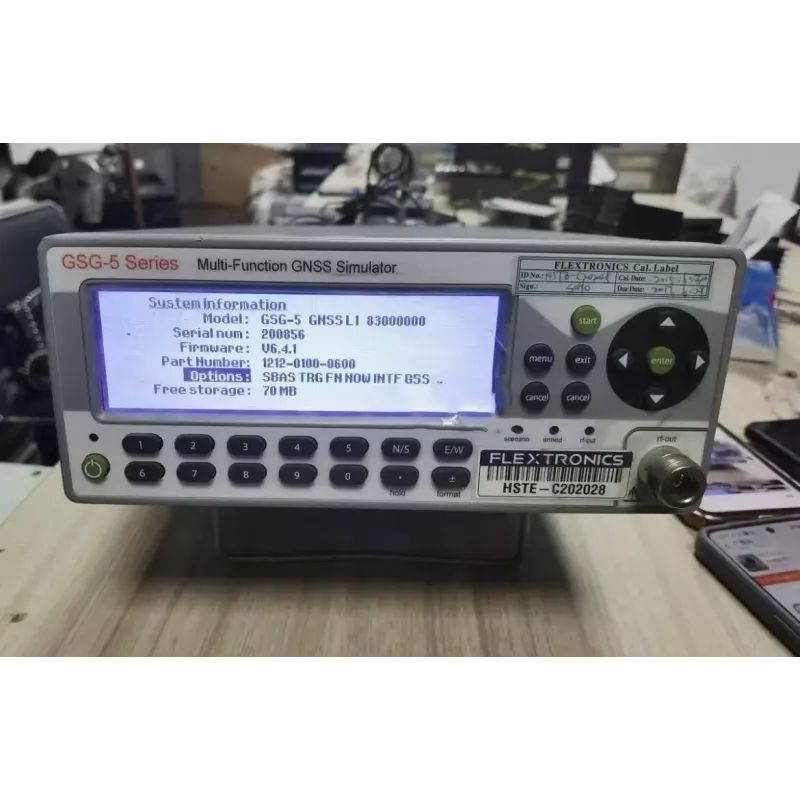

GSG-5 Satellite Signal Generator

Spectracom GSG-5 is an advanced GPS/GNSS satellite signal simulator designed for testing and calibrating devices that use satellite navigation. It can generate up to 4 satellite signals simultaneously in the L1 band, making it ideal for basic testing and GNSS receiver verification.

Main Features of GSG-5

• Number of channels: 4 (expandable to 8 or 16 channels via software options).
• Supported constellations: GPS, with optional support for GLONASS, BeiDou (B1), Galileo (E1), and QZSS via software upgrades.
• Output power range: from -65 dBm to -160 dBm with 0.1 dB resolution, ensuring precise signal level adjustment for different testing scenarios.
• Control interfaces: Ethernet, GPIB, and USB, allowing integration into various test environments and enabling remote control.
• Ease of use: intuitive front-panel interface for standalone operation and Windows-based scenario creation software with Google Maps integration.

Advantages of GSG-5

• Flexibility: remote control and full customization of trajectories and other dynamic parameters, allowing adaptation to specific testing requirements.
• Scalability: modular architecture enables expanding device functionality as testing needs grow, protecting investments in equipment.
• Compactness: lightweight and portable design (~3 kg), simplifying transportation and installation in various test environments.

GSG-5 provides a cost-effective solution for GNSS system testing, offering a combination of performance, flexibility, and ease of use. Its capabilities allow for a wide range of tests, from basic functionality checks to complex scenarios involving multiple constellations and frequencies.
