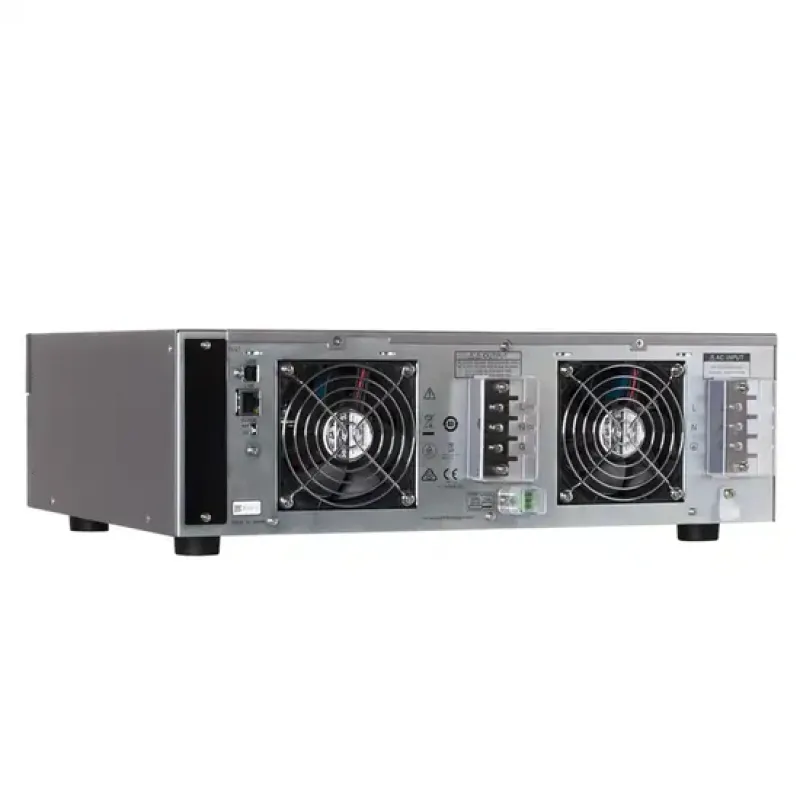

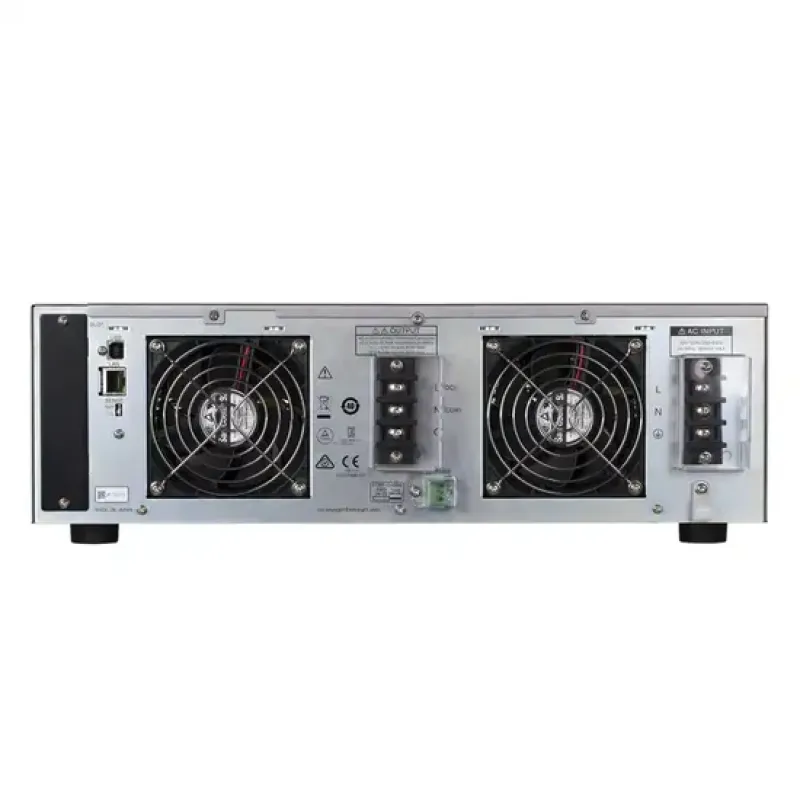

Keysight AC6802B is a basic AC power supply that provides stable and reliable power up to 1000 VA. It is designed for testing devices under varying voltage and frequency conditions, enabling real-world scenario simulation.

Key Features

• Maximum Output Power: 1000 VA.
• Output Voltage Range: up to 310 V AC and up to 438 V DC.
• Maximum Output Current: 5 A (AC) and 4 A (DC).
• Frequency Range: 40 Hz to 500 Hz.
• Connectivity Interfaces: LAN/LXI Core and USB standard; GPIB optional.
• Measurement Modes: voltage, current, power for AC, DC, and combined signals.



Features

• Intuitive user interface similar to Keysight DC power supplies.
• Remote access and control via built-in LXI Core web interface.
• Optional analog input board for custom signal generation and transient modeling.



Applications

• Simulating global power conditions to verify device compatibility with various grid standards.
• Testing combinations of frequency and voltage to evaluate device performance under real-world conditions.
• Power factor correction testing and other AC/DC signal-related applications.



Additional Information

• Options include GPIB interface and analog input board for integration into automated test systems.
• The device supports installation in a standard 19-inch rack using mounting kits.



Keysight AC6802B combines reliability, flexibility, and ease of use, making it an effective solution for various testing and development tasks in electronics.
