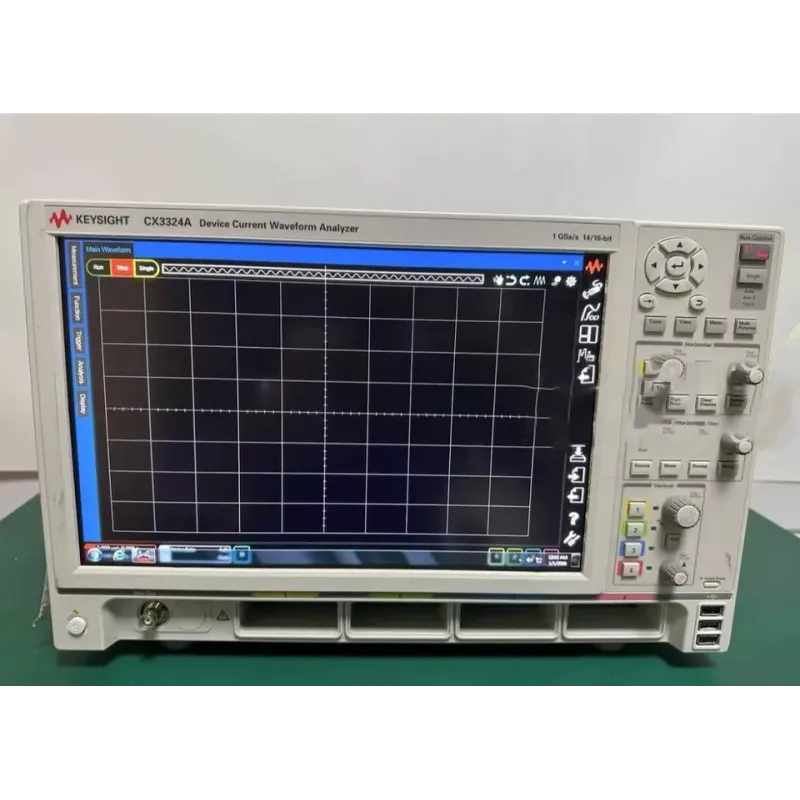

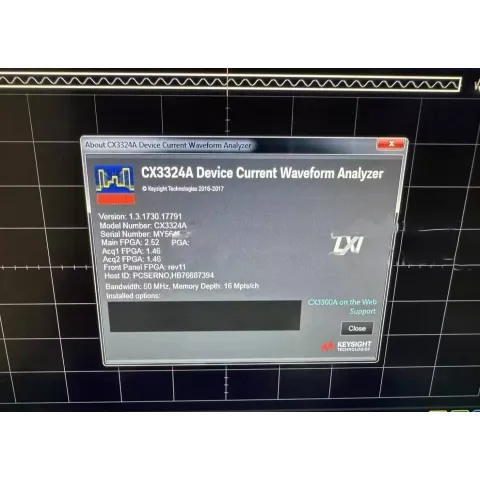

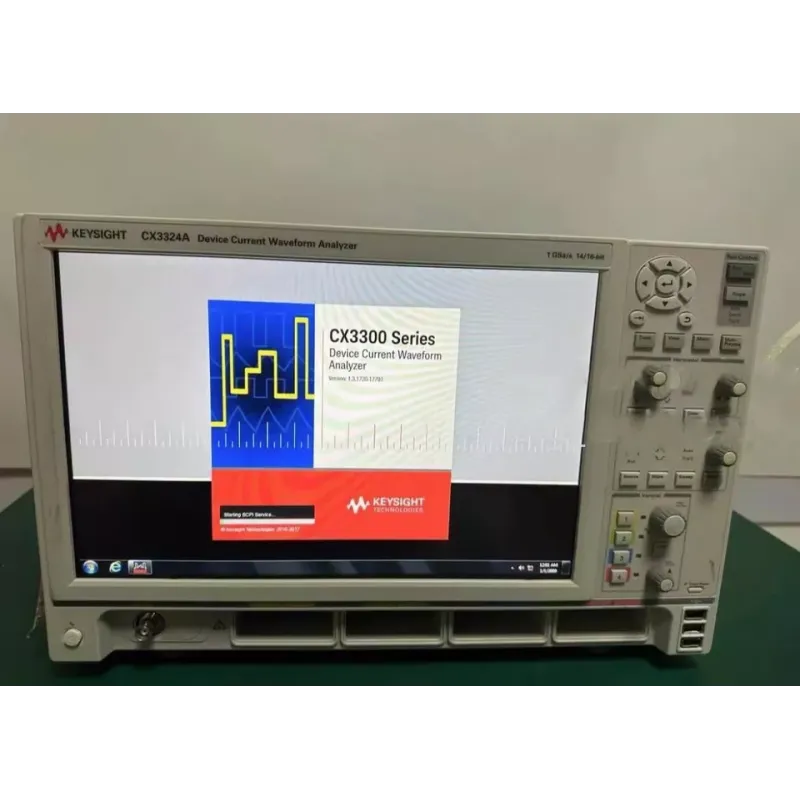

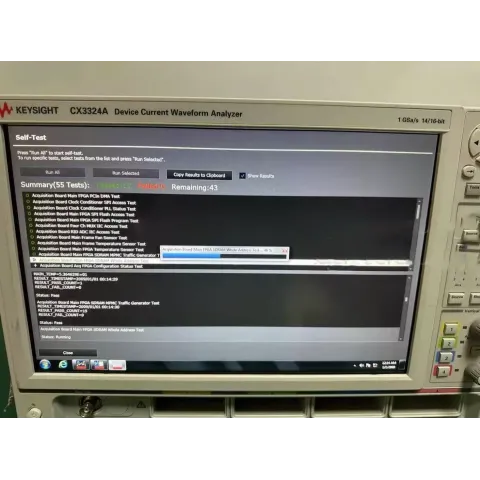

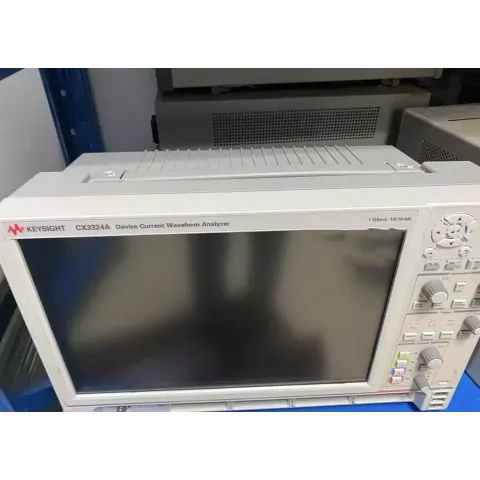

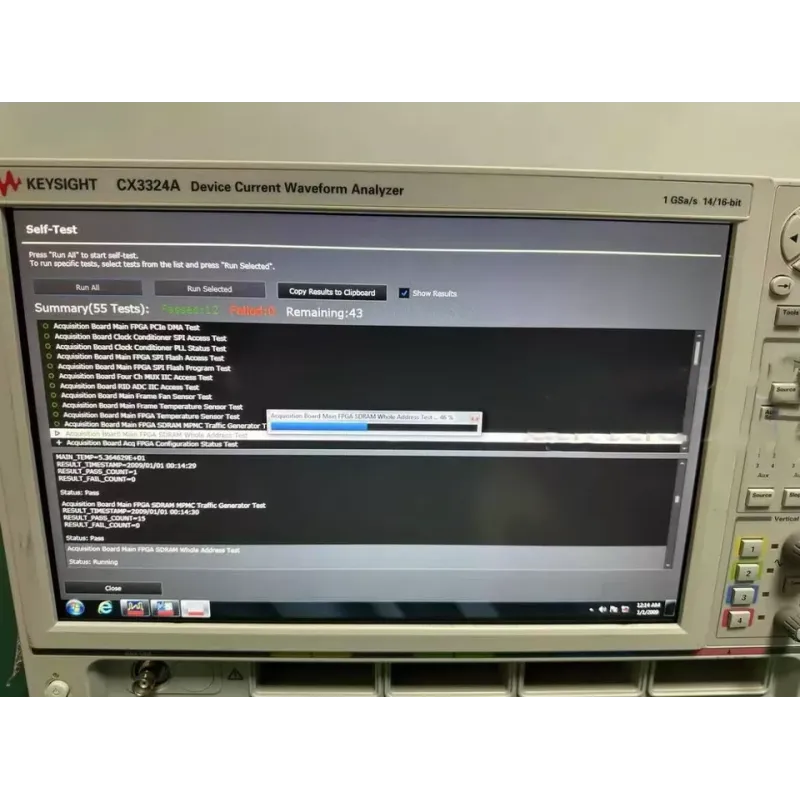

Keysight CX3324A Current Waveform Analyzer

The Keysight CX3324A Current Waveform Analyzer is a high-performance device designed for precise measurement and visualization of current waveforms in various electronic devices. It is especially useful for engineers and researchers working with low-power and high-speed circuits.

Key Features:

• Number of Channels: 4 analog channels, enabling simultaneous measurement of multiple signals.
• ADC Resolution: 14-bit or 16-bit modes, providing a wide dynamic range and high measurement accuracy.
• Sampling Rate: Up to 1 GS/s, allowing capture of fast transient events.
• Bandwidth: Options with 50 MHz, 100 MHz, and 200 MHz bandwidths, providing flexibility depending on application requirements.
• Memory Depth: Options for 4 Mpts/channel, 16 Mpts/channel, 64 Mpts/channel, and 256 Mpts/channel for extended signal recording.
• Display: 14.1-inch capacitive multi-touch screen with WXGA resolution for convenient interaction with the device.

Measurement Capabilities:

• Optimized for use with low-noise current sensors, enabling accurate measurement of low-level signals.
• Supports various types of triggers and mathematical functions for detailed signal analysis.

Available Sensors and Adapters (Optional):

• Current Sensors: CX1101A, CX1102A, CX1103A, CX1104A.
• Differential Sensors: CX1105A.
• Adapters: CX1151A for passive probes and CX1152A for digital channels (specific to CX3324A).

Analytical Capabilities:

• "Anywhere" scaling function for detailed analysis of selected signal areas.
• Automatic power and current profiler for quick characterization of devices.
• Statistical analysis: histograms, CCDF.
• Spectral analysis (FFT) for frequency-domain signal analysis.

The Keysight CX3324A provides engineers and researchers with a powerful tool for detailed study and analysis of current signals in modern electronic devices, ensuring high accuracy and extensive customization capabilities for specific tasks.
