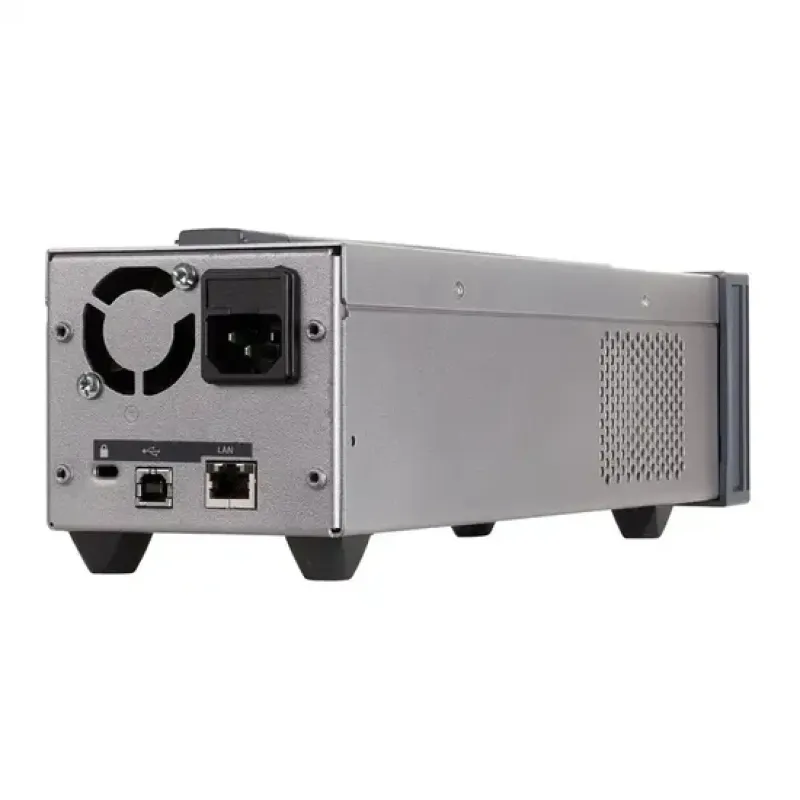

Keysight E36104B is a compact and precise DC power supply designed for benchtop or system use. It delivers a maximum output of 35 V, 1 A, and 35 W.

Key Features

• High Accuracy: Provides programmable voltage and current control and precise readback, ensuring reliable operation for your device under test.
• Low Noise: Offers low normal-mode noise for clean power suitable for precision circuits.
• Built-in Protections: Includes overvoltage, overcurrent, and overtemperature protections for safe operation.
• Modern Connectivity: Supports USB and LAN (LXI Core), allowing seamless integration into various test setups with remote control capabilities.
• User-Friendly Interface: Features a high-contrast OLED display and intuitive front-panel controls for easy operation.



Technical Specifications

• Output Voltage: 0–35 V
• Output Current: 0–1 A
• Output Power: Up to 35 W
• Programming Accuracy:
  • Voltage: ±0.05% + 12 mV
  • Current: ±0.05% + 0.6 mA
• Ripple and Noise (20 Hz–20 MHz):
  • Voltage RMS: 1.2 mV
  • Voltage Peak-to-Peak: 20 mV
  • Current RMS: 400 µA
• Readback Accuracy:
  • Voltage: ±0.05% + 8 mV
  • Current: ±0.05% + 0.5 mA



Applications

• Testing and development of electronic devices requiring stable and precise DC power.
• Use in educational labs for experiments and demonstrations.
• Industrial testing scenarios requiring reliable power sources.



Keysight E36104B combines precision, reliability, and user-friendly features, making it a valuable choice for labs and testing environments.
