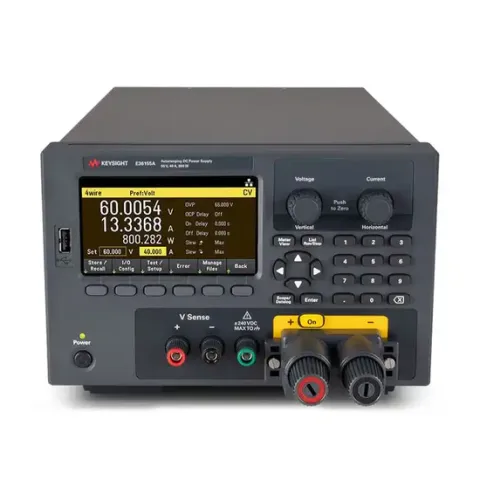

Keysight E36155AGVX is a versatile DC power supply kit designed for advanced testing and analysis, particularly in automotive applications. This kit combines several key components to enhance functionality and performance.

Components

• E36155A DC Power Supply:
  • Output: 0 to 60 V, 0 to 40 A, 800 W.
  • Features: Single output, auto-ranging, LAN and USB interfaces.
• E36150ADVU Upgrade:
  • Oscilloscope Mode: Sampling rate up to 100 kHz and 256K sample memory.
  • Arbitrary Waveform Generator: Creates complex signals with up to 512 points (sine, step, ramp, staircase, pulse, trapezoid, exponential).
• E36150ATMU Automotive Testing Features:
  • Programming Speed: Up to 7.5 times faster output adjustment for automotive tests.
  • ISO Preset Library: Startup profiles, reset modes, motor regeneration, and load dump scenarios.
  • Simulation Playback: Import and output signals with up to 10,000 points.
  • E-Logging: Voltage and current measurements with up to 1 ms sampling rate.



Key Features

• Auto-Ranging: Provides higher current at lower voltages or higher voltage at lower currents within 800 W power range.
• Detachable High-Current Connector: Easy connection to DUTs, supports up to 80 A.
• Advanced Tools: Data logging, oscilloscope mode, and arbitrary waveform generation.
• Protection: Overvoltage, overcurrent, and overtemperature safeguards.



Applications

• Automotive Testing: Simulate power transients and disturbances in automotive systems.
• Research and Development: Tools for testing and developing devices with precise power control.
• Quality Control: Validate designs and ensure product quality through comprehensive testing.
