Comparison of Keysight MXR208A and MXR208B Oscilloscopes

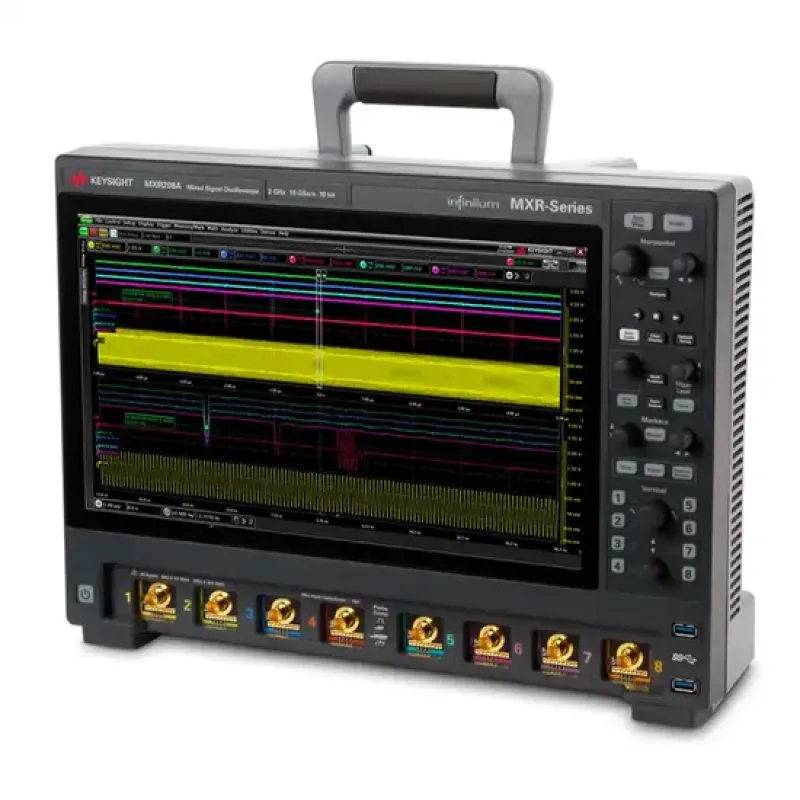

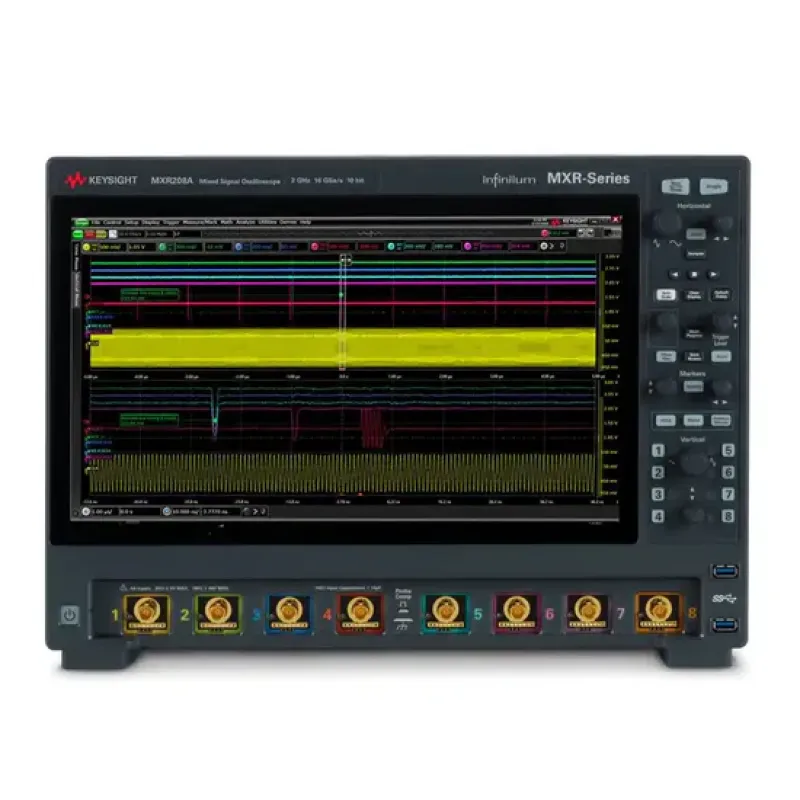

Keysight MXR208A Infiniium MXR Series Oscilloscope

The MXR208A oscilloscope offers a bandwidth of 2 GHz on all eight channels with a sampling rate of 16 GSa/s. It integrates eight instruments into one device:

• Oscilloscope
• Logic analyzer
• Protocol analyzer
• Digital voltmeter
• Frequency counter
• Real-time spectrum analyzer
• Frequency response analyzer
• Signal generator

The device is equipped with a 10-bit ADC with an effective number of bits (ENOB) up to 9.0 and a noise level as low as 43 μV. The maximum memory depth is 1.6 Gpts. The model is fully upgradeable, including bandwidth expansion up to 6 GHz. Standard features include InfiniiScan and Wave Gen.

Keysight MXR208B Infiniium MXR B-Series Oscilloscope

The MXR208B model has the same 2 GHz bandwidth and similar specifications but offers significant performance enhancements:

• Up to 70% faster jitter analysis
• Up to 65% faster power integrity analysis
• Up to 45% faster FFT execution
• Up to 15% faster USB 2.0 compliance testing

Like the MXR208A, this model includes a 10-bit ADC with ENOB up to 9.0 and a noise level of 43 μV, and it is fully upgradeable.

Comparison Table

Conclusion

The main difference between the MXR208A and MXR208B models is performance. The MXR208B provides significant improvements in signal analysis and testing speed, making it more efficient for complex tasks.
