Keysight MXR608A and MXR608B Oscilloscopes

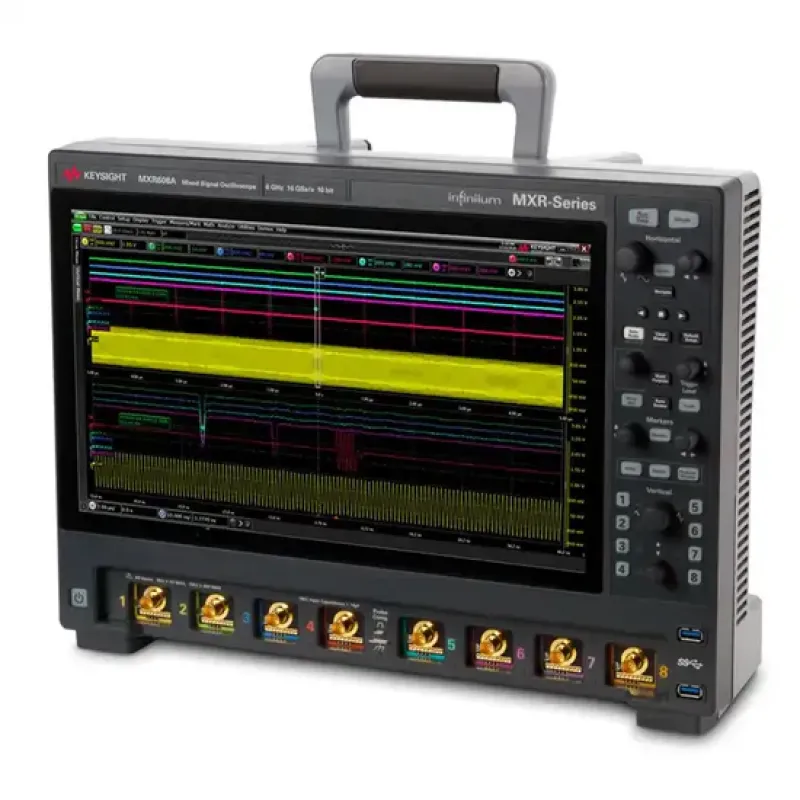

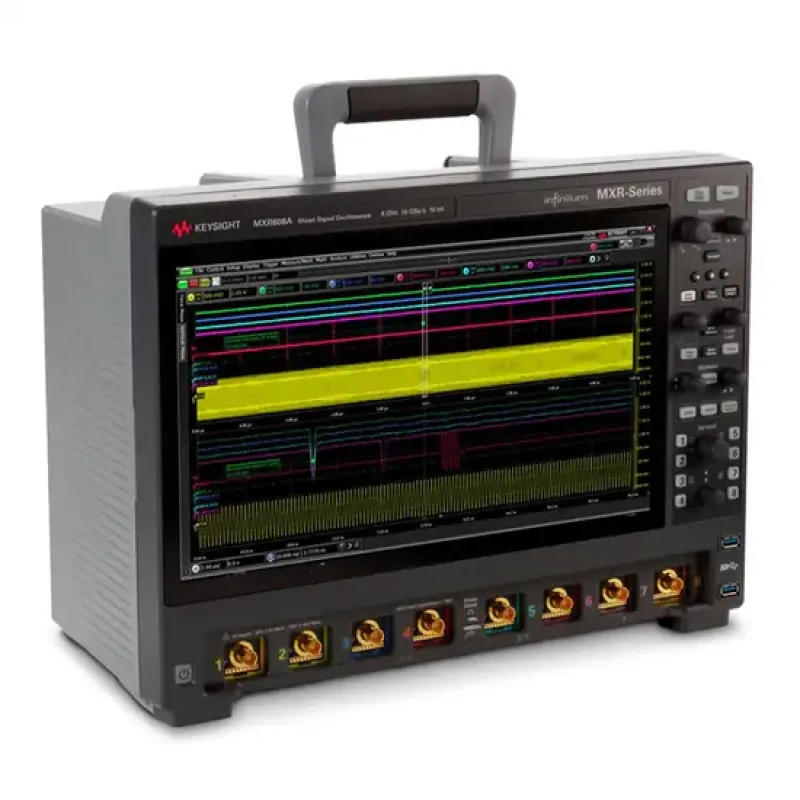

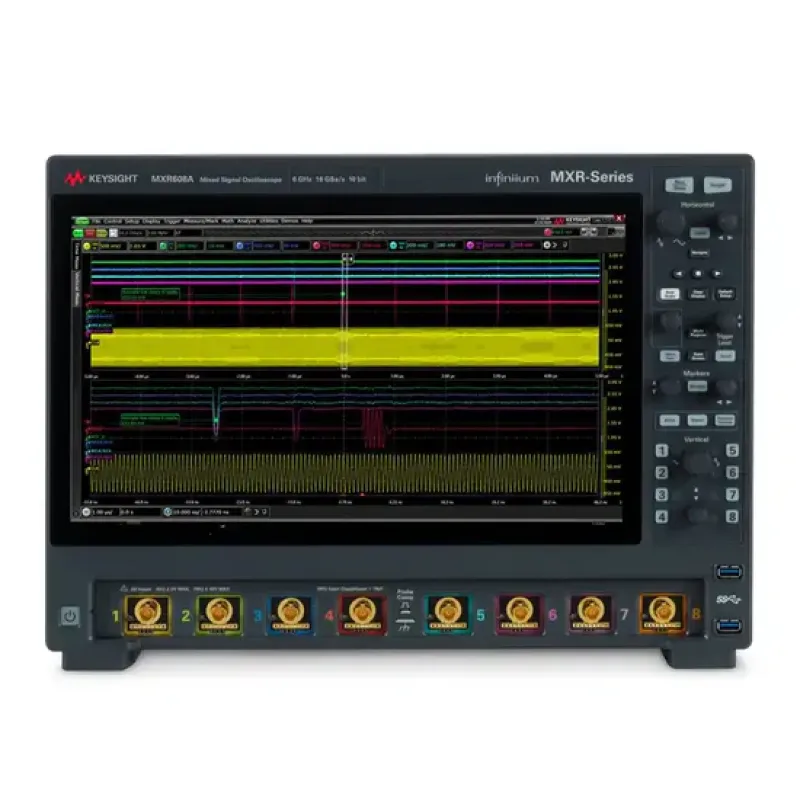

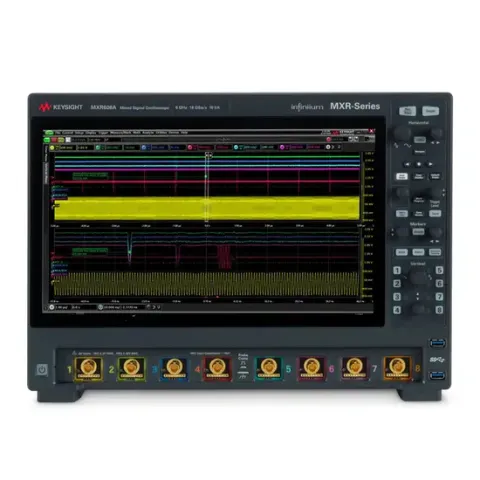

Keysight MXR608A Infiniium MXR Series Oscilloscope

The Keysight MXR608A oscilloscope provides a 6 GHz bandwidth on all 8 analog channels. It integrates up to eight instruments in one device, including an oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, and signal generator. With hardware-accelerated waveform rendering using ASIC technology from the Infiniium UXR-Series, the MXR608A delivers higher test speeds. The device supports precise measurements with an effective number of bits (ENOB) up to 9.0 and a noise level as low as 43 µV. The maximum memory depth is 1.6 Gpts. The oscilloscope is fully upgradeable, including bandwidth expansion and channel upgrades.

Keysight MXR608B Infiniium MXR B-Series Oscilloscope

The MXR608B model retains all the advantages of the MXR608A and additionally offers:

• Up to 70% faster jitter analysis.
• Up to 65% faster power integrity analysis.
• Up to 45% faster FFT processing.
• Up to 15% faster USB 2.0 compliance testing.

Additionally, the standard configuration includes InfiniiScan and a built-in signal generator with a frequency of up to 50 MHz.

Comparison Table of Key Specifications
