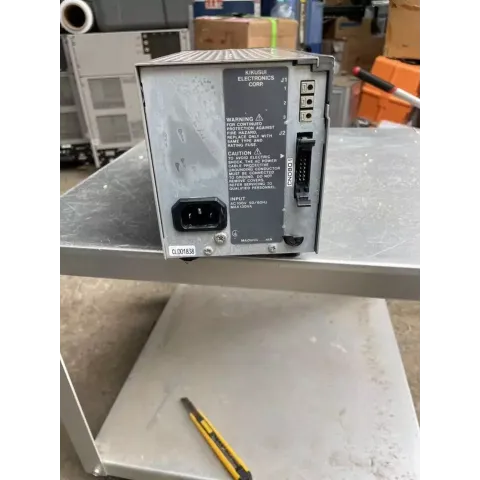

KIKUSUI PMC35-1A Programmable DC Power Supply

KIKUSUI PMC35-1A is a programmable DC power supply designed for use in laboratories, production, and research applications. It provides high precision and stability of output parameters, as well as a wide range of voltage and current adjustments.

Main Specifications:

• Output Voltage: 0–35 V
• Output Current: 0–1 A
• Output Power: up to 35 W
• Voltage Setting Accuracy: ±0.01% of the set value + 2 mV
• Current Setting Accuracy: ±0.2% of the set value + 2 mA
• Ripple and Noise:
  • Voltage: ≤1 mV RMS
  • Current: ≤1 mA RMS
• Response Time: ≤100 ms to recover within 100 mV of the set value for load changes from 10% to 90%
• Control Interfaces: optional modules for remote control, including GPIB and RS-232C
• Dimensions: 210 mm (width) x 124 mm (height) x 350 mm (depth)
• Weight: approximately 8 kg

Features:

• Support for both local and remote control with the ability to program via additional interfaces.
• Series and parallel connection functions to increase output voltage or current.
• Protection against overvoltage (OVP), overcurrent (OCP), and overheating to ensure safe operation.
• The ability to save and recall preset configurations to speed up the testing process.
• High efficiency and active power factor correction (PFC) to reduce energy consumption and minimize harmonic distortion.

KIKUSUI PMC35-1A ensures reliable and precise power delivery for various applications requiring a programmable DC power supply with high performance characteristics.
