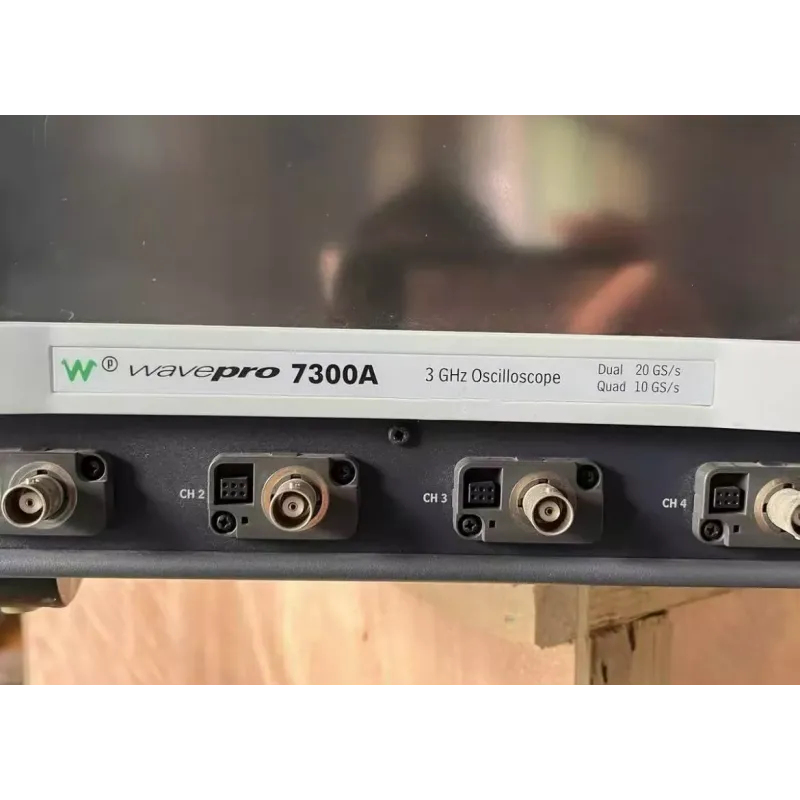

LeCroy WavePro 7300A Oscilloscope

The LeCroy WavePro 7300A oscilloscope is a high-performance instrument with a 3 GHz bandwidth, designed for precise analysis of high-speed signals. It features four channels and provides a sampling rate of up to 20 GS/s when channels are combined, allowing for detailed capture and analysis of complex signals.

Main Specifications:

• Bandwidth: 3 GHz
• Number of Channels: 4
• Sampling Rate:
  • 10 GS/s per channel
  • 20 GS/s when combining two or one channel
• Record Length: 20 Mpoints
• Rise Time: 150 ps
• Display: 10.4-inch color screen

Additional Features:

The instrument supports over 80 jitter and timing measurements, making it ideal for tasks requiring high-precision timing analysis. A low jitter noise level of 1 ps ensures highly accurate analysis.

With X-Stream™ technology, the oscilloscope delivers fast data processing, enabling real-time complex signal analysis. Its unique data processing architecture allows users to add custom measurements to the processing stream, extending the instrument’s functionality for specific tasks.
