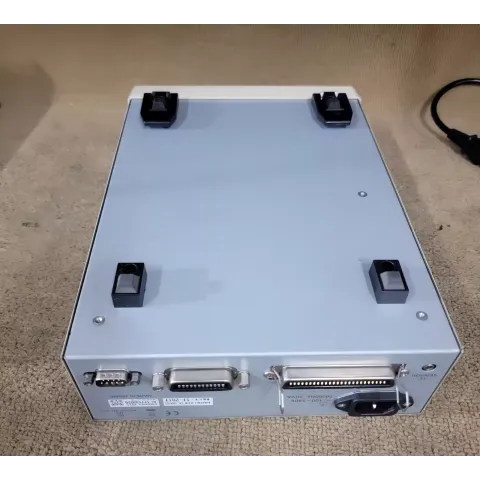

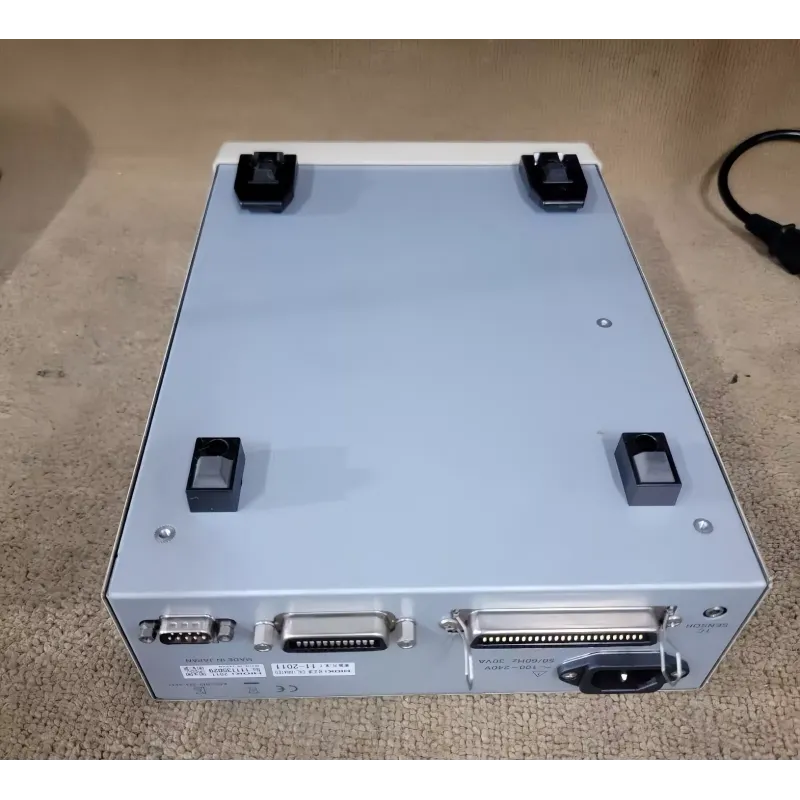

Hioki 3541 Resistance HiTester (Milli-ohm/Micro-ohm)

The Hioki 3541 Resistance HiTester is a high-precision instrument designed for measuring very low resistance values in the milli-ohm and micro-ohm ranges. It is developed for precision testing of wires, contacts, connectors, as well as for measuring the internal resistance of batteries and other components where accurate low resistance measurement is critical.

Main Specifications

• Measurement Ranges: Measures resistance from a few micro-ohms up to hundreds of milli-ohms, depending on the selected range and configuration.
• Accuracy: High measurement accuracy with minimal loading on the test circuit.
• Resolution: Provides high resolution for detailed analysis of low resistances.
• Compensation: Features contact resistance correction and lead compensation to enhance measurement reliability.
• Interfaces and Display: Equipped with a digital display; integration with a PC is possible for measurement automation via standard interfaces.

Applications

• Measurement of contact and connector resistance
• Quality control of wires and connections
• Testing the internal resistance of batteries
• Laboratory research in low-resistance measurements

The Hioki 3541 Resistance HiTester is a reliable and high-precision tool for measuring low resistances in the milli-ohm and micro-ohm ranges. Its high accuracy, high resolution, and compensation features make it indispensable in both laboratory and production environments where precise low resistance measurement is required.
