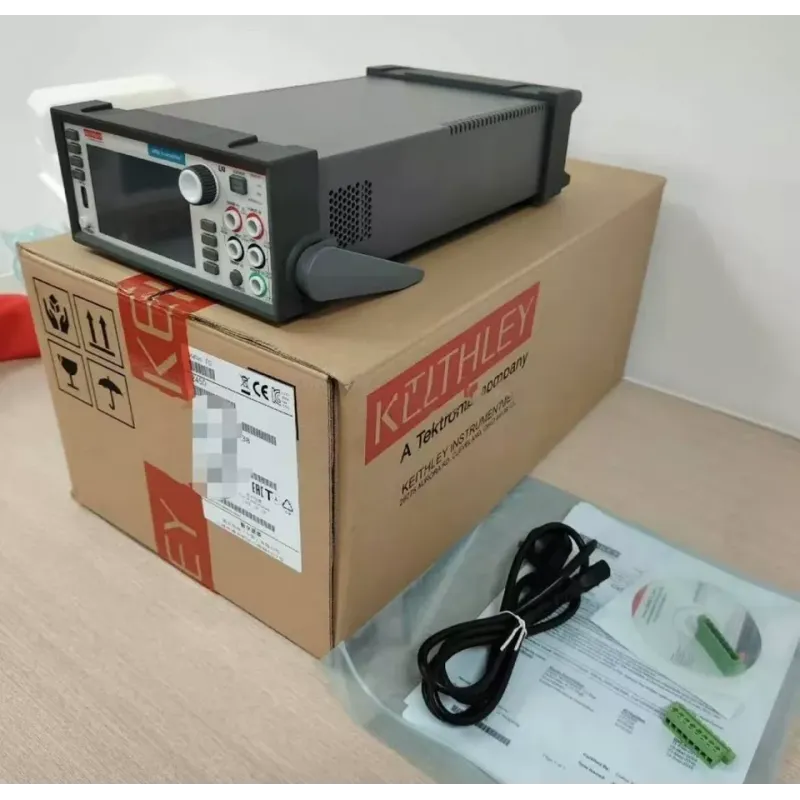

Keithley 2450 High Precision Source Measure Unit

Keithley 2450 is a high-precision four-quadrant Source Measure Unit (SMU) of the new generation that combines the functions of a power source and a measurement instrument. It features a 5-inch capacitive touchscreen with an intuitive graphical interface, simplifying setup and measurement processes.

Main Specifications:

• Voltage range: from 200 mV to 200 V
• Current range: from 10 nA to 1 A
• Maximum output power: 20 W
• Measurement resolution: 6.5 digits
• Basic accuracy: 0.012%

Features:

• Touchscreen display: 5-inch screen with a well-designed color scheme and easy navigation, ensuring ease of use.
• User-friendly interface: Single-level menu and straightforward settings allow users to start working quickly.
• Large memory capacity: Can store up to 27.5 million results with timestamps for subsequent analysis directly on the device.
• Versatility: The device can be used as a precision power source, digital multimeter, current or voltage source, picoammeter, and electronic load.

Applications:

With its capabilities, Keithley 2450 is suitable for a wide range of applications, including testing semiconductor devices, materials research, testing electronic components, and other fields that require precise control and measurement of electrical parameters.
