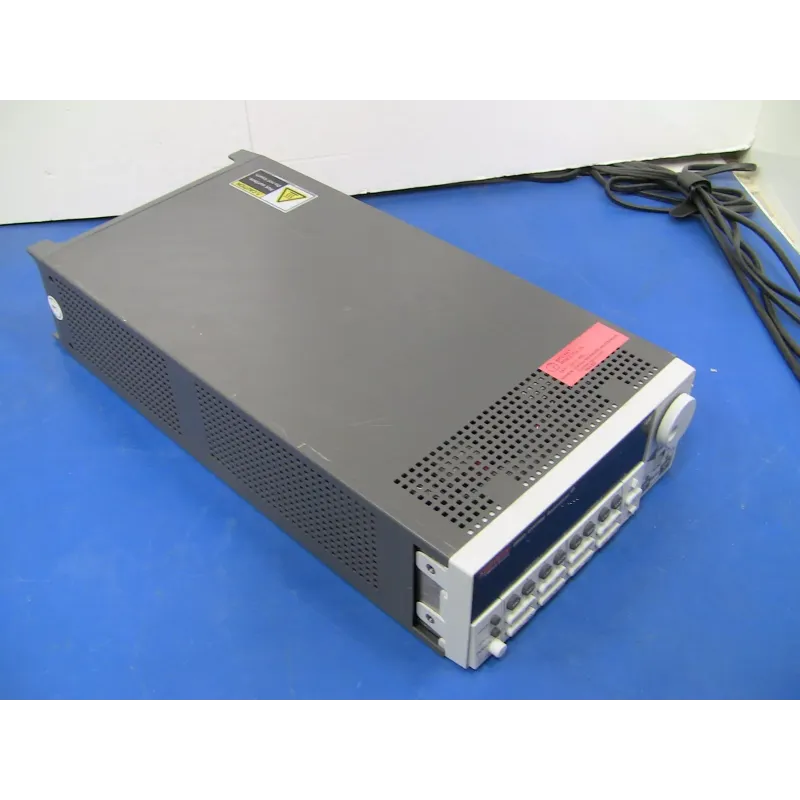

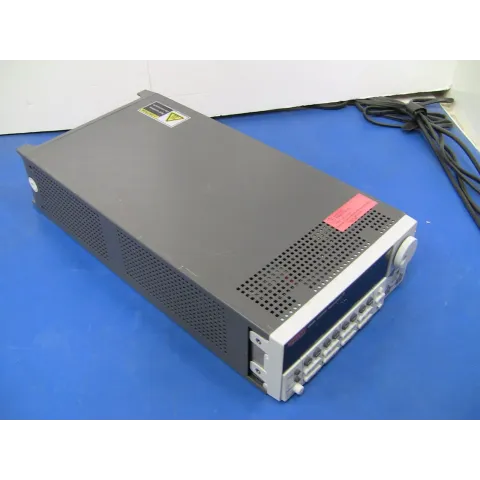

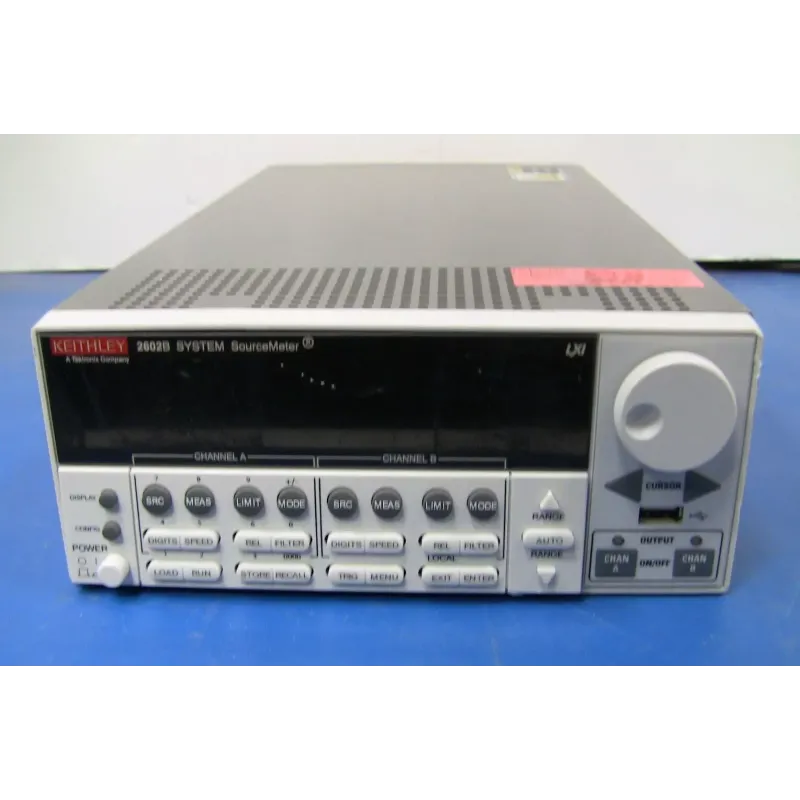

Keithley 2602B Source Meter SMU

The Keithley 2602B is a dual-channel Source Measure Unit (SMU) that combines the functions of a precision power supply, a true current source, a 6½-digit digital multimeter, an arbitrary waveform generator, a pulse generator, and an electronic load in one device. It is designed to enhance productivity in applications ranging from laboratory I-V characterization to high-throughput automated production testing.

Main Features:

• Number of Channels: 2
• Maximum Source/Measure Current Range: 3 A DC, 10 A pulse
• Maximum Source/Measure Voltage Range: 40 V
• Measurement Resolution: 100 fA / 100 nV
• Maximum Power per Channel: 40.4 W

Features:

• Integrated 4-quadrant source and measure unit: Provides high precision and resolution for a wide range of applications.
• Built-in web browser software: Allows remote control of the device through any browser on any computer from anywhere in the world.
• Compatibility with Keithley IVy mobile app: Enables fast and easy I-V characterization and testing through Android-based devices.
• TSP (Test Script Processing) technology: Embeds full test programs directly into the instrument for high system-level performance.
• TSP-Link technology: Supports multi-channel parallel testing without the need for a mainframe.
• Emulation of Keithley 2400 software: Ensures compatibility with existing test systems.
• Interfaces: USB 2.0, LXI-C, GPIB, RS-232, and digital I/O for flexible integration into various systems.

Applications:

The Keithley 2602B is ideal for testing semiconductor devices, power components, LEDs, and other electronic components requiring precise source and measurement. Its high performance and flexibility make it an indispensable tool for both research laboratories and production lines.
