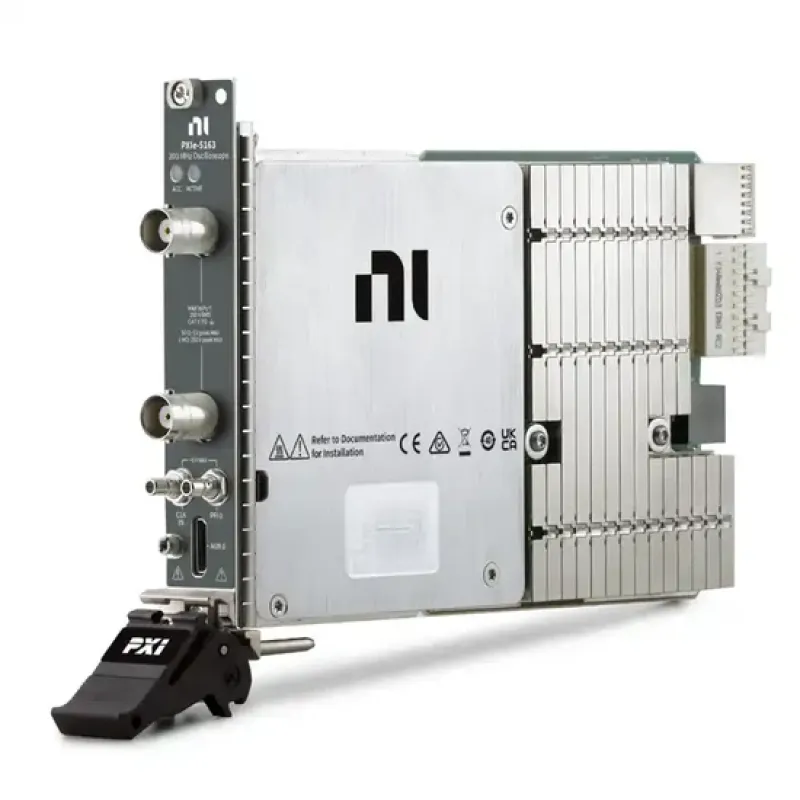

National Instruments PXIe-5163 Oscilloscope

The National Instruments PXIe-5163 oscilloscope is a high-performance modular instrument designed for measuring and analyzing electrical signals in various applications.

Key Features:

• Number of Channels: 2
• Maximum Sampling Rate: 1 GS/s
• Bandwidth: 200 MHz
• Analog Input Resolution: 14-bit
• Input Impedance: 50 Ω or 1 MΩ
• Input Voltage Range: -50 V to 50 V
• Input Coupling Types: AC and DC
• Trigger Modes: Various modes, including edge, level, software trigger, and others
• Onboard Memory: 64 MB or 512 MB
• Maximum Power Consumption: 26 W
• Dimensions: 8.37 × 5.07 × 0.787 inches (21.3 × 12.9 × 2.0 cm)
• Weight: 16.2 oz (approximately 460 g)



The PXIe-5163 supports high-level synchronization with other PXI modules, which is especially useful for automated and semi-automated test applications. It provides high data throughput, enabling efficient processing of large volumes of information.

For control and configuration, the PXIe-5163 is recommended to be used with the NI-SCOPE driver, which provides interfaces for various development environments, including LabVIEW, .NET, and Measurement Studio. Additionally, the NI-SCOPE Soft Front Panel software can be used for interactive control of the instrument.

Thus, the PXIe-5163 oscilloscope from National Instruments is a powerful and flexible tool for conducting precise measurements in various fields.
