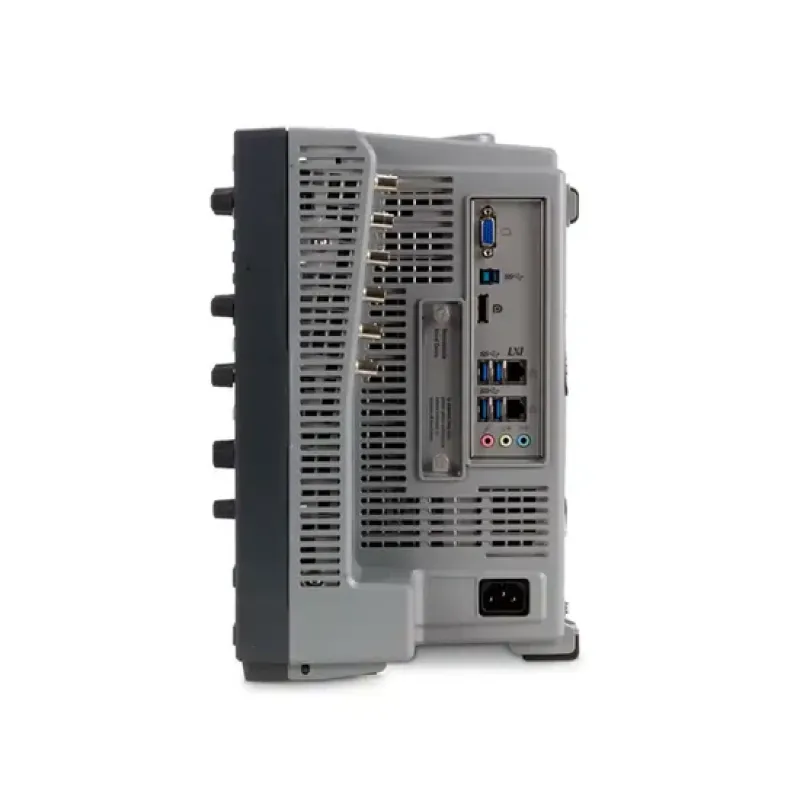

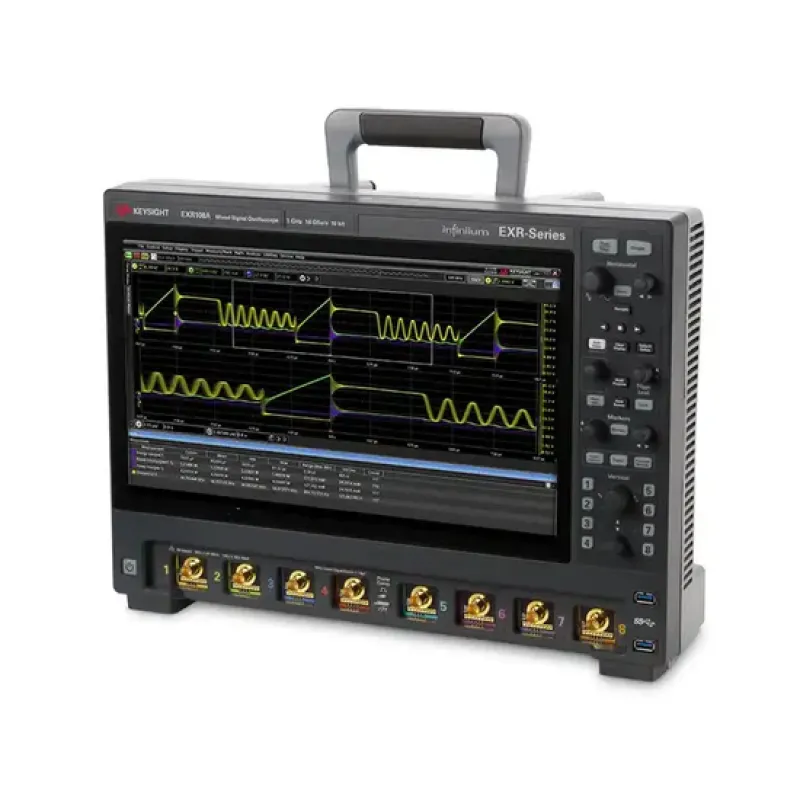

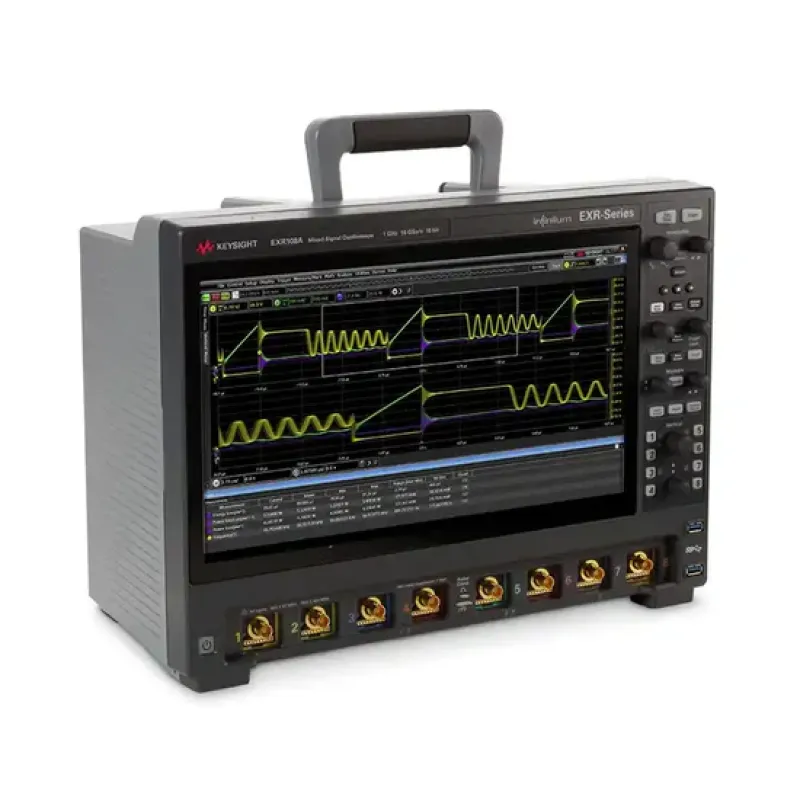

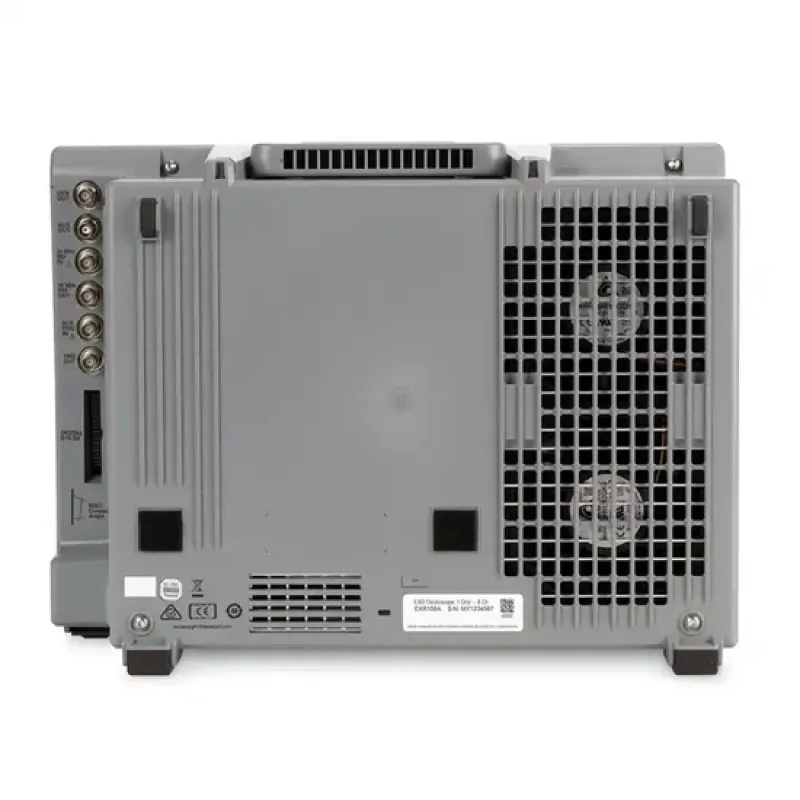

Keysight EXR108A Infiniium EXR Series Oscilloscope

The Keysight EXR108A from the Infiniium EXR series is a high-performance instrument with 1 GHz bandwidth and eight analog channels. It features a 10-bit analog-to-digital converter (ADC) with a sampling rate of 16 GSa/s per channel, ensuring high measurement accuracy. The standard memory depth is 100 Mpts per channel, with the option to expand up to 1.6 Gpts for extended signal recordings.

Key Features of Keysight EXR108A

• High measurement accuracy: Effective number of bits (ENOB) up to 9.0 and noise level as low as 43 µV ensure precise results.
• 7-in-1 integration: Combines the functions of an oscilloscope, logic analyzer, protocol analyzer, digital voltmeter, frequency counter, frequency response analyzer, and arbitrary waveform generator, saving both workspace and budget.
• Fully upgradable: Allows for bandwidth, channel count, and other feature updates to adapt to changing needs without purchasing new equipment.

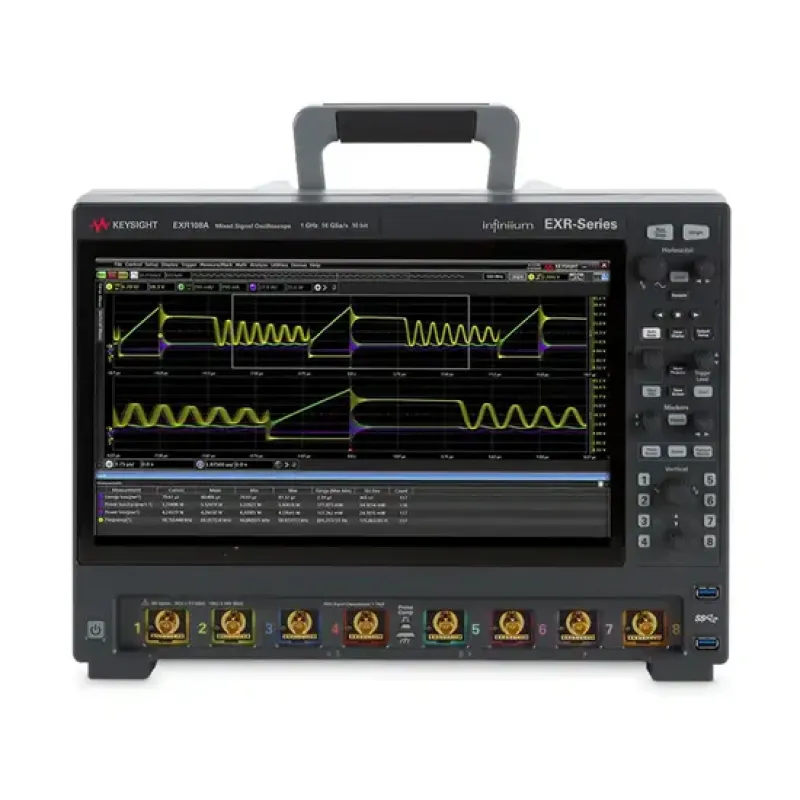

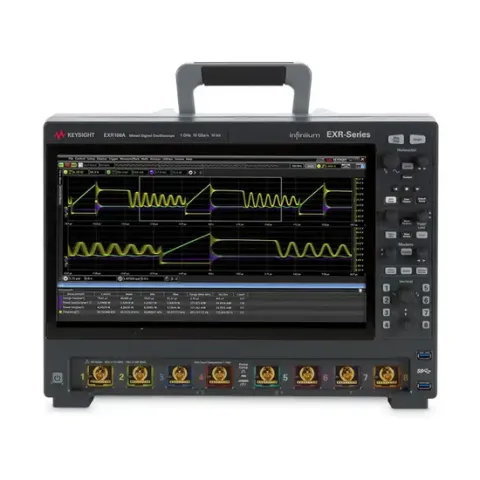

• Intuitive interface: A 15.6-inch Full HD touchscreen with support for a second monitor ensures ease of use.

The Keysight EXR108A supports various software applications for signal integrity analysis, power analysis, protocol decoding, and compliance testing, enhancing its capabilities.
