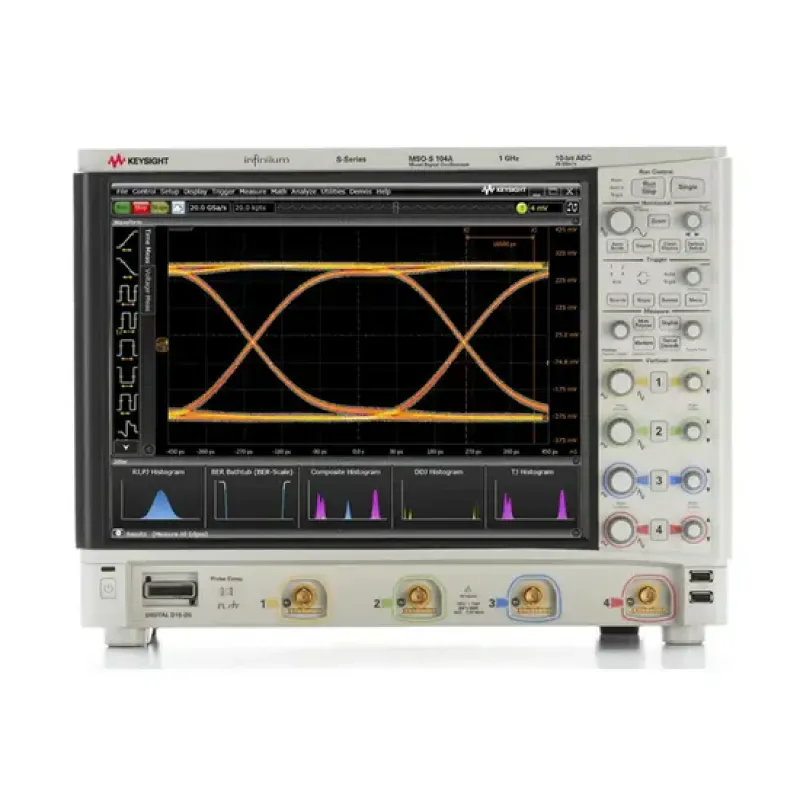

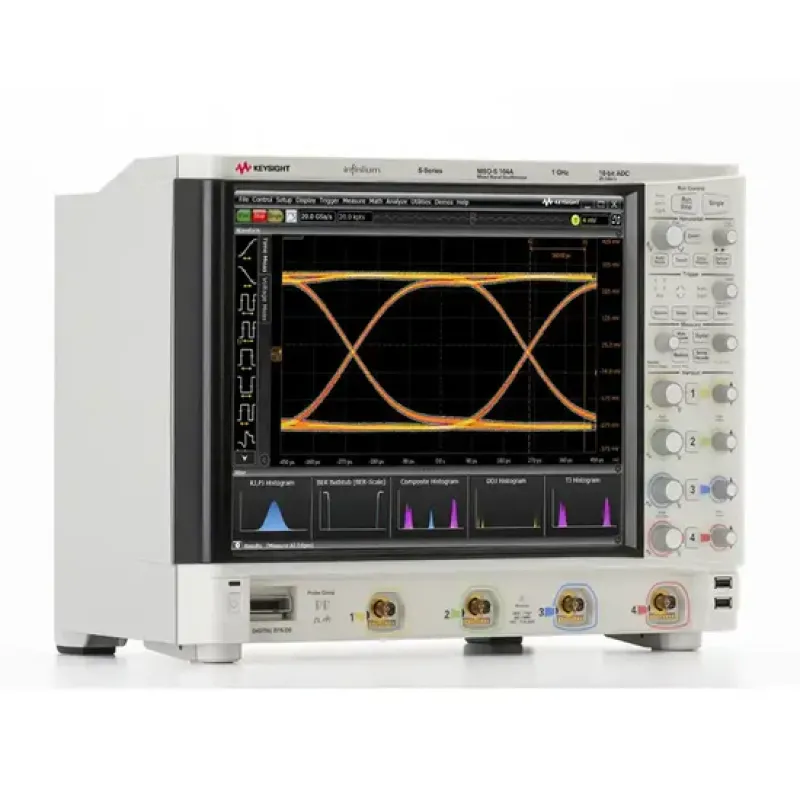

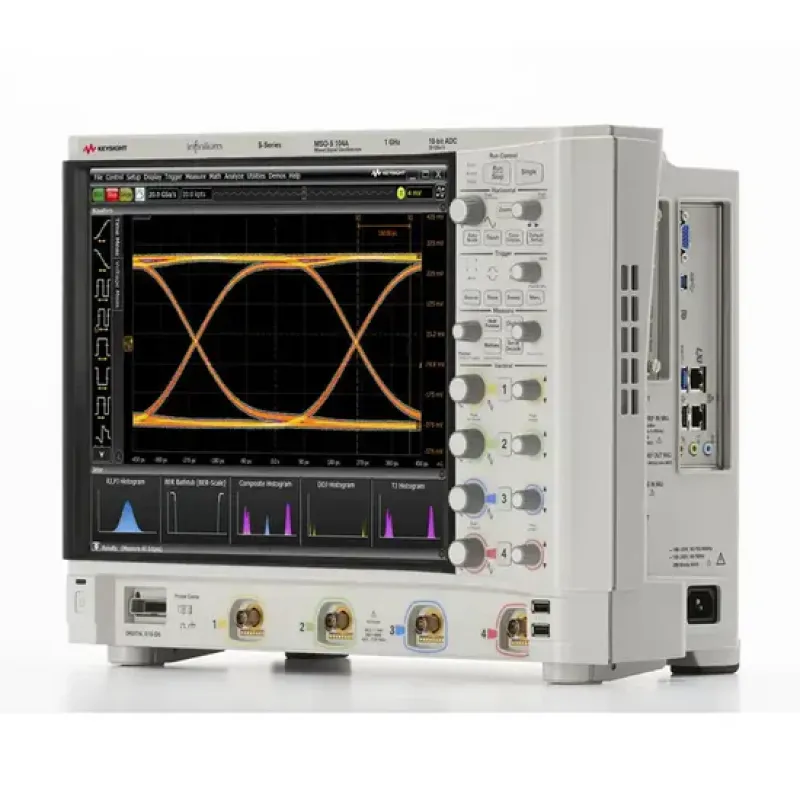

Keysight MSOS104A HD Oscilloscope

The Keysight MSOS104A is a high-precision mixed signal oscilloscope from the Infiniium S-Series, designed for detailed analysis of analog and digital signals.

Main Features:

• Bandwidth: 1 GHz
• Channels: 4 analog and 16 digital
• Maximum Sampling Rate:
  • 20 GSa/s using 2 channels
  • 10 GSa/s using all 4 channels
• Memory Depth: Standard 100 Mpts per channel, upgradeable to 800 Mpts
• ADC Resolution: 10-bit, expandable up to 16-bit
• Display: 15-inch capacitive touch screen with multitouch support
• Effective Number of Bits (ENOB): 8.1 bits at full bandwidth
• Additional Capabilities: Support for protocol analysis and compliance testing software



Included Accessories:

• Four N2873A passive probes with 500 MHz bandwidth
• Probe accessory kit
• Keysight I/O libraries suite
• Localized power cord
• Front panel cover
• 8 GHz BNC calibration cable
• Keyboard and mouse
• User and programmer’s guide
• 16-channel flying lead logic probe
• MSO cable
• MSO calibration fixture



Thanks to its high signal fidelity and advanced analysis capabilities, the MSOS104A oscilloscope is ideal for a wide range of electronics testing and debugging tasks.
