Keysight MXR408A and MXR408B Infiniium Series Oscilloscopes

$10 000.00

Description

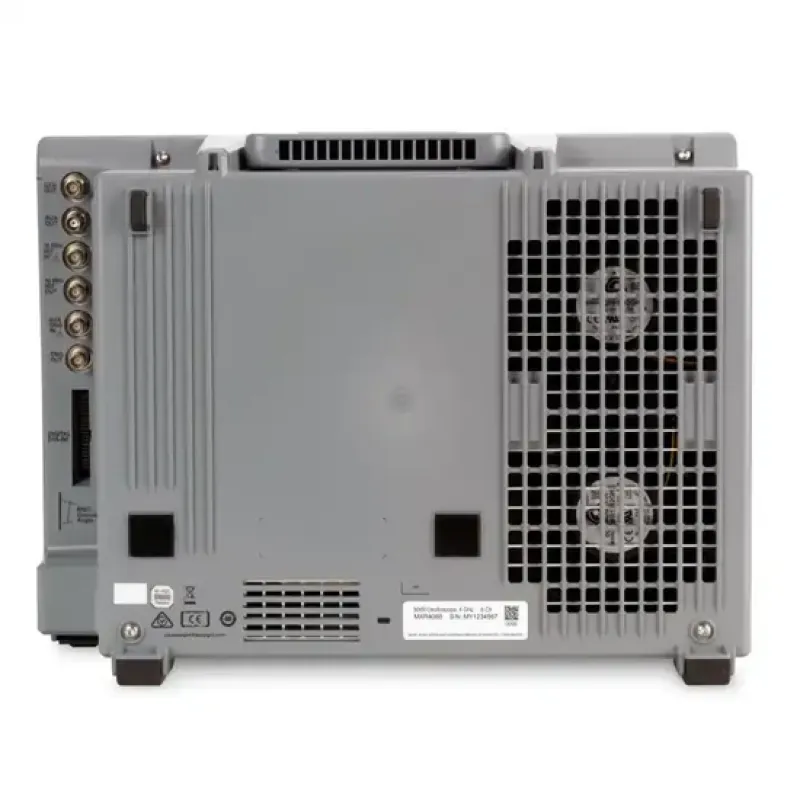

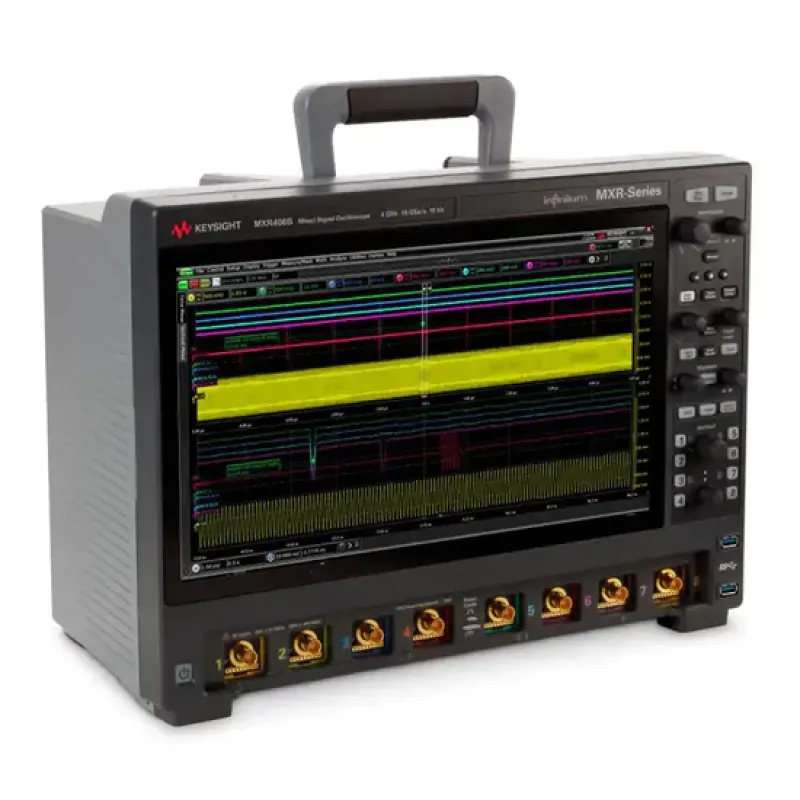

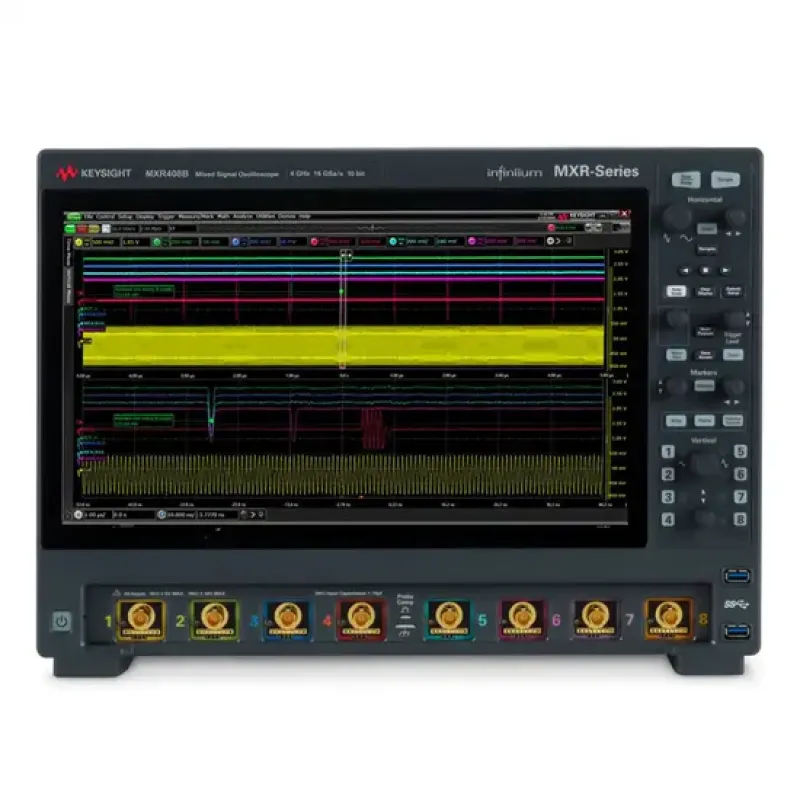

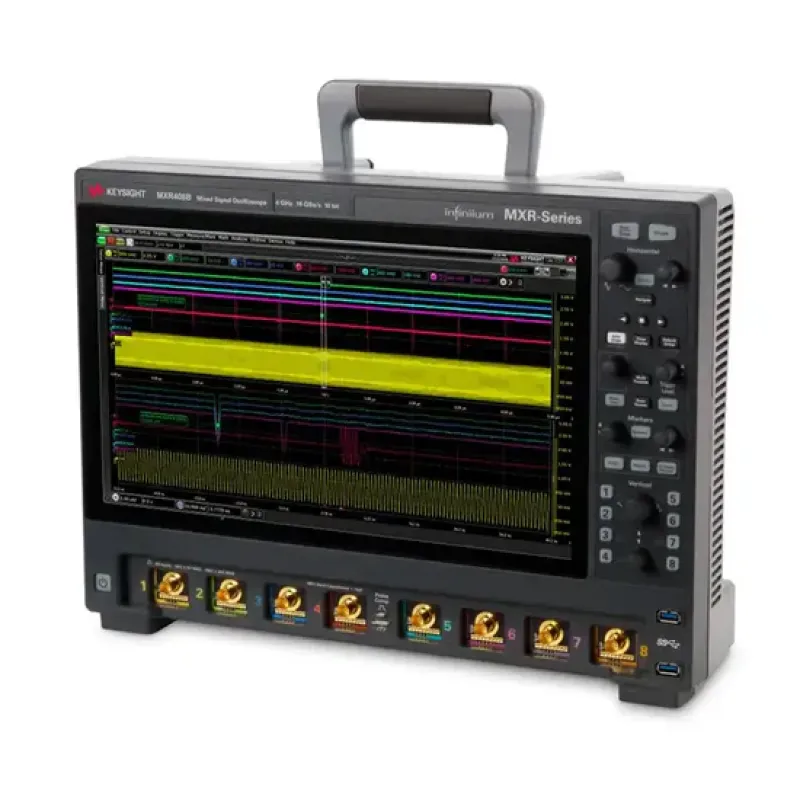

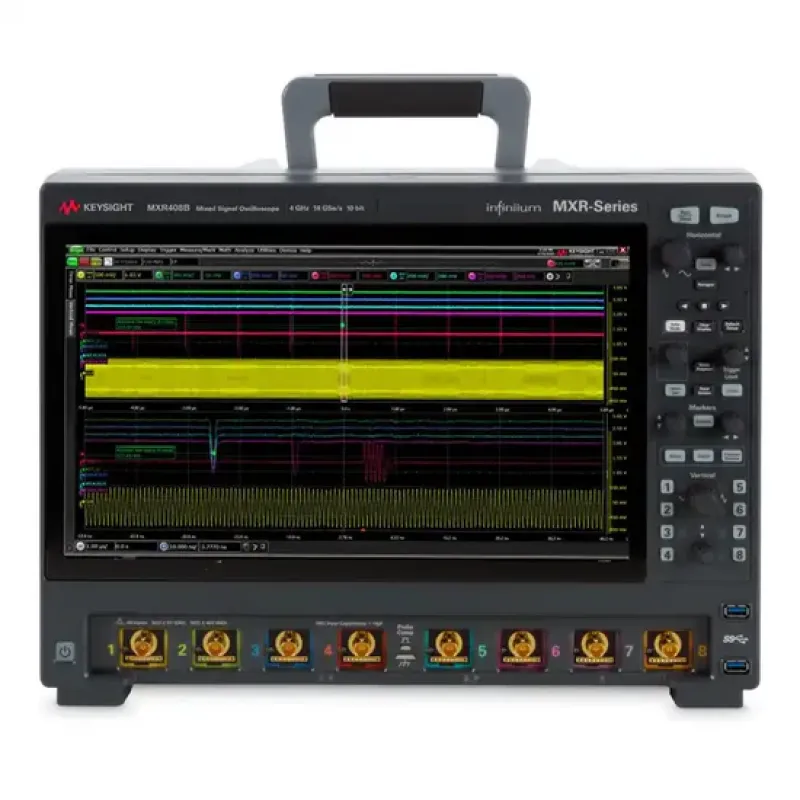

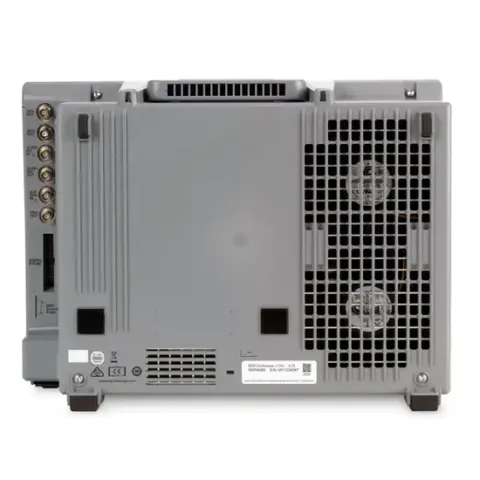

Keysight MXR408A and MXR408B Oscilloscopes

Keysight MXR408A Infiniium MXR Series Oscilloscope

The Keysight MXR408A oscilloscope offers a 4 GHz bandwidth on all 8 analog channels. It integrates 8 instruments into one, including an oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, and waveform generator. With an effective number of bits (ENOB) up to 9.0 and a noise level as low as 43 µV, it ensures high accuracy. The oscilloscope features ASIC technology from the Infiniium UXR-Series for enhanced test speeds and supports full upgradeability.

Keysight MXR408B Infiniium MXR B-Series Oscilloscope

The MXR408B model retains all the features of the MXR408A but provides:

Up to 70% faster jitter analysis speed.
Up to 65% faster power integrity analysis.
Up to 45% faster FFT processing.
Up to 15% faster USB 2.0 compliance testing.

Additionally, the standard configuration includes InfiniiScan and Wave Gen features.

Comparison Table of Key Specifications

Specification	Keysight MXR408A	Keysight MXR408B
Bandwidth	4 GHz on all 8 analog channels	4 GHz on all 8 channels
Number of Channels	8 analog channels	8 channels
Maximum Memory Depth	1.6 Gpts	1.6 Gpts
Maximum Sampling Rate	16 GSa/s	16 GSa/s
Instrument Integration	8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, waveform generator	8-in-1: oscilloscope, logic analyzer, protocol analyzer, real-time spectrum analyzer, waveform generator
Hardware Acceleration	Yes	Yes
Upgradability	Fully upgradeable, including bandwidth expansion	Fully upgradeable, including up to 6 GHz bandwidth
Additional Features	Fast test speeds with ASIC technology, ENOB up to 9.0, noise as low as 43 µV	70% faster jitter analysis, 65% faster power integrity analysis, 45% faster FFTs, 15% faster USB 2.0 compliance, InfiniiScan and Wave Gen included
