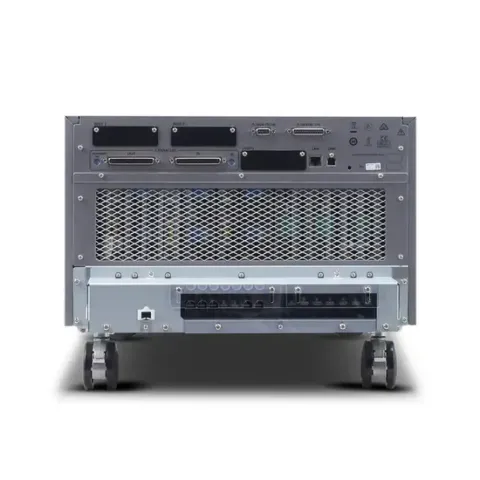

Keysight AC6906H is a three-phase AC power source that provides up to 6 kVA power with a maximum voltage of 320 Vrms and a frequency range up to 5000 Hz. This device combines the functionalities of a multimeter, harmonic analyzer, and power analyzer, making it a versatile solution for testing and analyzing electronic devices.

Key Features

• Maximum Output Power: 6 kVA.
• Output Voltage Range: up to 320 Vrms (AC) and up to 452 V (DC).
• Maximum Output Current: 20 A (AC) and 10 A (DC).
• Frequency Range: 40 Hz to 5000 Hz.
• Operating Modes: AC, DC, or AC+DC.
• Connectivity Interfaces: LAN (LXI Core) and USB standard; GPIB optional.



Features

• Built-in Tests: power line disturbance simulation, output sequencing, harmonic analysis, and signal generation.
• Protection: overcurrent, overvoltage, undervoltage, and output disconnection.
• Programming: smooth start/stop functions, analog and digital control.



Applications

• Aviation Equipment Testing: compliant with RTCA DO-160 and MIL-STD-704 standards, making it ideal for aviation systems.
• Power Supply Simulation: verifies device compatibility with various global power standards, including dips, outages, and other anomalies.
• Harmonic Analysis: evaluates voltage and current harmonic content up to the 50th order for detailed power quality analysis.



Additional Information

• Intuitive Interface: a 5-inch color display shows key parameters for all phases simultaneously, simplifying setup and monitoring.
• Flexible Connectivity: supports LAN, USB, and optionally GPIB for seamless integration into automated test systems.
• Compact Design: occupies minimal space, making it suitable for both laboratory and production environments.



Keysight AC6906H is a reliable and versatile solution for testing and analyzing electronic devices in aviation, automotive, and industrial applications.
