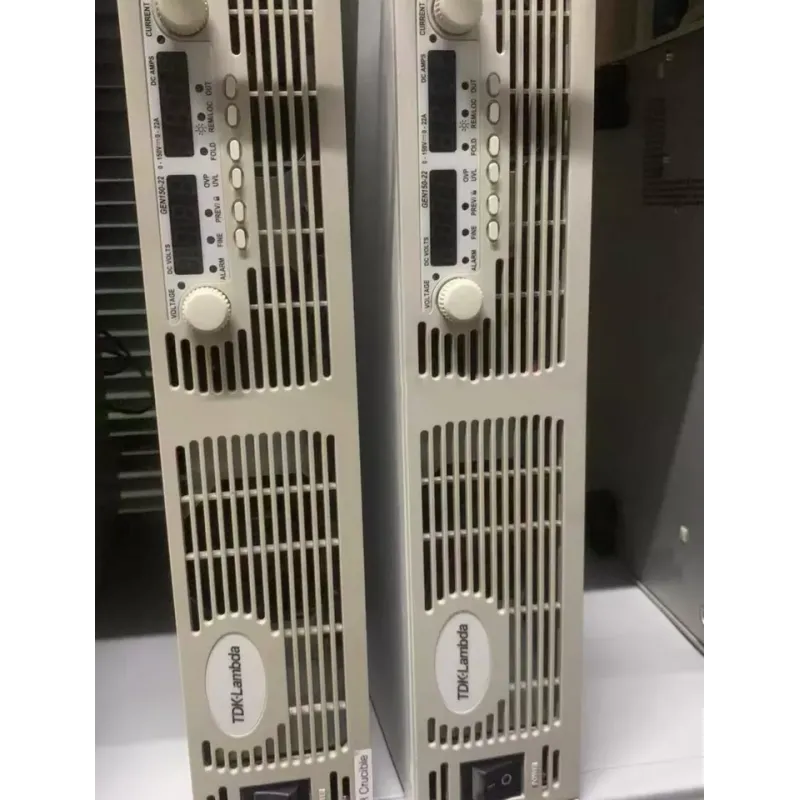

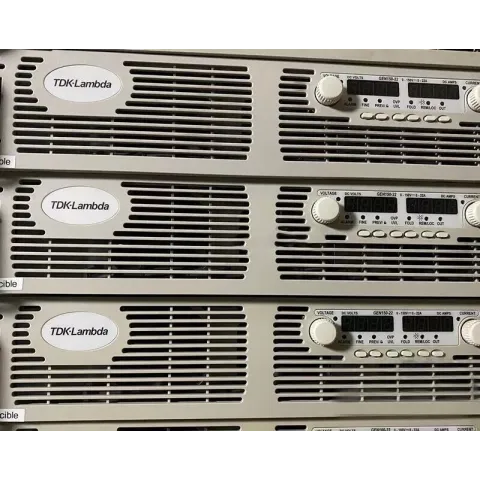

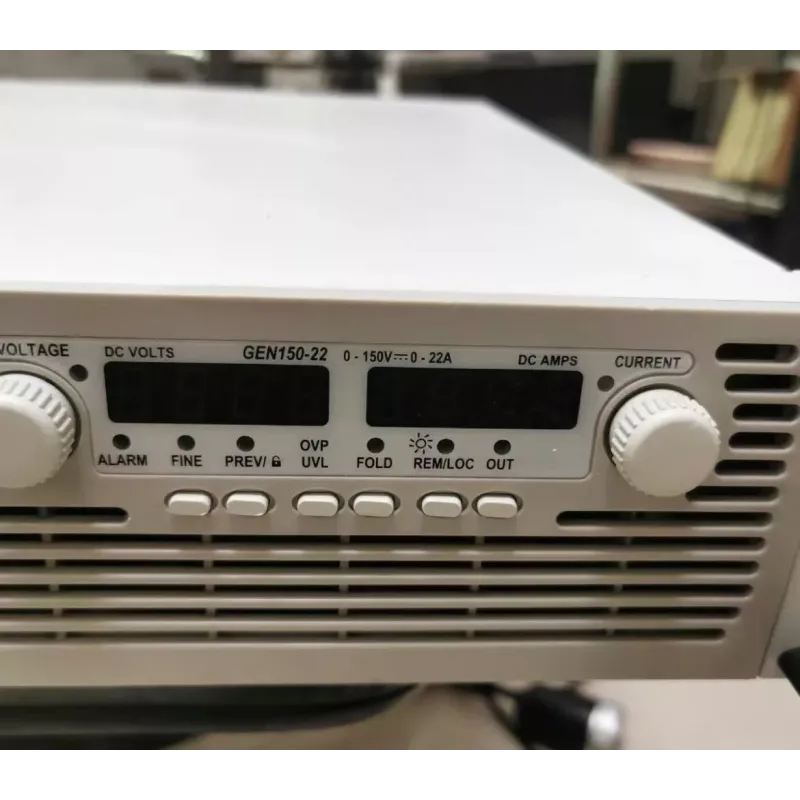

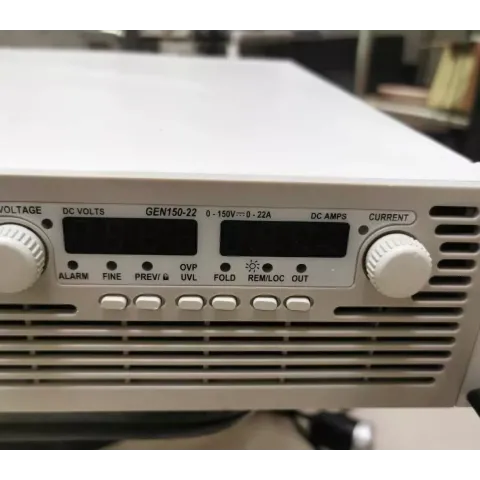

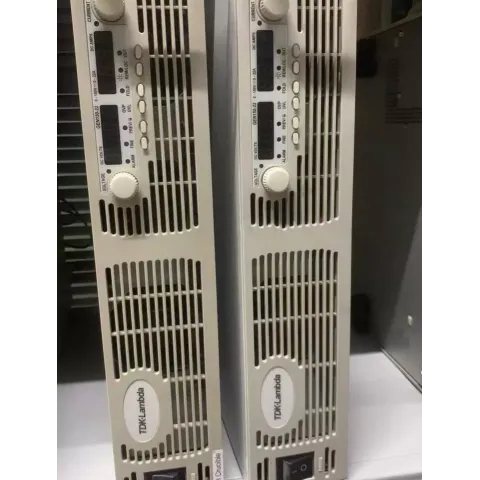

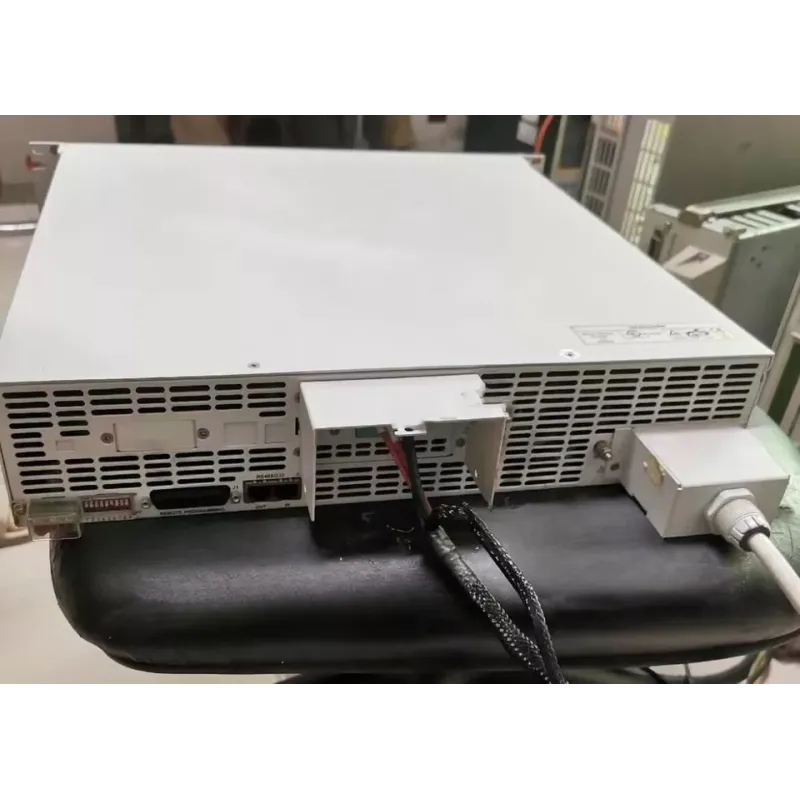

TDK-Lambda GEN150-22 Programmable DC Power Supply

TDK-Lambda GEN150-22 is part of the GEN series and is designed for use in laboratories, production, and automated test systems. It provides high precision and stability of output parameters, as well as a wide range of voltage and current settings.

Main Specifications:

• Output Voltage: 0–150 V
• Output Current: 0–22 A
• Output Power: up to 3.3 kW
• Voltage Programming Accuracy: 0.05% of nominal value
• Current Programming Accuracy: 0.1% of nominal value
• Ripple and Noise (20 Hz – 20 MHz):
  • Voltage: <50 mV RMS
  • Current: <100 mA RMS
• Response Time: <10 ms to recover within 1% of set value for load changes from 10% to 90%
• Control Interfaces: standard RS-232/RS-485; optional GPIB, LAN, and USB available
• Dimensions: 2U (height) x 19" (width) x 507 mm (depth)
• Weight: approximately 10 kg

Features:

• Support for both local and remote control with the ability to program via various interfaces.
• Series and parallel connection functions to increase output voltage or current.
• Protection against overvoltage (OVP), overcurrent (OCP), and overheating for safe operation.
• Ability to save and recall preset configurations to speed up testing processes.
• High efficiency and active power factor correction (PFC) to reduce energy consumption and minimize harmonic distortion.

TDK-Lambda GEN150-22 ensures reliable and precise power delivery for various applications requiring a programmable DC power source with high performance characteristics.
