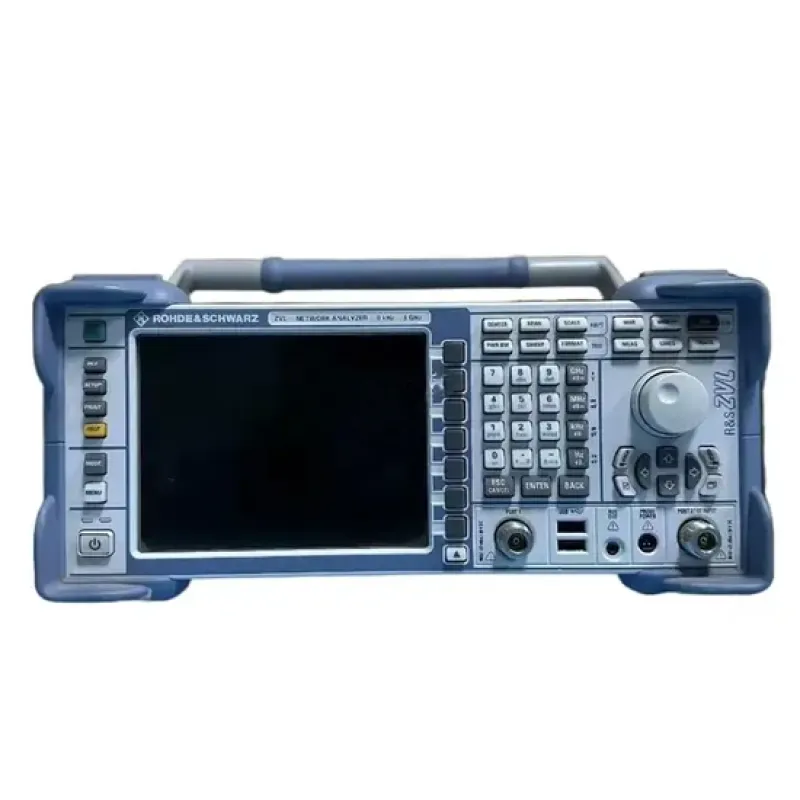

Rohde & Schwarz ZVL3-75 - Vector Network Analyzer

Rohde & Schwarz ZVL3-75 is a portable vector network analyzer with 75 Ω impedance, designed for S-parameter measurements in the frequency range of 9 kHz to 3 GHz.

Main Features:

• Frequency Range: 9 kHz – 3 GHz.
• Dynamic Range: 85 dB to 123 dB (depending on frequency).
• Output Power: -60 dBm to +10 dBm.
• Number of Measurement Points: 2 to 4001 points per trace.
• Measurement Speed: Less than 50 ms per point.
• Connectivity Interfaces: Standard LAN and USB ports; optional IEEE interface available.
• Power Supply: Battery operation supported, ensuring mobility and convenience in field applications.



Applications:

Rohde & Schwarz ZVL3-75 is ideal for the development, production, and servicing of 75 Ω components such as cable television and telecommunication devices.

Additional Features:

• Optional spectrum analyzer extending the instrument's functionality.
• Compact and lightweight design (less than 7 kg) for easy transport and space-saving usage.
