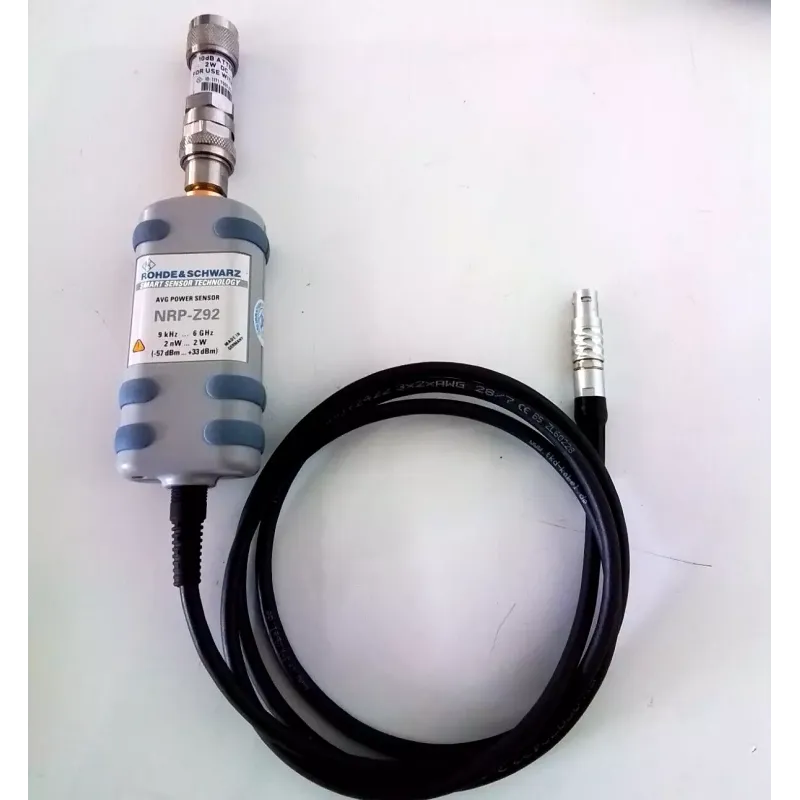

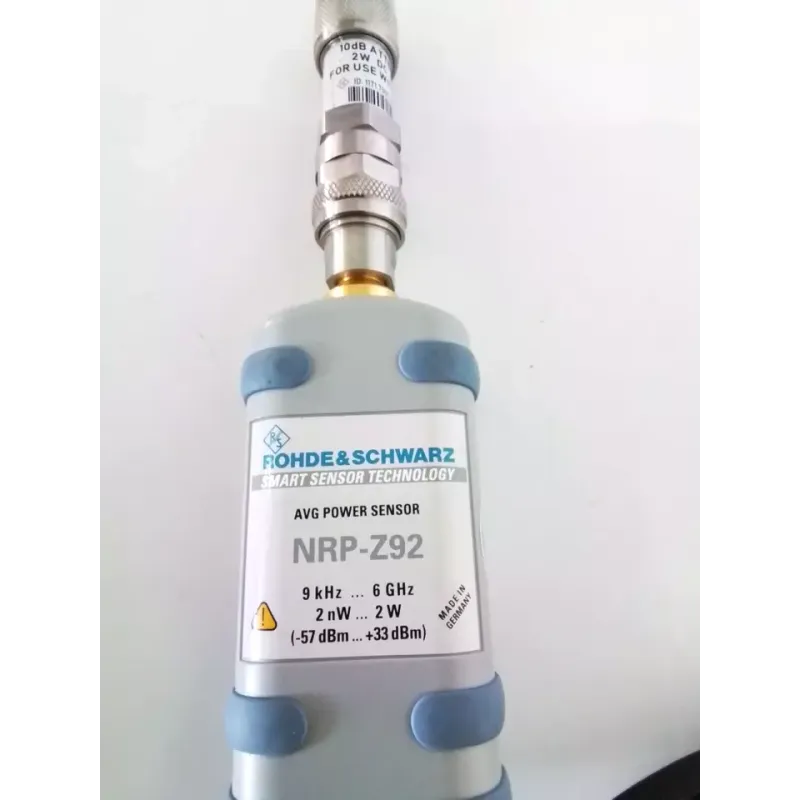

Rohde & Schwarz NRP-Z92 – Average Power Sensor

The Rohde & Schwarz NRP-Z92 average power sensor is specifically designed for applications in electromagnetic compatibility (EMC) and covers a frequency range from 9 kHz to 6 GHz. It provides highly accurate average power measurements over a wide dynamic range.

Main Specifications:

• Frequency Range: 9 kHz – 6 GHz
• Power Measurement Range: from -67 dBm to +23 dBm
• Connector: N-type
• Dynamic Range: up to 90 dB
• Connection Interface: USB

Features:

• Three-path diode sensors ensure high measurement accuracy and minimal modulation impact on results.
• Excellent impedance matching reduces reflections and improves measurement accuracy.
• Suitable for measurements in radio telecommunications and critical low-frequency ranges.

The NRP-Z92 sensor is ideal for professionals working in the EMC field, requiring precise and reliable average power measurements over a broad frequency range.
