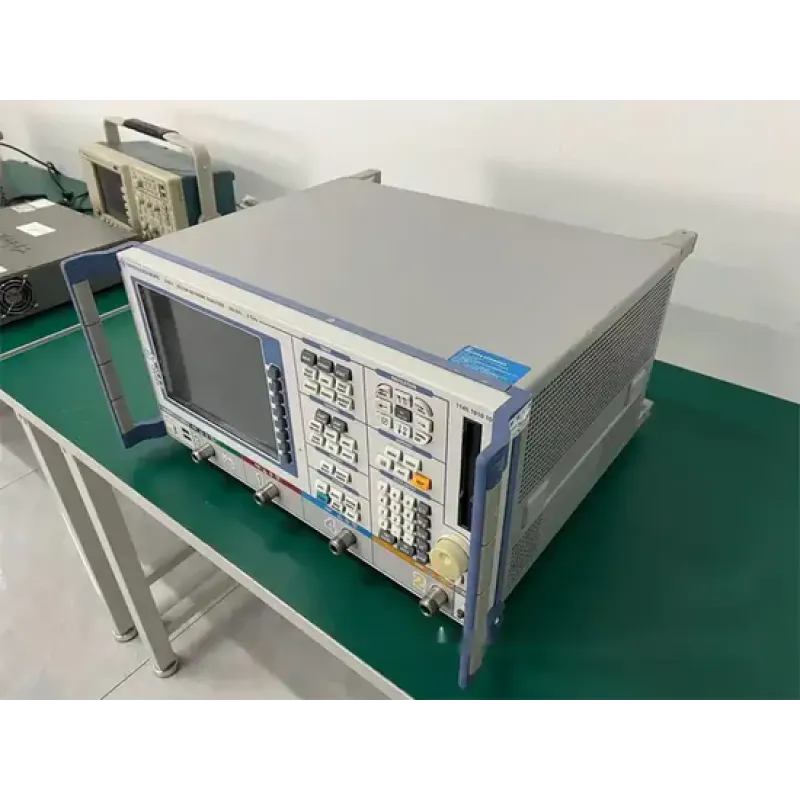

Vector Network Analyzer Rohde & Schwarz ZVB8

The Rohde & Schwarz ZVB8 vector network analyzer is a high-performance instrument designed for universal measurements on passive and active components in the frequency range from 300 kHz to 8 GHz. It is particularly effective for multiport measurements and balanced device analysis.

Main Technical Specifications:

• Frequency Range: 300 kHz – 8 GHz
• Number of Ports: 2 or 4
• Dynamic Range: >123 dB (depending on frequency)
• Maximum Output Power: 0 dBm
• Frequency Resolution: 1 Hz
• Measurement Time per Point: <3.5 ms



Features:

• High Measurement Speed: Fast result acquisition thanks to an optimized device architecture.
• User-Friendly Interface: Intuitive user interface with customizable data display options.
• Flexible Configuration: Supports various measurement configurations to adapt to specific tasks.
• Compact Design: Small form factor and ergonomic design for convenient use in laboratory environments.
