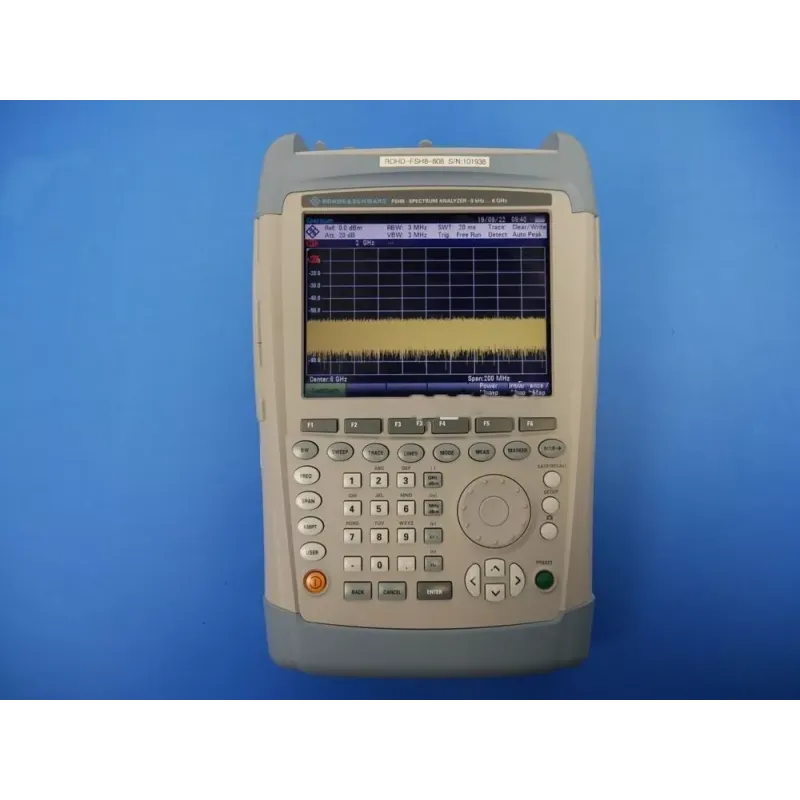

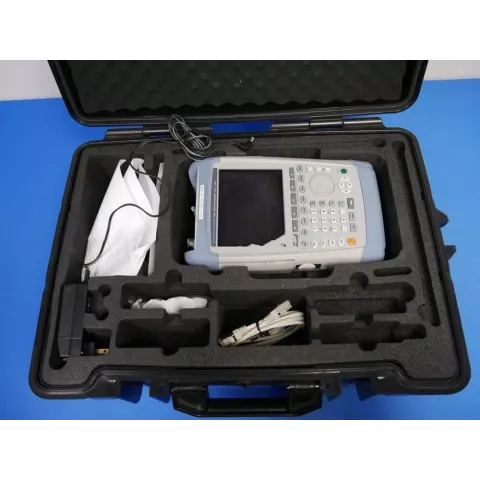

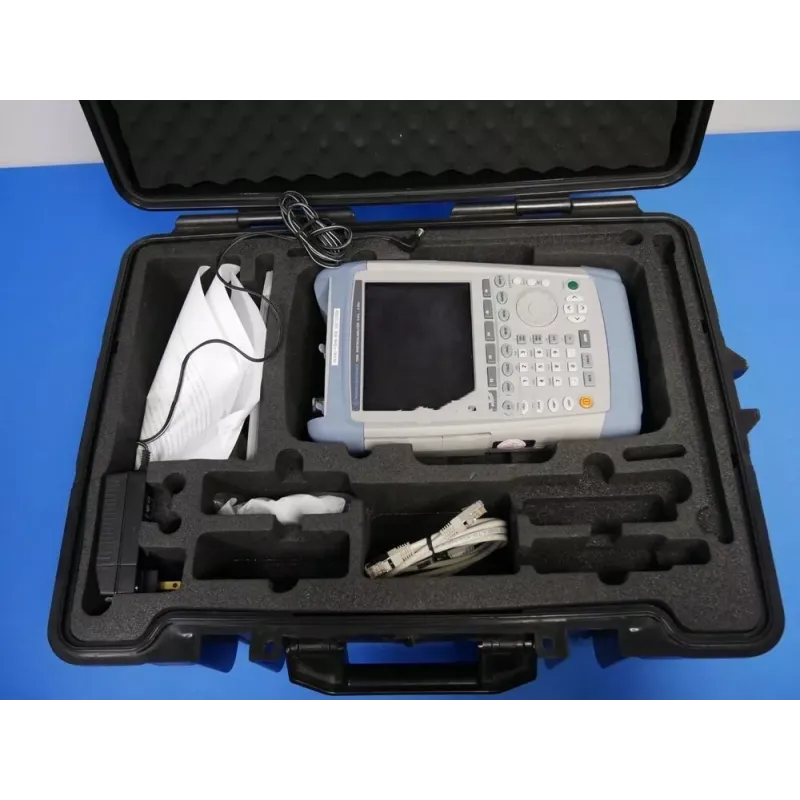

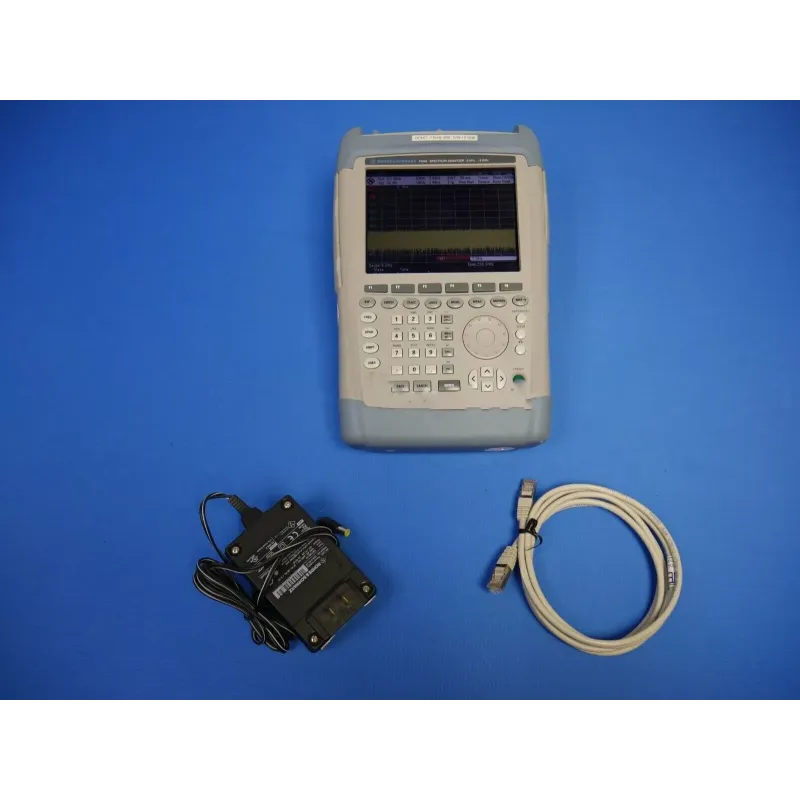

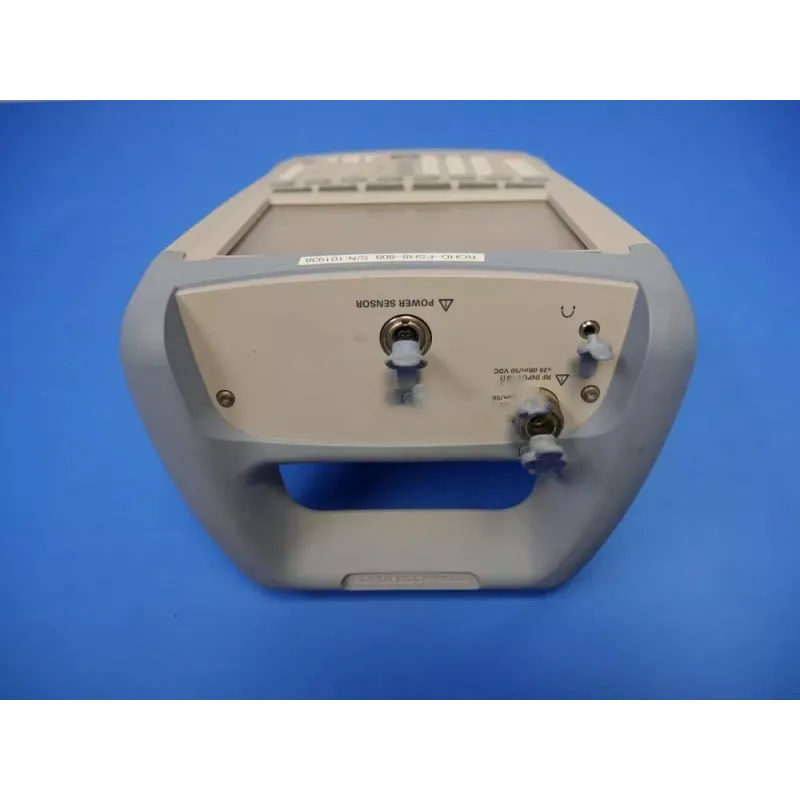

Rohde & Schwarz FSH8 Spectrum Analyzer

The Rohde & Schwarz FSH8 spectrum analyzer is a portable high-precision instrument designed for analyzing radio frequency signals in the range of 9 kHz to 8 GHz. Its rugged construction and extensive functionality make it an ideal tool for both laboratory and field use.

Main Specifications:

• Frequency Range: 9 kHz to 8 GHz.
• High Sensitivity: Less than –141 dBm (1 Hz); with a preamplifier — less than –161 dBm (1 Hz).
• Low Measurement Error: Less than 1 dB.
• Resolution Bandwidth (RBW): 10 Hz to 3 MHz.
• Built-in Tracking Generator and VSWR Bridge with Power Injector.
• Two-Port Network Analyzer.
• Replaceable Lithium-Ion Battery: Provides up to 4.5 hours of operation.
• Rugged, Weatherproof Housing: Suitable for use in harsh environments.

Functional Capabilities:

• Spectrum Analysis: Enables detailed analysis of signal frequency characteristics.
• Power Measurement: Accurate determination of signal levels.
• Cable and Antenna Testing: Evaluation of cable line and antenna characteristics.
• Two-Port Vector Network Analysis: Measurement of S-matrix parameters to assess component and system characteristics.

Additional Features:

• Interfaces: LAN, USB, and SD card slot for easy data transfer and software updates.
• Display: Clear screen with a resolution of 640×480 pixels for comfortable operation.
• Software: Includes software for documenting measurement results and configuring the device.

The R&S®FSH8 spectrum analyzer combines high precision, reliability, and versatility, making it an essential tool for professionals in telecommunications, radio engineering, and electronics.
