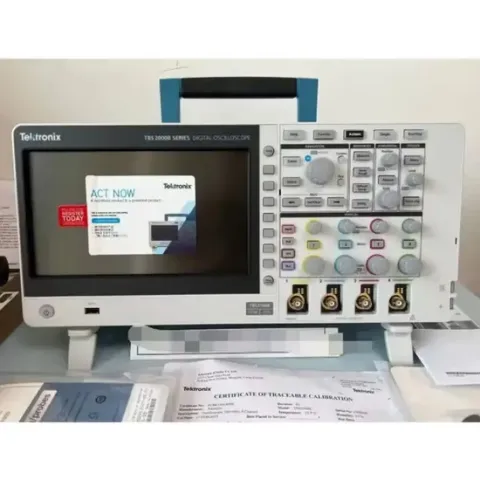

Tektronix TBS2104B - Digital Oscilloscope

Tektronix TBS2104B is a digital storage oscilloscope designed for precise signal analysis in various fields of electronics and electrical engineering.

Main Features of TBS2104B:

• Number of Channels: 4 analog channels.
• Bandwidth: 100 MHz.
• Sample Rate: up to 2 GS/s.
• Record Length: 5 million points per channel.
• Display: 9-inch color WVGA screen with 15 horizontal divisions.
• Probe Interface: TekVPI, supporting passive and active probes.
• Automatic Measurements: 32 built-in automatic measurements with on-screen hints.
• Analysis Features: Fast Fourier Transform (FFT) for spectral analysis.
• Connectivity: USB 2.0, Ethernet, and Wi-Fi for data storage and remote management.
• Warranty: 5 years.



TPP0200 Probe:

TPP0200 is a passive voltage probe compatible with the TBS2104B oscilloscope.

Main Features of TPP0200:

• Bandwidth: 200 MHz.
• Attenuation Ratio: 10X.
• Input Resistance: 10 MΩ.
• Cable Length: 1.3 meters.
• Compatibility: Oscilloscopes with 1 MΩ input resistance and 13 pF input capacitance.
• Applications: Measurements in low-frequency ranges, including power supplies, computer systems, and amplifiers.



Note:

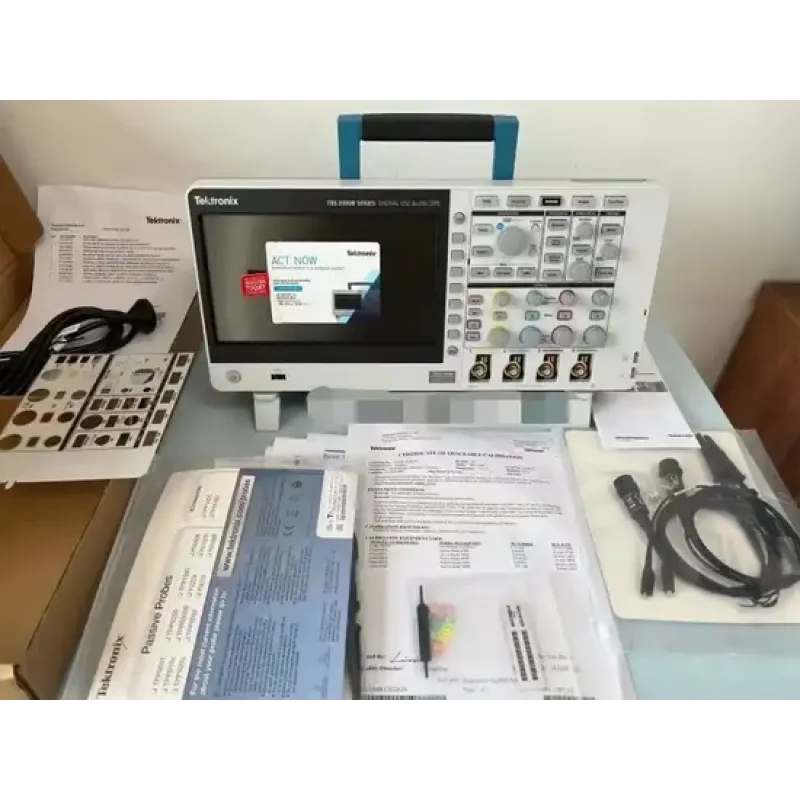

The TBS2104B oscilloscope comes with four TPP0200 probes, ready to use right out of the box.
