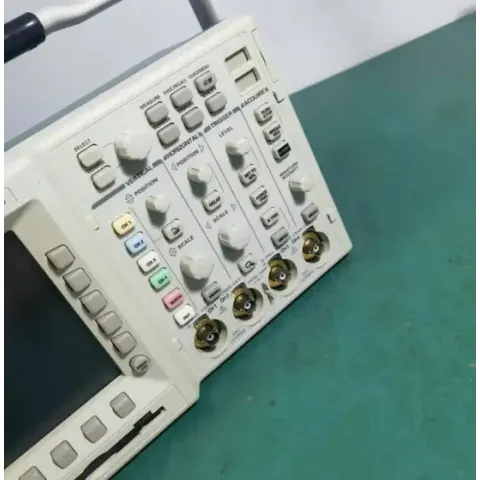

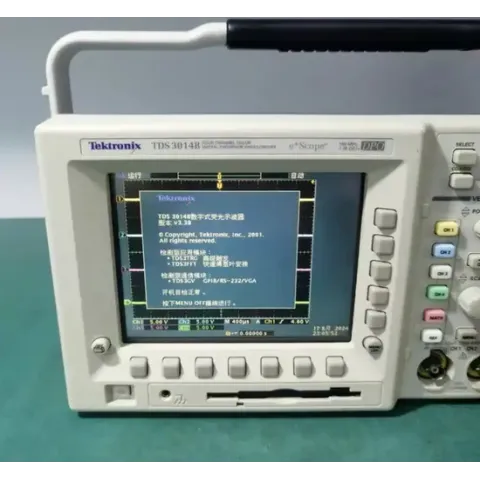

Tektronix TDS3014B Digital Oscilloscope

The Tektronix TDS3014B is a four-channel digital phosphor oscilloscope offering a bandwidth of 100 MHz and a maximum real-time sampling rate of 1.25 GS/s per channel. This model is part of the TDS3000B Series, known for its performance and portability.

Key Specifications:

• Bandwidth: 100 MHz
• Channels: 4
• Sampling Rate: 1.25 GS/s per channel
• Record Length: 10,000 points
• Display: Full VGA color LCD
• Waveform Capture Rate: Up to 3,600 waveforms per second



Features:

• Digital Phosphor Technology: Provides real-time intensity grading, offering a three-dimensional perspective of signal behavior.
• WaveAlert®: Automatic waveform anomaly detection that alerts users to deviations in signal patterns.
• Advanced Triggering Options: Includes edge, video, logic, pulse, and communication triggers for comprehensive signal analysis.
• Connectivity: Equipped with a built-in Ethernet port for remote control via e*Scope®, as well as GPIB, RS-232, and VGA interfaces through optional modules.
• Portability: Lightweight design with optional internal battery operation, allowing up to three hours of use without line power.



Optional Application Modules:

• TDS3AAM: Advanced Analysis Module for extended math capabilities and additional automated measurements.
• TDS3LIM: Limit Testing Module for fast, accurate Go/No-Go verification.
• TDS3TMT: Telecommunications Mask Testing Module for compliance testing per ITU-T G.703 and ANSI T1.102 standards.
• TDS3VID: Extended Video Module for video signal analysis and triggering.
