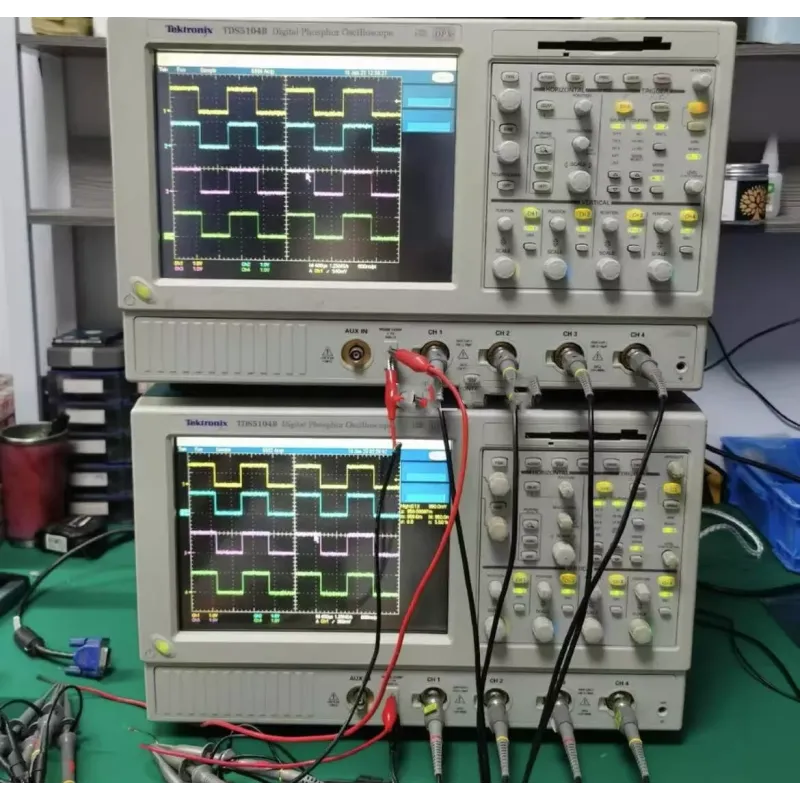

Tektronix TDS5104B DPO Oscilloscope

The Tektronix TDS5104B digital phosphor oscilloscope is a high-performance instrument designed for precise signal analysis in various fields of electronics and telecommunications.

Main Specifications:

• Bandwidth: 1 GHz, providing detailed analysis of high-frequency signals.
• Number of Channels: 4 independent channels for simultaneous monitoring of multiple signals.
• Sampling Rate: up to 5 GS/s per channel, ensuring accurate reproduction of fast transient processes.
• Record Length: up to 16M points per channel, allowing extended signal capture for further analysis.

Features:

• Digital Phosphor Oscilloscope (DPO) Technology: provides a high acquisition rate of up to 100,000 waveforms per second, allowing detection of rare and random signal events.
• MyScope™ Custom Control Windows: enables users to create personalized tool panels for enhanced efficiency.
• Intuitive Right-Click Menus: provides quick access to frequently used functions and settings.
• OpenChoice® Platform on Windows 2000: offers built-in networking capabilities and data analysis tools.

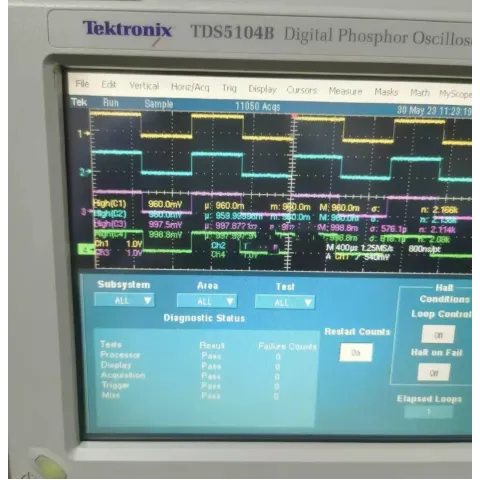

• Bright 10.4-inch Touchscreen Display: ensures ease of use and clear signal representation.

Applications:

The TDS5104B is ideal for digital design and debugging, mask testing for telecommunications and video standards, transient process analysis, power measurements, as well as video signal and spectral analysis.

Included Accessories:

• One passive probe P5050 500 MHz 10x per channel.
• Accessory bag.
• Front protective cover.
• Mouse.
• Quick Start User Manual.
• CD-ROM with TDS5000B series software.
• CD-ROM for operating system recovery.
• GPIB Programmer’s Reference.
• CD-ROM with additional application software.
• Getting Started with OpenChoice Manual.
• Calibration certificate verifying NIST traceability, Z540-1 compliance, and ISO9001 registration.

With its combination of advanced features and high performance, the Tektronix TDS5104B is a reliable tool for engineers and professionals working in the field of electronic system design and testing.
