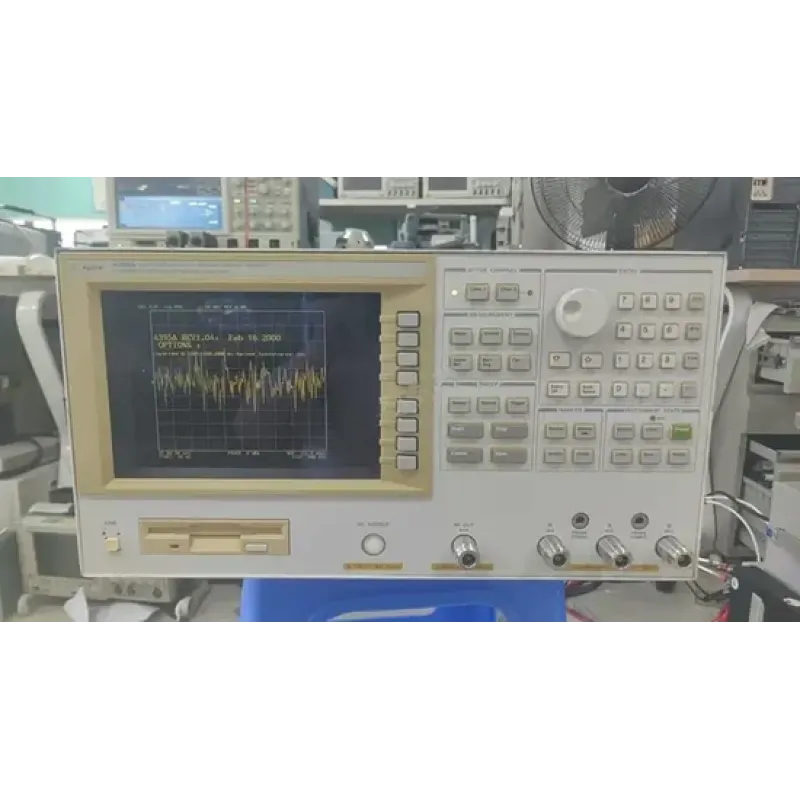

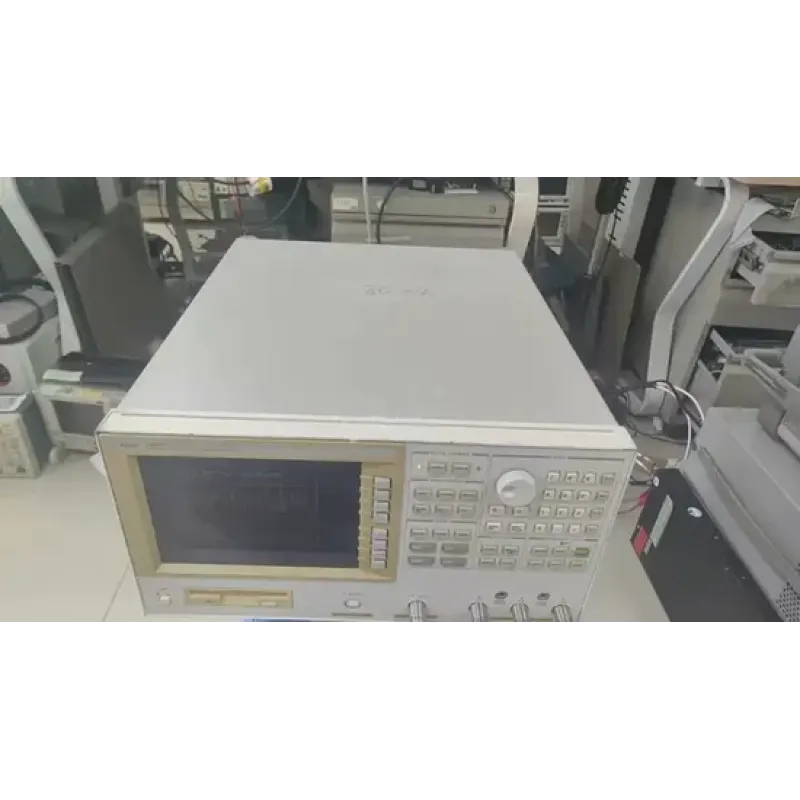

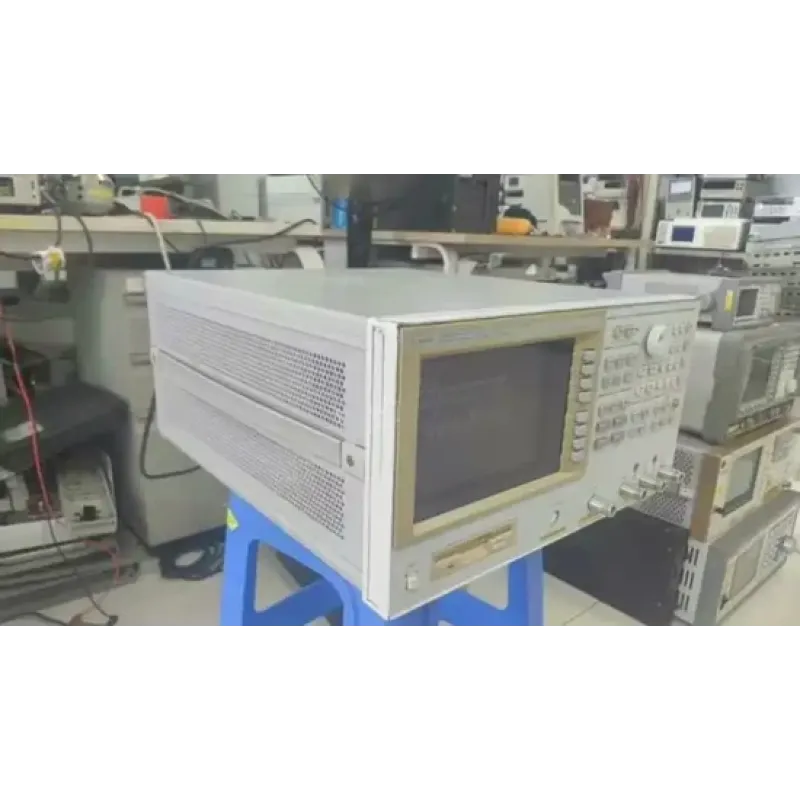

Agilent 4395A - Network, Spectrum, and Impedance Analyzer

Agilent 4395A combines the functionalities of a vector network analyzer, spectrum analyzer, and impedance analyzer, providing a wide range of measurements for various applications.

Main Features:

• Frequency Range: 10 Hz – 500 MHz.
• Frequency Resolution: 1 mHz.
• Dynamic Range: 115 dB at 10 Hz IF bandwidth.
• Level Accuracy: ±0.8 dB at 50 MHz, –20 dBm.
• Sensitivity: –145 dBm/Hz at 10 MHz.
• Resolution Bandwidth: 1 Hz – 1 MHz (1-3-10 steps).



Operating Modes:

1. Network Analyzer:

• Measures S-parameters, such as transmission and reflection coefficients.
• Full two-port calibration for enhanced measurement accuracy.

2. Spectrum Analyzer:

• Measures signal power in the frequency domain.
• Time-gated spectrum analysis (Option 4395A-1D6) for isolating signals in specific time intervals.

3. Impedance Analyzer (Option 4395A-010):

• Measures impedance parameters like |Z|, θz, R, X, |Y|, θy, G, B, Cs, Cp, Ls, Lp, Rp, Rs, D, Q.
• Frequency Range: 100 kHz – 500 MHz.



Additional Options:

• High-stability frequency reference (Option 4395A-1D5): provides improved frequency accuracy.
• Time-gated spectrum analysis (Option 4395A-1D6): analyzes signals in specific time intervals.
• Impedance measurement function (Option 4395A-010): uses the Agilent 43961A impedance test kit.
