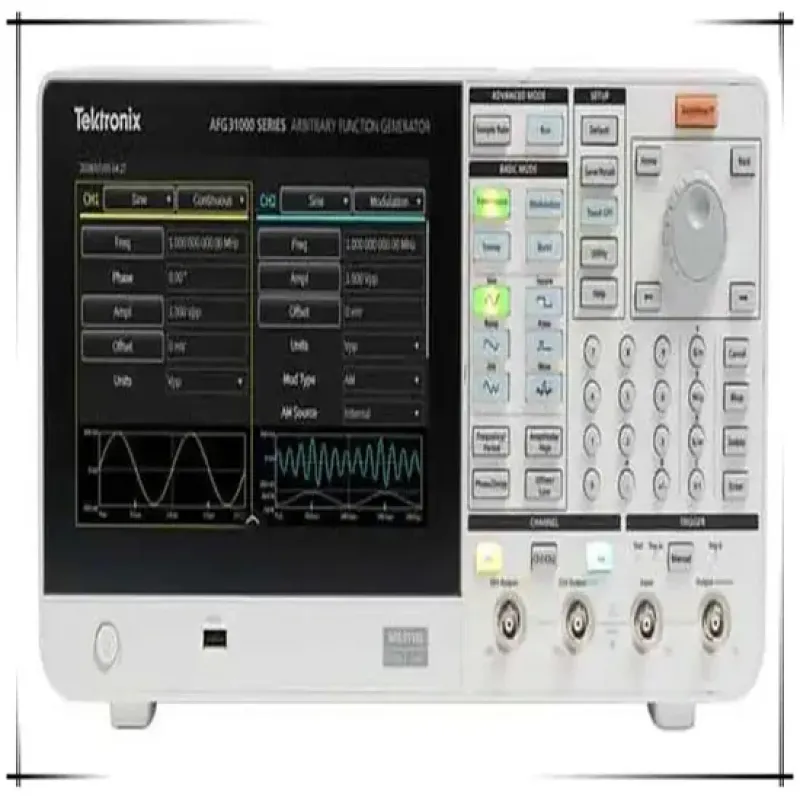

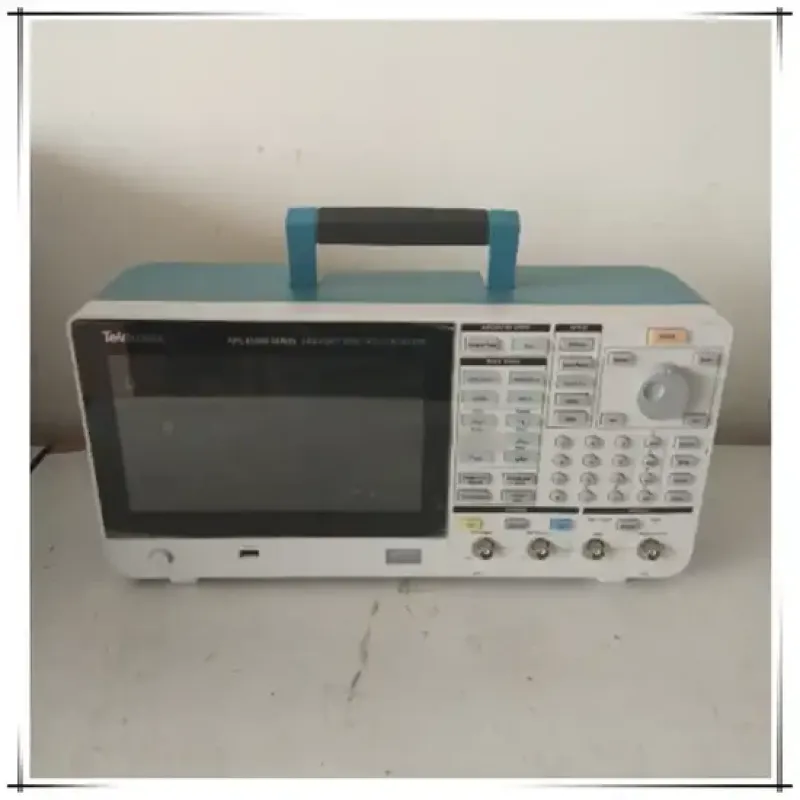

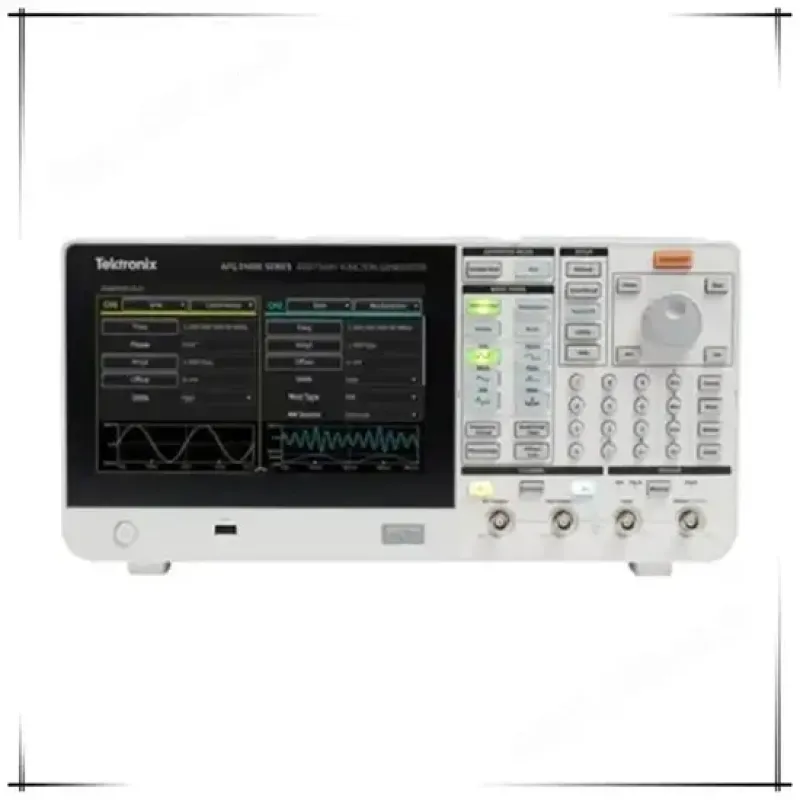

The Tektronix AFG31102 arbitrary function generator is a high-performance device designed to generate various signals with frequencies up to 100 MHz. It is widely used in electronic device development, testing, and educational purposes.

Main Features

• Number of Channels: 2 independent channels
• Frequency Range: from 1 µHz to 100 MHz
• Sampling Rate: 1 GS/s
• DAC Resolution: 14-bit
• Arbitrary Waveform Memory: up to 16 M points per channel
• Output Amplitude: from 1 mV to 10 V peak-to-peak on a 50 Ω load
• Standard Signal Forms: sine, square, triangle, ramp, pulse, noise, and others
• Modulation Types: AM, FM, PM, FSK, PWM
• Connection Interfaces: USB, GPIB, and LAN for remote control and integration into automated test systems



Features

• InstaView™ Technology: enables real-time observation of the output waveform without an external oscilloscope, ensuring measurement accuracy
• ArbBuilder: built-in tool for creating and editing arbitrary waveforms directly on the device
• Touchscreen: 9-inch capacitive display for quick access to settings



Applications

• Development and testing of electronic devices
• Simulation of sensor signals
• Functional testing of components and systems
• Educational and training purposes



With high signal quality, diverse functions, and a user-friendly interface, the Tektronix AFG31102 is a reliable tool for professionals in electronics and related fields.
