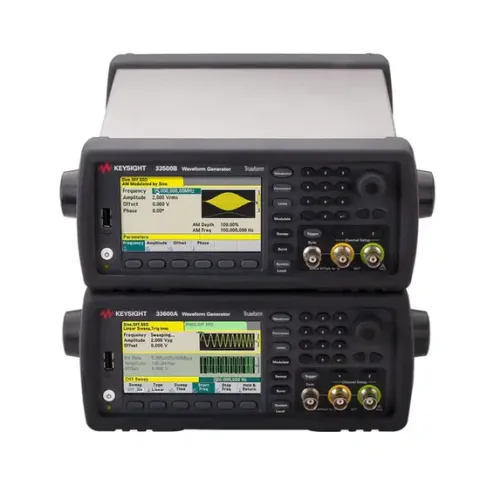

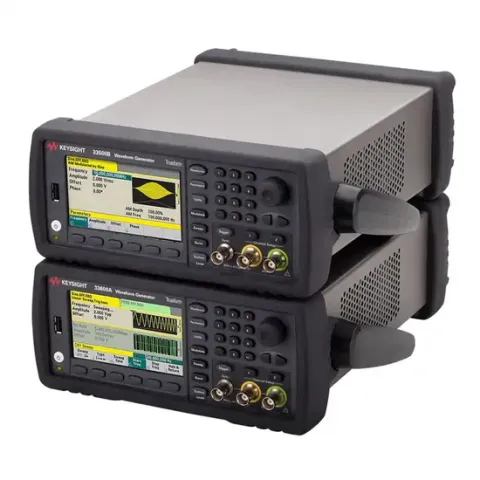

The Keysight 33622A is a high-performance device with two channels capable of generating signals up to 120 MHz. Utilizing exclusive Trueform technology, it delivers exceptional signal quality, outperforming traditional DDS-based generators.

Key Features

• Trueform Technology: Generates signals with minimal harmonic distortion and jitter, enhancing measurement accuracy.
• High Sampling Rate: 1 GSa/s ensures high precision for arbitrary waveforms.
• Amplitude Resolution: 14-bit resolution with a range of 1 mV to 10 V (peak-to-peak).
• Memory Capacity: 4 Mpts per channel, expandable to 64 Mpts.
• Convenient Connectivity: USB, LAN (LXI-C), and optional GPIB interfaces.
• Pulse Generation: Supports frequencies up to 100 MHz with jitter less than 1 ps.
• Arbitrary Waveforms: Allows for the creation of complex signals with sequential playback of segments.

Applications

The Keysight 33622A waveform generator is ideal for testing and developing modern equipment, including audio systems, communication systems, and scientific research, where high signal precision and stability are required.

Additional Benefits

• Signal Editing: Create signals using the built-in editor or import data from an oscilloscope.
• Software: Utilize 33503A BenchLink Waveform Builder Pro for creating and configuring complex waveforms.
