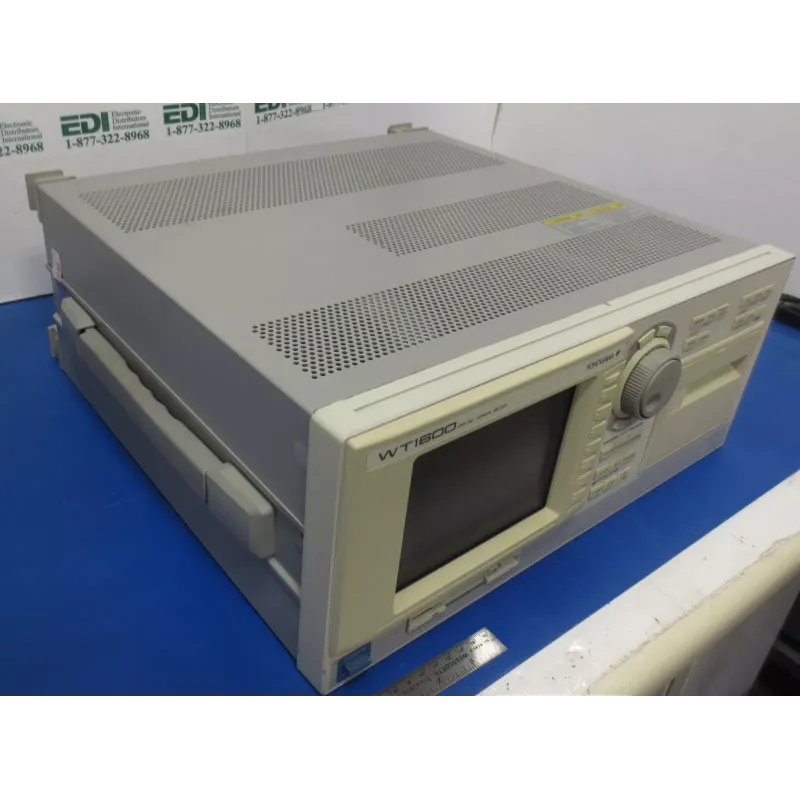

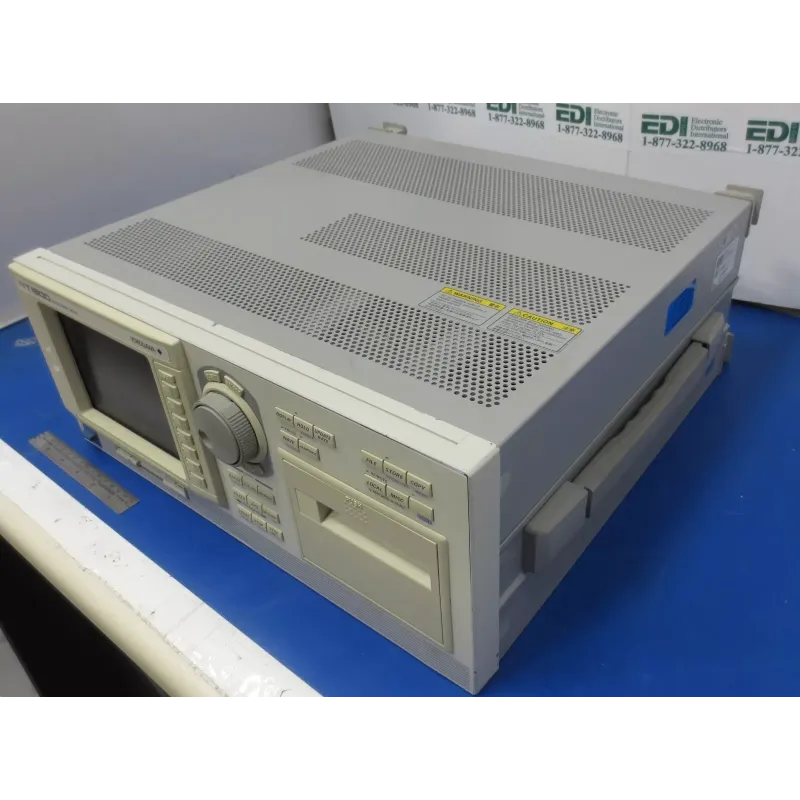

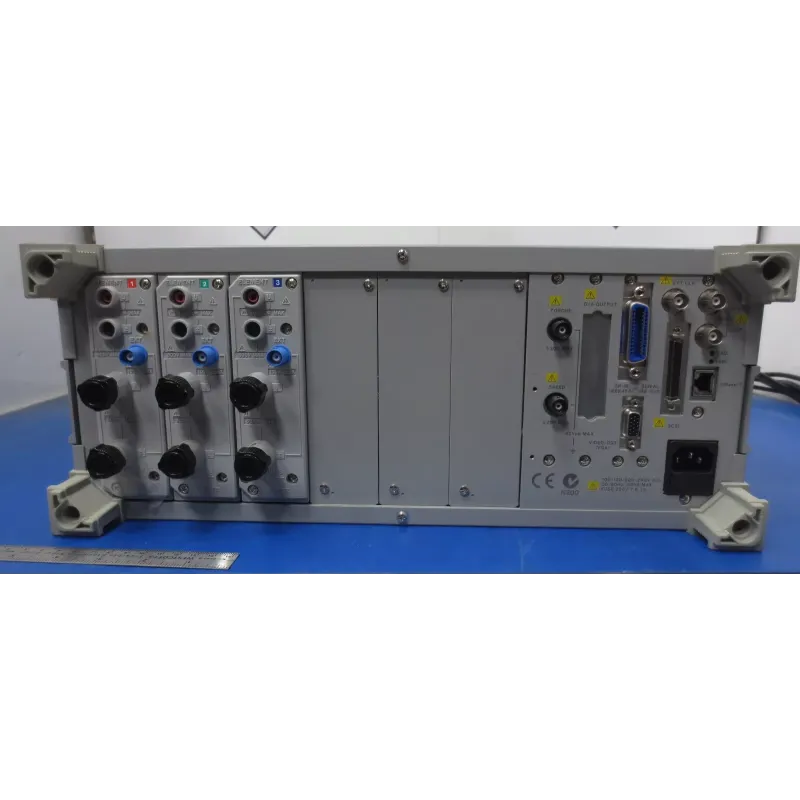

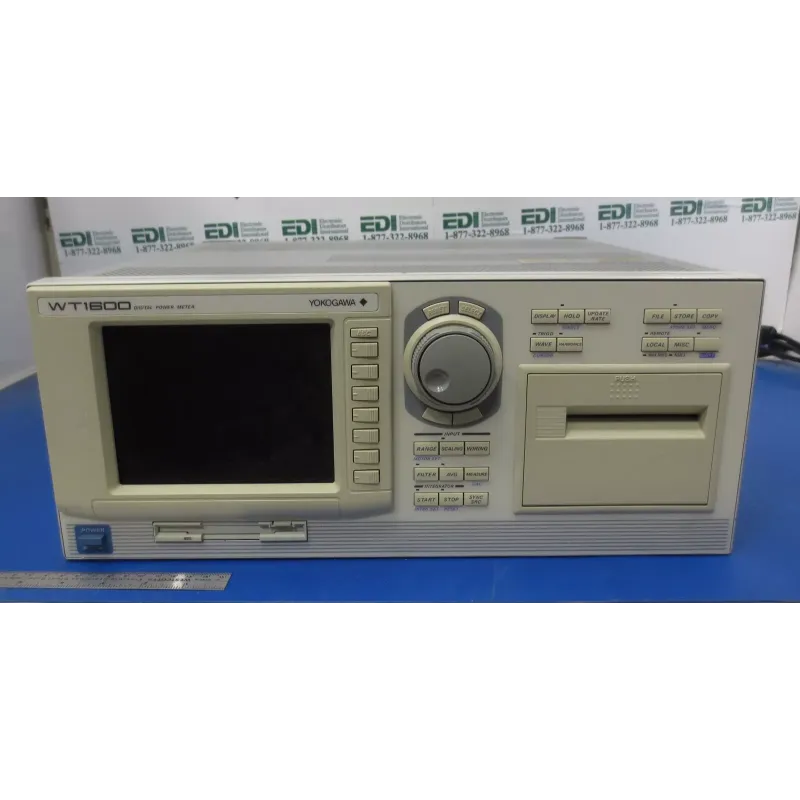

Yokogawa WT1600 Digital Power Analyzer

The Yokogawa WT1600 is a digital power analyzer designed for high-precision measurements in various applications, including energy-efficient equipment and large loads. The device supports up to six phase inputs, allowing input and output signals of inverters to be measured using a single unit.

Main Specifications:

• Voltage Range: from 1.5 V to 1000 V
• Current Range:
  • 5 A element: from 10 mA to 5 A
  • 50 A element: from 1 A to 50 A
• Frequency Bandwidth:
  • 5 A element: from DC to 1 MHz
  • 50 A element: from DC to 100 kHz
• Data Recording Speed: up to 20 samples per second (every 50 ms)
• Measurement Accuracy: high accuracy with an extended guaranteed accuracy range from 1% to 110% of the nominal range for AC and from 0% to 110% for DC
• Display Functions: various formats, including numeric data, oscillograms, bar graphs, and vector harmonic diagrams
• Interfaces: optional Ethernet (10BASE-T), SCSI, and analog outputs (up to 30 channels)
• Built-in Printer: optional for printing screen images and data
