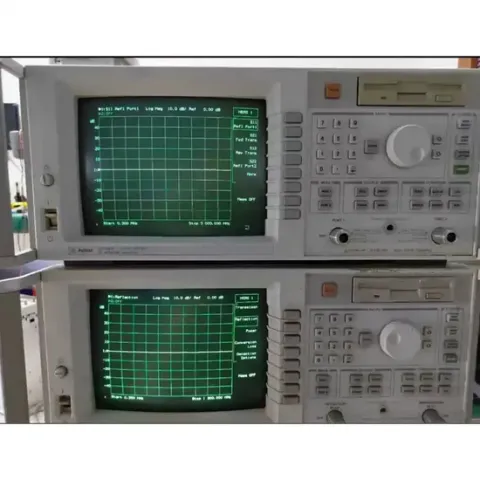

HP/Agilent 8712ES - Network Analyzer 300 kHz - 1.3 GHz

HP/Agilent 8712ES is a vector network analyzer with S-parameters designed for measurements in the frequency range of 300 kHz to 1.3 GHz. The device includes a built-in test set for S-parameter measurements with full two-port vector error correction, ensuring high measurement accuracy.

Main Features:

• Frequency Range: 300 kHz to 1.3 GHz.
• Dynamic Range: 100 dB.
• Sweep Speed: up to 40 ms/sweep.
• Source Resolution: 1 Hz.
• Source Attenuator: Built-in 60 dB attenuator with power level adjustment up to 70 dB.
• Available Versions: 50-ohm and 75-ohm models.
• Interfaces: Standard LAN and built-in Agilent Instrument BASIC (IBASIC).



Functional Capabilities:

• Two Independent Channels: Enable simultaneous measurement and display of two parameters, such as S21 (transmission) and S11 (reflection), in various formats.
• Detection Modes: Narrowband and wideband for flexible measurements.
• Automation: Built-in IBASIC programming language for custom test creation and automation.
  Applications:

The HP/Agilent 8712ES is suitable for testing:

• Filters
• Amplifiers
• Antennas
• Cables

Ensures high accuracy and reliability for RF system development, manufacturing, and maintenance.
