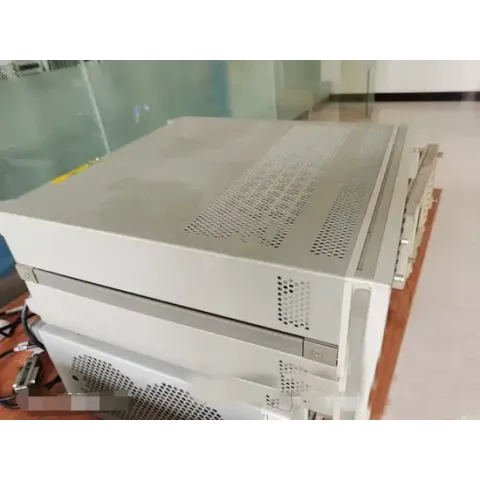

Agilent E5100B - High-Speed Network Analyzer

Agilent E5100B is designed for high-speed measurements in the frequency range from 10 kHz to 300 MHz.

Main Features:

• Frequency Range: 10 kHz – 300 MHz.
• Measurement Speed: Up to 0.04 ms per point at a 30 kHz IF bandwidth.
• Dynamic Range: Up to 120 dB at a 1 kHz IF bandwidth.
• Measurement Parameters:
  • Gain (amplitude ratio)
  • Phase
  • Group delay
  • Amplitude
  • Gain-phase
  • Gain-delay
• Intermediate Frequency (IF) Bandwidth: From 10 Hz to 30 kHz, selectable with 7 steps per decade (1, 1.5, 2, 3, 4, 5, 8).
• Display: 6.5-inch color LCD screen.
• Programming: Supports Instrument BASIC for automation of measurements.
• Data Storage: Built-in floppy disk drive and non-volatile memory for saving results and settings.



Agilent E5100B is ideal for use on production lines for electronic components such as resonators and filters, requiring high throughput and measurement accuracy.
