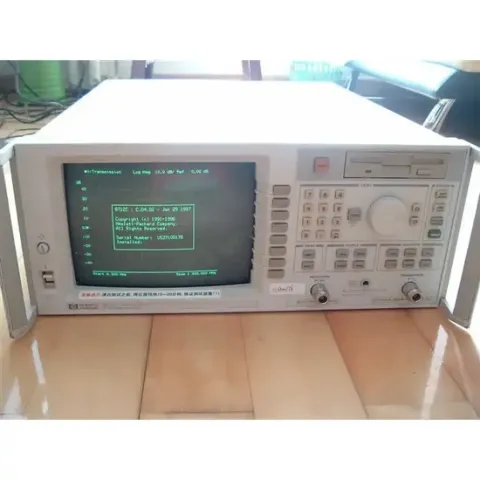

Agilent 8713C - Network Analyzer

Agilent 8713C Network Analyzer is designed for fast and accurate testing of RF components in the frequency range of 300 kHz to 3 GHz.

Main Features:

• Frequency Range: 300 kHz – 3 GHz.
• Frequency Resolution: 1 Hz.
• Dynamic Range: Over 100 dB.
• Sweep Speed: 50 ms/sweep.
• Output Power: -5 to +10 dBm.
• Built-in Test Set: Transmission/Reflection.
• Display: Monochrome.
• Interfaces: HP-IB, RS232, Centronics, VGA.



Features:

• Measurement of transmission and reflection parameters, including transmission coefficients, return loss, VSWR, and power.
• Two independent channels for simultaneous display of measurements, such as reflection and delay, in various formats, including complex impedance, VSWR, on rectangular, polar, or Smith charts.
• Capability to measure insertion and return loss, gain, conversion loss, power, or VSWR.
• Built-in 3.5-inch disk drive (LIF/DOS formats) for saving and loading data.
• Optional features include amplitude delay (AM delay) measurements and structural return loss (SRL) testing for cables.



The Agilent 8713C combines a synthesized source, transmission/reflection test set, multi-mode receivers, and a display into a single compact package, making it an optimal solution for production measurements of transmission and reflection parameters.
