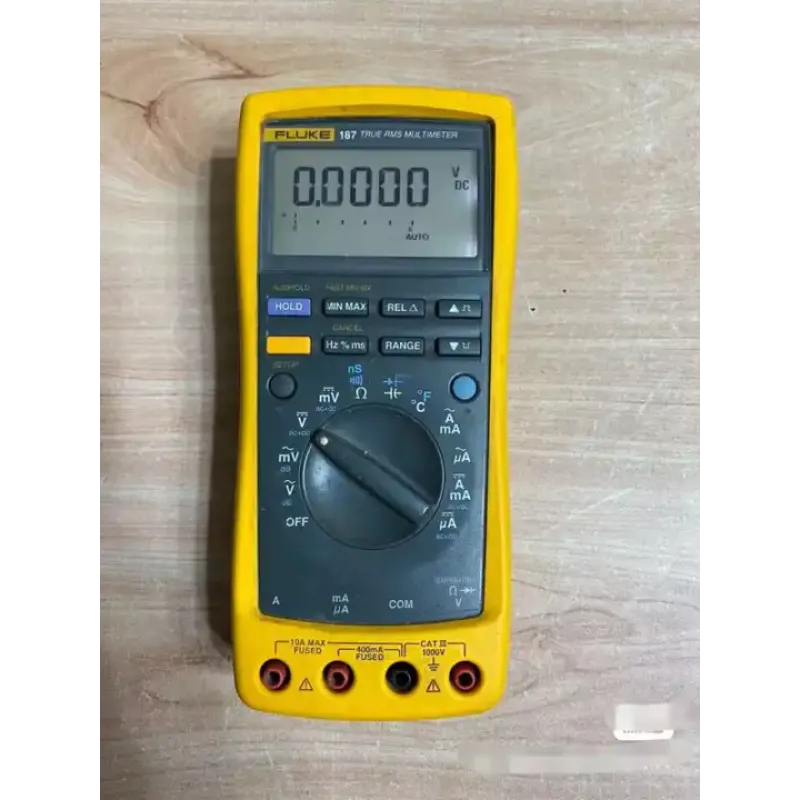

Fluke 187 - Industrial Digital Multimeter

Fluke 187 is an industrial digital multimeter with True RMS, designed for precise measurements in various fields of electronics and electrical engineering.

Main Specifications:

• DC Voltage Measurement Range: from 0 to 1000 V.
• AC Voltage Measurement Range: from 2.5 mV to 1000 V with a bandwidth up to 100 kHz.
• DC Current Measurement Range: from 0 to 10 A (up to 20 A for 30 seconds).
• AC Current Measurement Range: from 25 μA to 10 A (up to 20 A for 30 seconds).
• Resistance Measurement: from 0 to 500 MΩ.
• Conductance Measurement: up to 500 nS.
• Capacitance Measurement: from 0.001 nF to 50 mF.
• Frequency Measurement: from 0.5 Hz to 1000 kHz.
• Temperature Measurement: from -200°C to 1350°C (using the appropriate thermocouple).
• DC Voltage Measurement Accuracy: ±0.025%.
• Display: primary display with 50,000 counts and secondary display with 5,000 counts.
• Features: logging of minimum, maximum, and average values with time stamps, data hold function, auto-ranging, analog bar graph, and dual-level display backlight.
• Communication Interfaces: RS-232 port for PC connection (additional adapter required).



Applications:

Fluke 187 is suitable for use in laboratories, production lines, and field environments, offering high accuracy and reliability in measurements.
