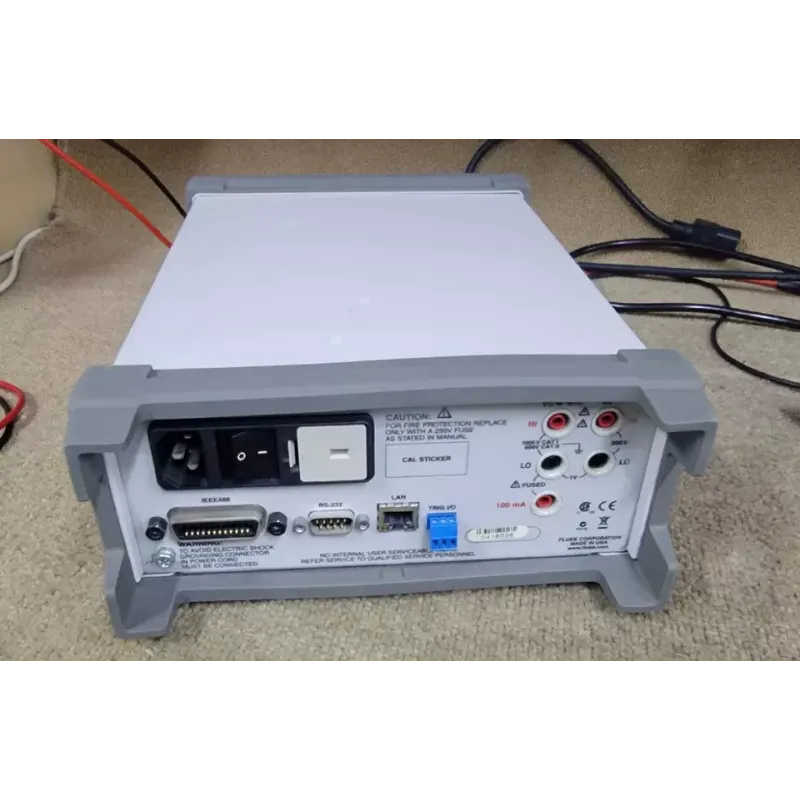

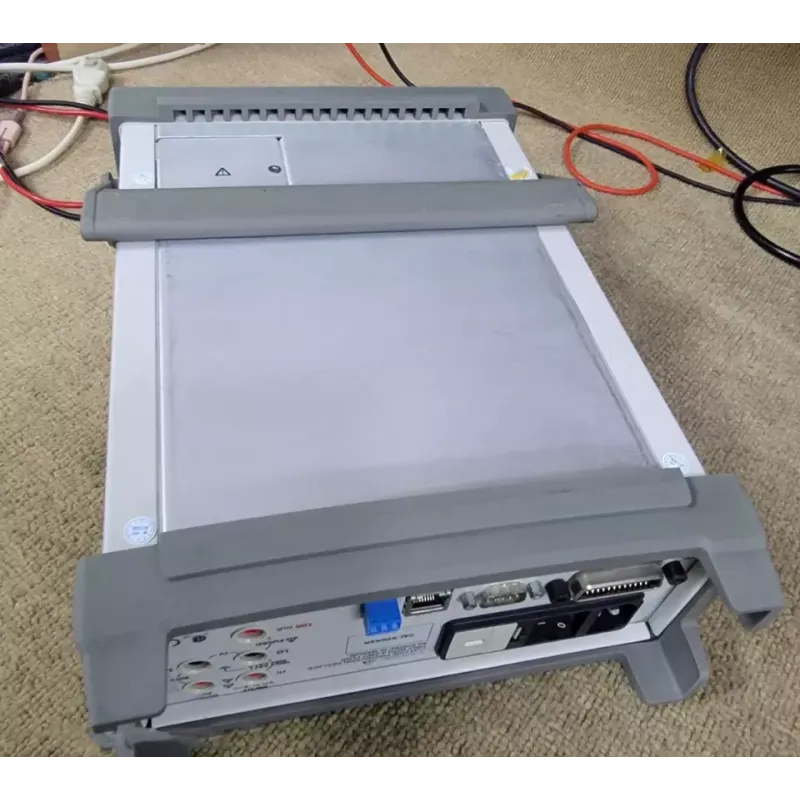

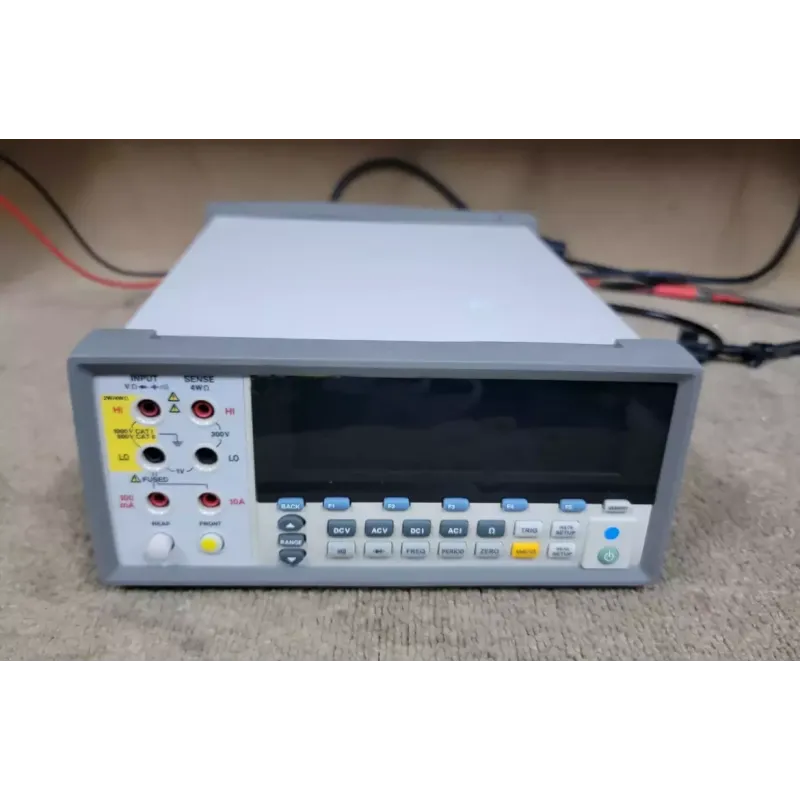

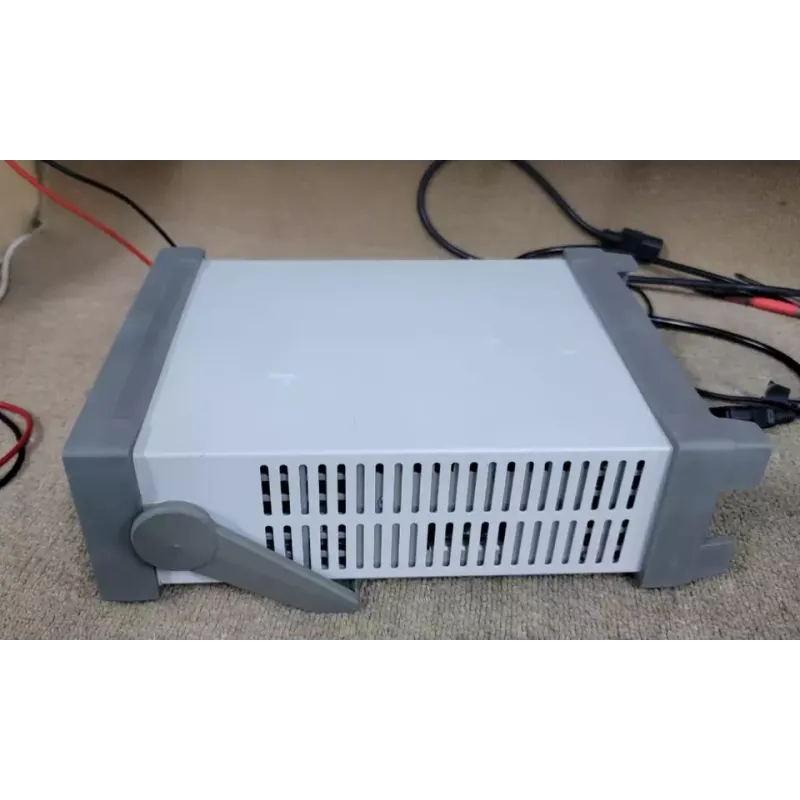

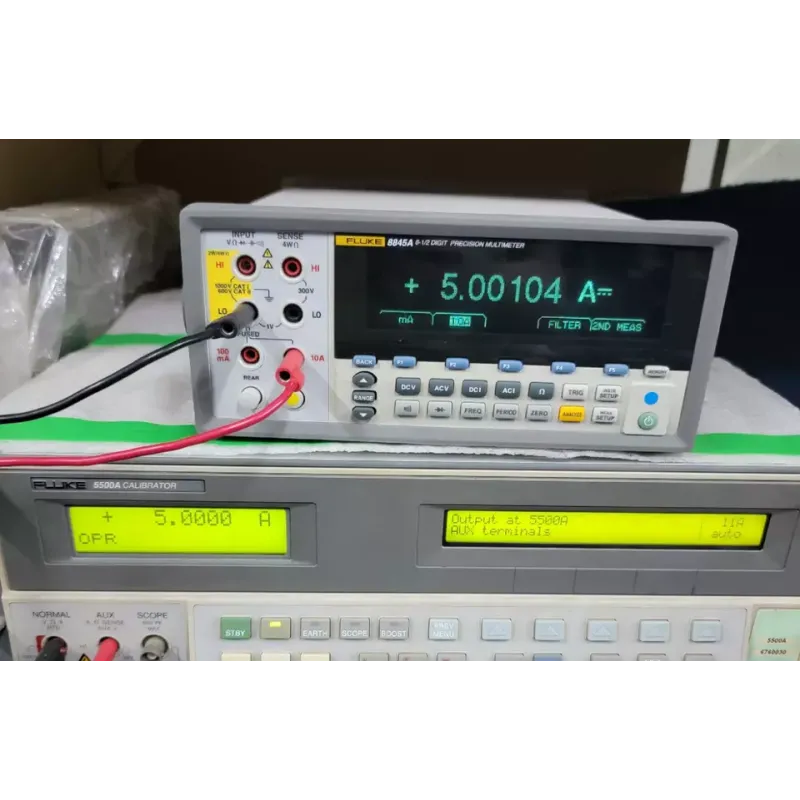

Fluke 8845A 6.5-Digit Precision Multimeter

Fluke 8845A is a high-precision 6.5-digit digital multimeter designed for use on a benchtop or as part of measurement systems. It provides accurate measurements and offers a wide range of features, making it suitable for various applications in electronics and electrical engineering.

Main Specifications:

• Resolution: 6.5 digits
• Basic DC voltage accuracy: up to 0.0024%
• Current measurement range: from 100 µA to 10 A with resolution up to 100 pA
• Resistance measurement range: from 10 Ω to 1 GΩ with resolution up to 10 µΩ
• Dual display: allows simultaneous display of two different parameters of the same signal
• Frequency and period measurement: frequency range from 3 Hz to 300 kHz
• Graphical display modes: include TrendPlot™ (paperless recorder), statistics, and histograms for data analysis
• Safety: complies with CAT I 1000 V and CAT II 600 V standards

Features:

• 2×4-wire resistance measurement method: ensures more accurate measurements by minimizing lead resistance effects
• Fluke 45 and Agilent 34401A emulation: facilitates integration into existing systems, replacing outdated models without the need for software changes
• Graphical display: enables visualization of data as trends, histograms, and statistical charts for easier analysis
