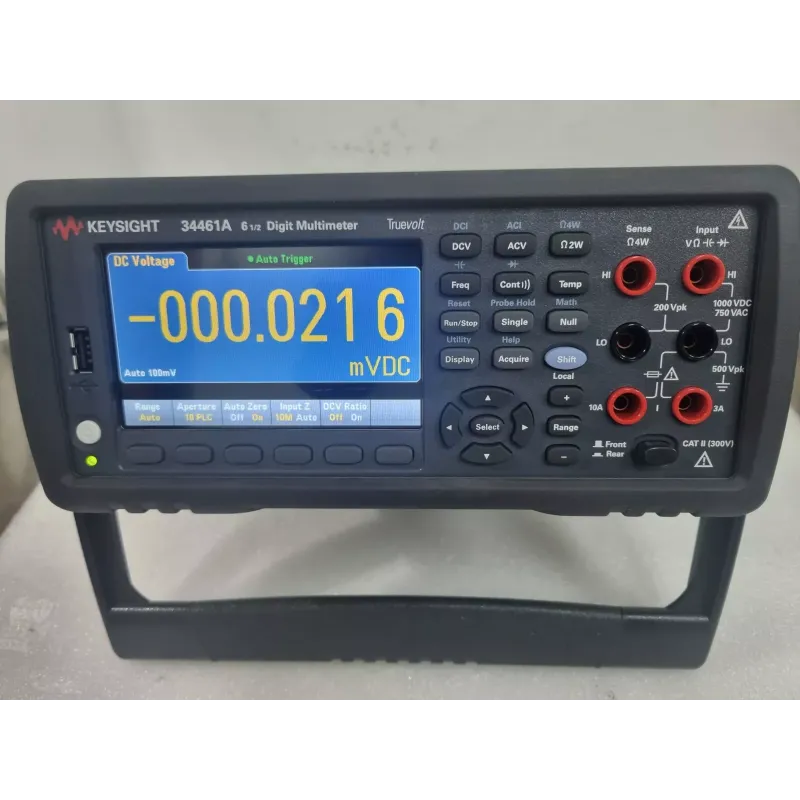

Keysight 34461A Digital Multimeter

The Keysight 34461A digital multimeter is a high-precision instrument with 6½-digit resolution, designed for measuring various electrical parameters. It is part of the Truevolt series and offers enhanced capabilities compared to previous models, such as the 34401A.

Main Specifications:

• Measured parameters:
  • DC voltage: from 100 mV to 1000 V
  • AC voltage: from 100 mV to 750 V
  • DC current: from 100 μA to 10 A
  • AC current: from 100 μA to 10 A
  • Resistance: from 100 Ω to 100 MΩ
  • Capacitance: from 1 nF to 100 μF
  • Frequency: from 3 Hz to 300 kHz
  • Temperature: using resistance thermometers, platinum sensors, and thermistors
• Measurement accuracy:
  • DC voltage: basic relative error 0.0035%
  • AC voltage: basic relative error 0.06%
• Display:
  • Color graphical display with a 4.3-inch (11 cm) diagonal
  • Ability to display analog scales, histograms, statistical data, and trend charts
• Interfaces: USB, LAN/LXI, GPIB (optional)

Features:

• Truevolt technology: Ensures high measurement accuracy by minimizing external factors like noise and induced currents.
• Compatibility: Full software and functional compatibility with the 34401A model, simplifying the transition for users of previous versions.
• Additional features:
  • Diode testing with a scale limit up to 5 V, enabling testing of various types of diodes, including LEDs.
  • Continuity check function.
• Memory: Ability to save up to 10,000 measurement results.
• Dimensions and weight:
  • Dimensions: 261.2 × 103.8 × 303.2 mm
  • Weight: 3.68 kg

Applications:

The Keysight 34461A multimeter is ideal for use in laboratories, production lines, and other areas requiring high measurement accuracy and reliability. Its advanced features and user-friendly interface make it an effective tool for engineers and technical specialists.
